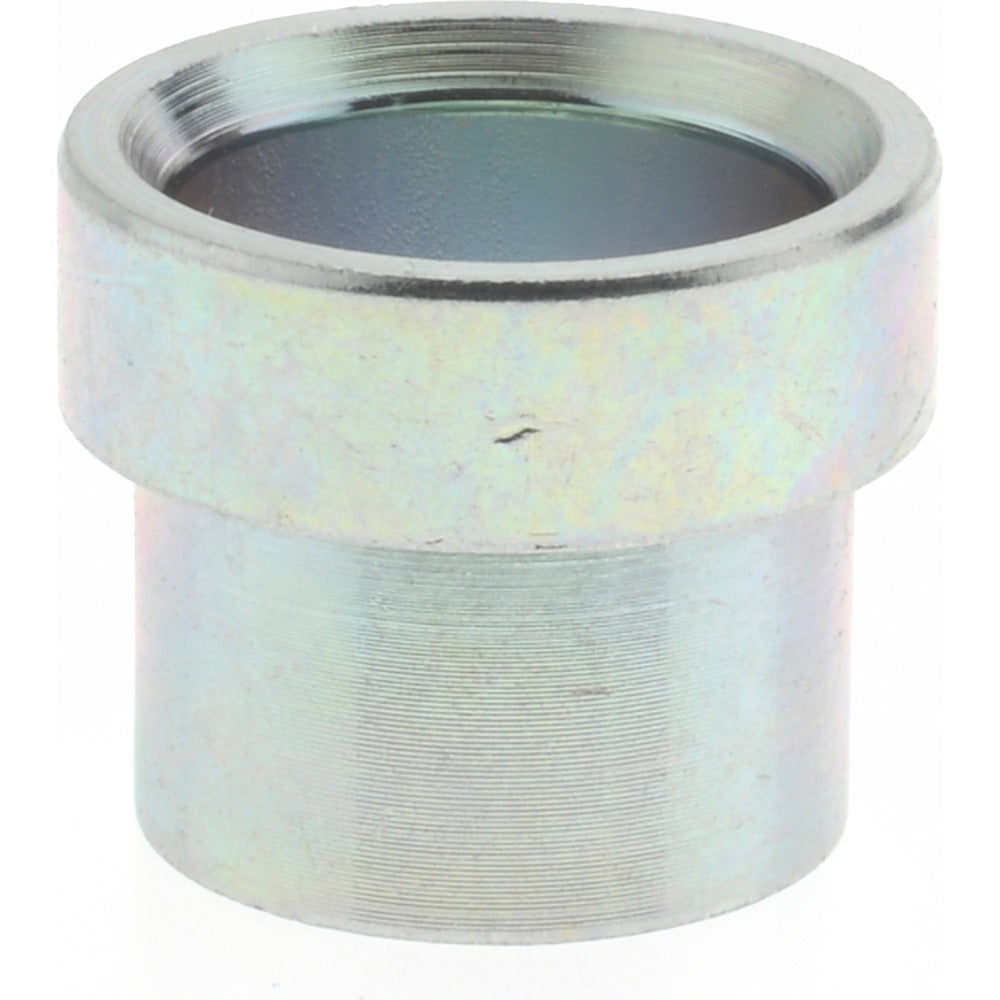

Eaton 900605-8S Steel Flared Tube Sleeve 1/2 Inch Od

Product Description

The EATON 900605-8S is a 3-piece steel flared tube sleeve designed for use in hydraulic and fluid system tubing connections. This fitting accepts tubing with a 1/2 inch outside diameter and forms a 37-degree flare angle connection at both ends. The sleeve measures 0.56 inches in overall length and features an inside diameter of 0.50 inches. It is manufactured to SAE 070115 standards, making it suitable for demanding fluid power and instrumentation applications where a reliable, leak-free flare connection is required. Licensed plumbers, pipefitters, and hydraulic system technicians are the primary installers of this type of fitting.

This sleeve is used in hydraulic tubing assemblies, fluid transfer lines, and instrumentation plumbing where 37-degree JIC-style flare connections are specified. It is appropriate for both industrial and mobile equipment applications. The 3-piece sleeve design supports consistent flare formation on the tubing end during assembly. This fitting is sold individually per package, with a minimum order quantity of 5 units.

Key Features

• 37-degree flare angle conforms to SAE 070115 standards for hydraulic and fluid system fittings
• 1/2 inch tube OD with 0.50 inch inside diameter for precise tubing fit
• 0.56 inch overall length in a compact 3-piece sleeve configuration
• Steel construction provides durability in high-pressure fluid system environments
• Flare end connection type on both ends for secure, leak-resistant joints

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power tubing systems using 37-degree flare connections with 1/2 inch OD tubing.

Installation Notes

Installation of flared tube fittings should be performed by a qualified pipefitter, plumber, or hydraulic technician. Always depressurize and drain the fluid system completely before removing or installing any fittings. Use appropriate flaring tools rated for the tubing material and wall thickness to achieve a proper 37-degree flare seat. Verify all connections for leaks after system pressurization per applicable codes and system specifications.
