Eaton 900605-16S Steel Flared Tube Sleeve 1 in Od 37 Deg

Product Description

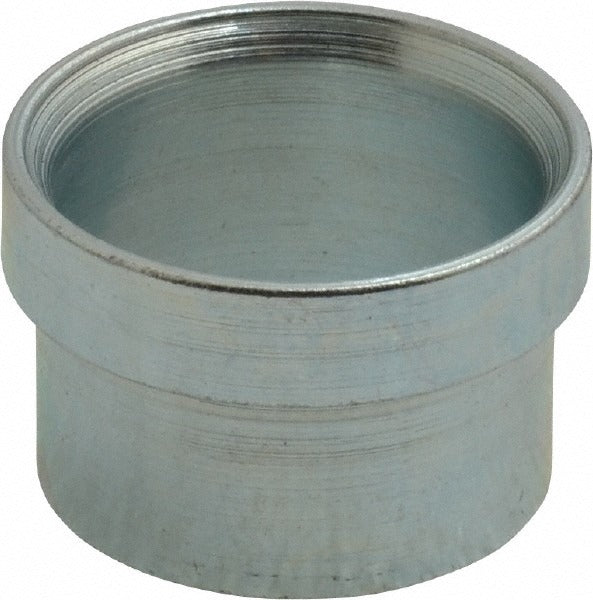

The EATON 900605-16S is a 3-piece steel flared tube sleeve designed for use in hydraulic and fluid system tubing connections. It mates with a 1-inch tube outside diameter and features a 37-degree flare angle, conforming to SAE 070115 standards. The sleeve compresses against the tube during assembly to create a secure, leak-resistant flared joint. At 0.78 inches overall length and 0.05 pounds, this compact fitting is a standard component in hard-line tubing assemblies. Hydraulic technicians, plumbers, and fluid-power mechanics working with steel tubing lines install this part as a core element of a 3-piece flare fitting assembly.

This sleeve is suited for steel tubing connections in hydraulic systems, fuel lines, and other fluid-carrying hard-line applications that require a 37-degree JIC-style flare end connection. It is used in both industrial and mobile equipment environments where SAE 070115-compliant fittings are specified. The 3-piece sleeve design allows the fitting to be assembled and disassembled without damaging the tube, making it appropriate for service and maintenance work as well as new installations.

Key Features

• 37-degree flare angle meets SAE 070115 standard for reliable, leak-resistant connections
• 1-inch tube outside diameter sizing for compatibility with standard hard-line tubing
• 3-piece sleeve construction allows field assembly and reuse
• Steel construction provides strength and durability in demanding fluid system environments
• Compact 0.78-inch overall length fits in tight tubing runs

Compatibility

Designed as an OEM-style replacement or service component for steel hard-line tubing assemblies requiring a 37-degree flare end connection with a 1-inch tube outside diameter, per SAE 070115 specifications.

Installation Notes

Installation is performed by hydraulic technicians or pipefitters working on steel hard-line tubing systems. Depressurize and drain the fluid system completely before disassembling any tubing connections. Use appropriate tube flaring and fitting tools rated for the tube OD and material. Follow SAE 070115 assembly procedures and applicable system pressure requirements for proper joint integrity.
