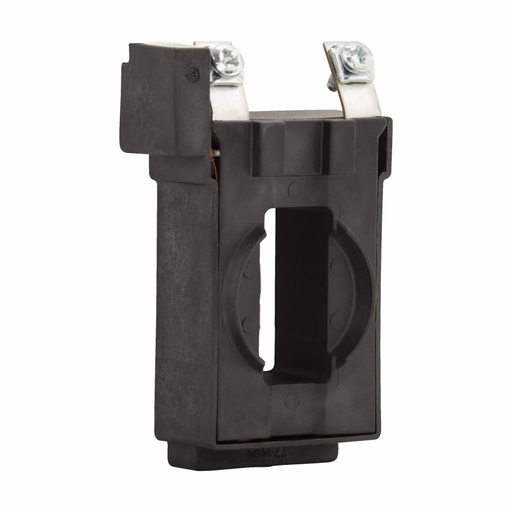

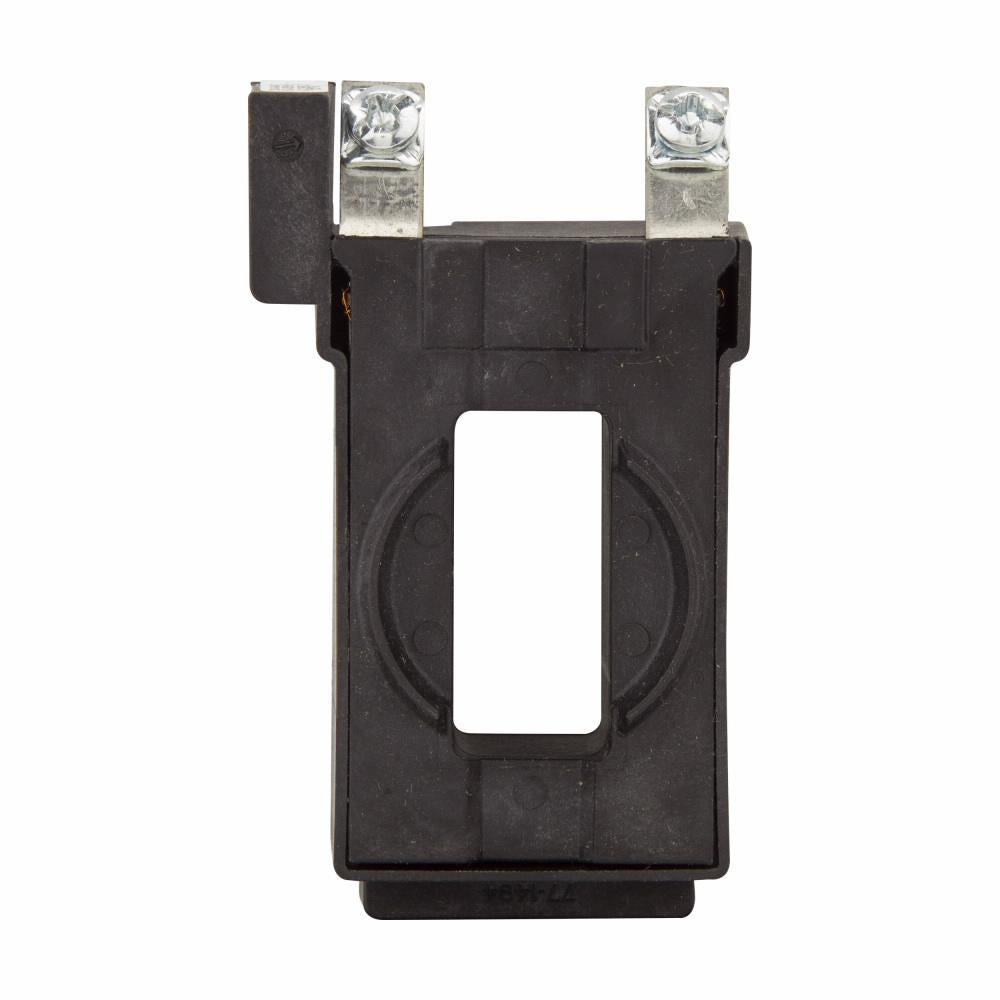

Eaton 9-3285-2 Coil Mag 65MM 220/240VAC 50/60HZ

Product Description

The Eaton 9-3285-2 coil is designed for electrical applications where reliable operation is essential. This magnetic coil operates at 220/240 volts AC and is suitable for usage within the Freedom Series contactor, starter, and motor control systems. The dimensions of the product are two inches in length, two point thirty-one inches in width, and three point twenty-five inches in height.

• Magnetic Coil Type B, A1/B1 series
• Voltage Rating: 220/240 VAC
• Frequency Rating: 50/60 Hz

Product Highlights

The Eaton 9-3285-2 magnetic coil is a key component for motor control applications. Its compact size and robust specifications make it suitable for commercial and institutional buildings.

Product Information

Standard Information

• Brand: Eaton
• MPN: 9-3285-2

Technical Specifications

• Application: Commercial / Institutional Buildings
• Dimensions: 2 in L x 2.31 in W x 3.25 in H
• Coil Voltage: 220/240 VAC
• Frequency: 50/60 Hz
• Type: Type B
• Series: A1/B1
• Size: 65 mm

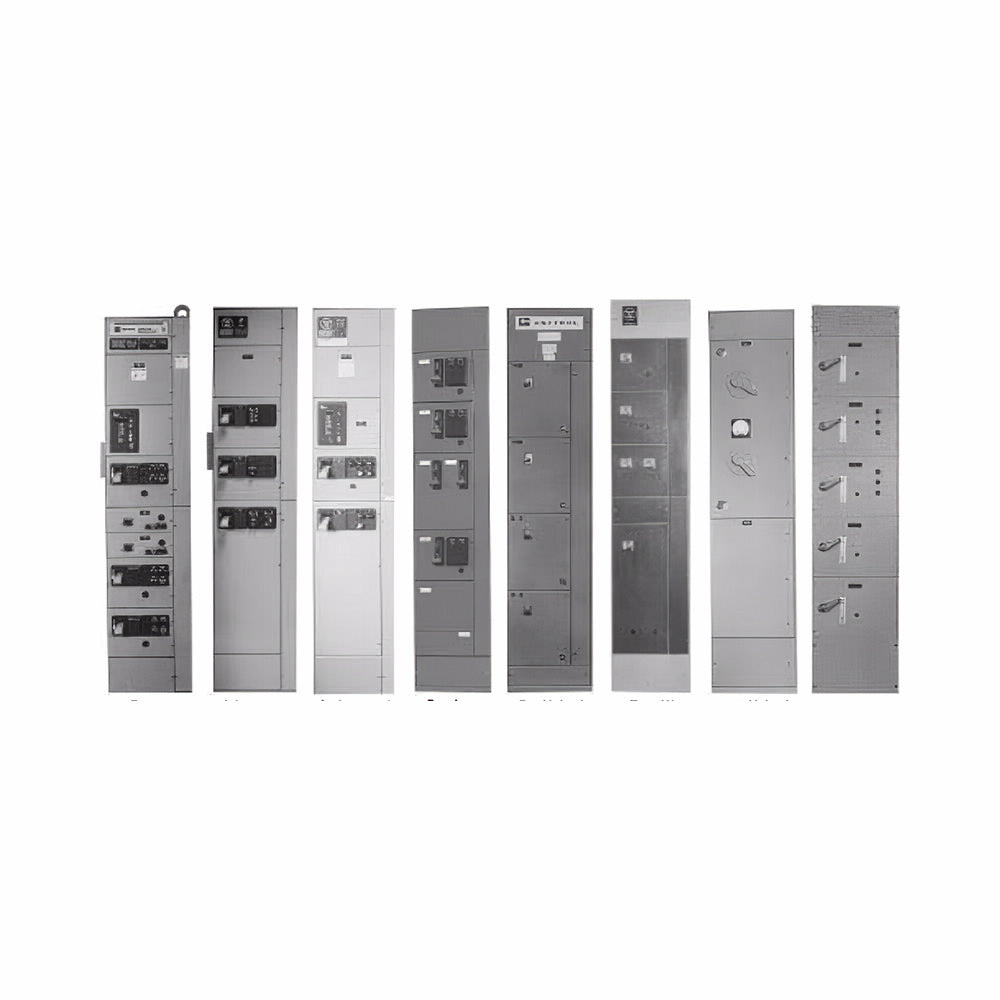

• Suitable For Use With: Freedom Series Contactor, Starter and Motor Control
