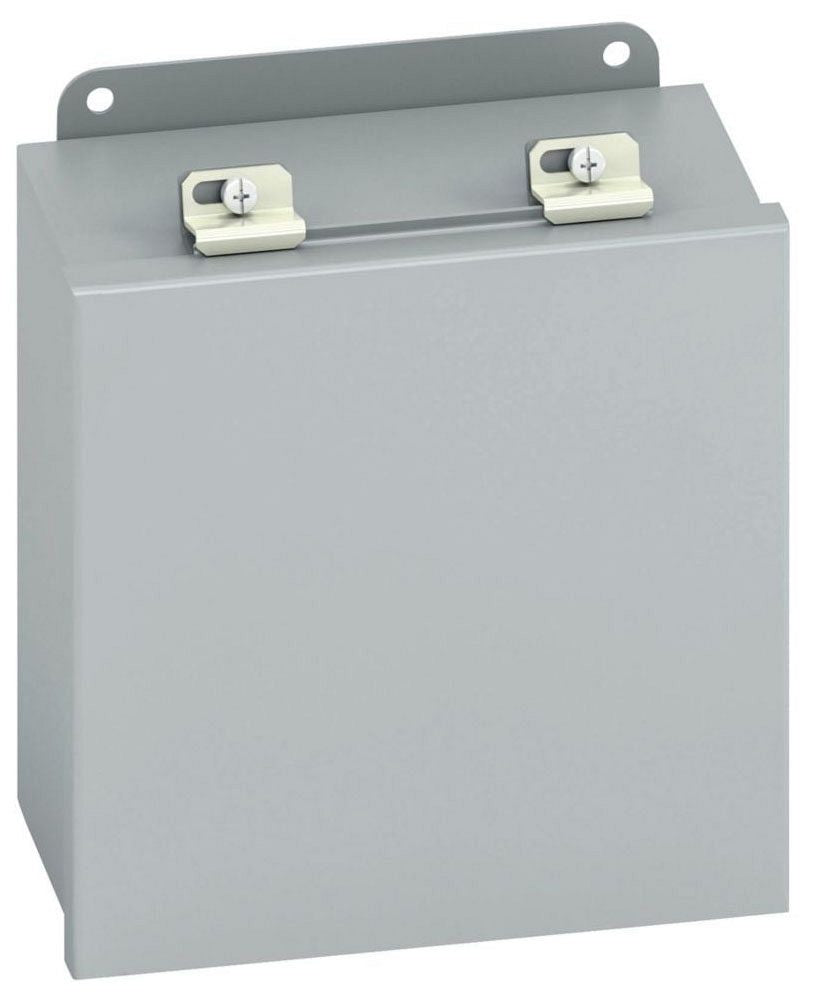

Eaton 884-12LC BLINE2 NEMA12 JIC ENCL

Product Description

The Eaton 884-12LC is a B-Line panel enclosure designed for NEMA12 applications. This enclosure provides reliable protection for various electrical components. Made from carbon steel, it features a small single door with a screw cover type. The semi-hinged closure offers easy access while maintaining secure containment.

• Robust carbon steel construction
• NEMA12 rated for dust and water protection
• UL 508A certified for safety compliance

Product Highlights

This enclosure is suitable for wall mounting and features external mounting feet for easy installation. It is painted in ANSI 61 gray for a professional finish.

Product Information

Standard Information

• Manufacturer: B-Line
• UPC: 78205170318

Technical Specifications

• Height: 8 inches
• Width: 8 inches
• Length/Depth: 4 inches
• Weight: 5.7 pounds
• Wall Thickness: 16 gauge
• Country of Origin: US
• Mounting Method: Wall
• Special Features: Jack chain, panel mount provisions, plated door clamp
