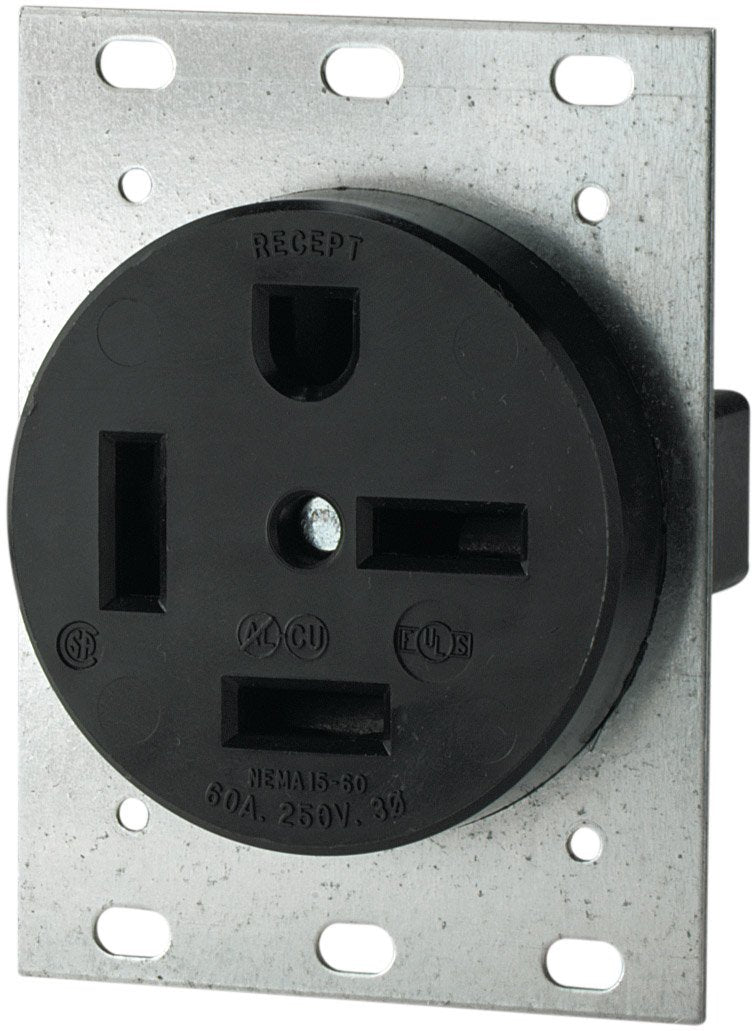

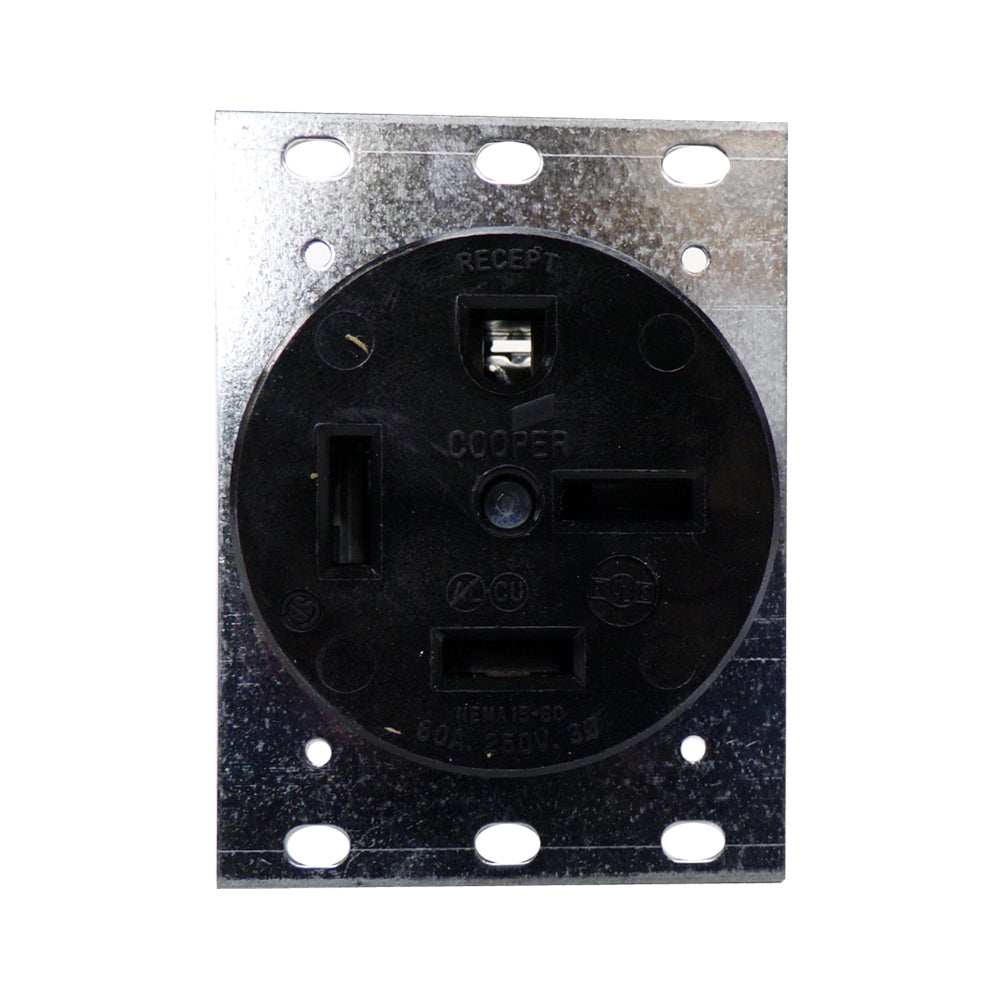

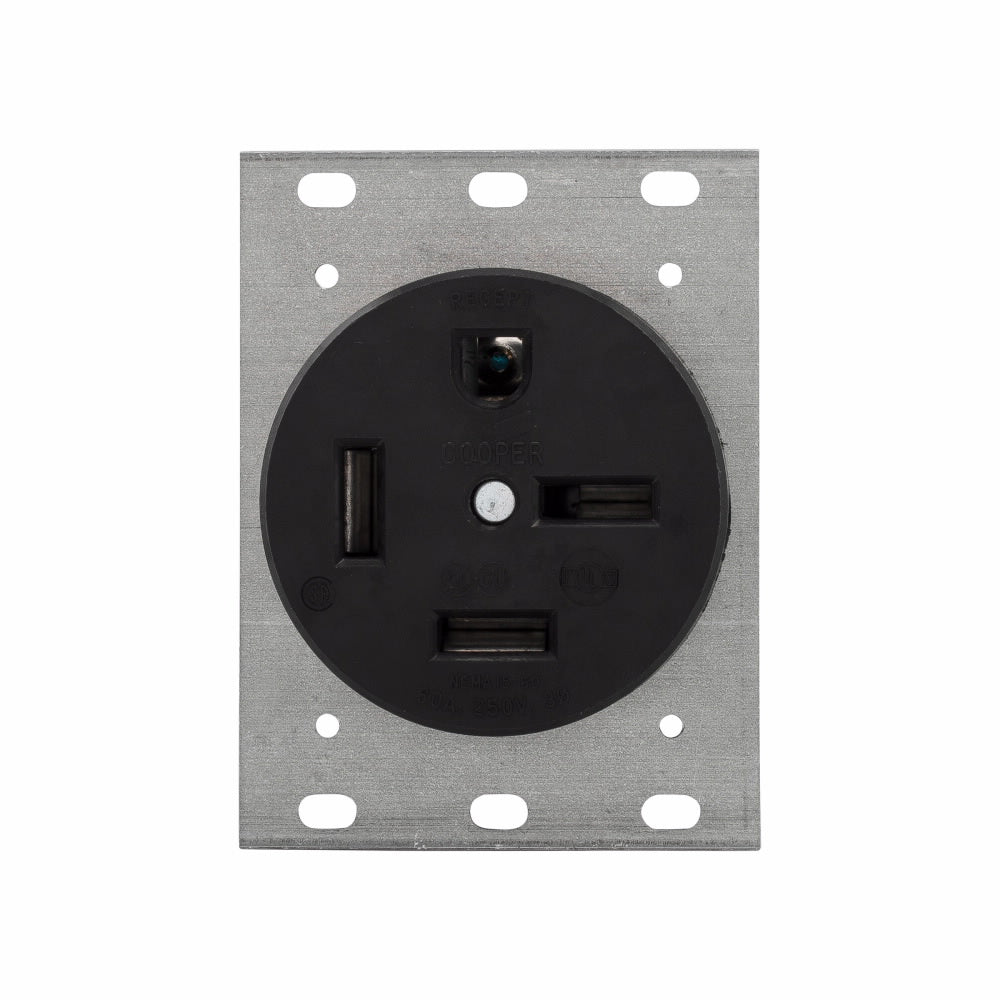

Eaton 8460N 60 Amp 250V 15-60 3-Pole/4-Wire Power Receptacle

Product Description

The Eaton 8460N 60-Amp 250-volt 15-60 3-pole/4-Wire power receptacle features a heavy-duty design suitable for high amperage industrial or commercial power connectivity applications. Constructed with a heavy gauge galvanized Steel mounting strap and glass-reinforced nylon body. This receptacle supports 3-phase power and flush mounting.

• Flush receptacles feature heavy gauge galvanized Steel mounting strap and glass-reinforced nylon body
• Power receptacle 60A 3o 250V NEMA 15-60 3-pole/4-Wire - 8460N
• Durable design that will last.

Product Highlights

Eaton's 8460N power receptacle is designed for robust power connectivity in demanding environments, ensuring long-lasting performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 8460N

Technical Specifications

• Amperage: 60 Amp
• Voltage: 250V
• Poles: 3-Pole
• Wires: 4-Wire
• NEMA Configuration: 15-60
• Outlet Material: Thermoplastic
• Total Power Outlets: 1
• Amperage Rating: 60 A
• Application: Non-Residential Applications
• Color: Black
• Grade: Commercial/Hospital
• Manufacturer Part Number: 8460N
• Material: Glass filled nylon
• NEMA Rating: NEMA 15-60R
• Number of Poles: 3
• Number of Wires: 4
• Standards/Approvals: UL Listed
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Screw
• Type: 3-Phase Premium Single
• Voltage Rating: 250 VAC
• Product Length/Depth: 3.25 in
• Product Height: 2.38 in
• Product Width: 2.94 in
• Compliances: RoHS Compliant
• Certifications: cULus Listed, CSA Certified, Federal Specification Classification 6233 01
• Product Type: Power device receptacle
• Wiring method: Back and side
• Mounting method: Flush
• Phase: Three-phase
• Connection type: Screw
• Style: Power
• Allowable wire size: #14-10 AWG
• Torque rating: 25 lbf-inch
• Design type: Receptacle
• Receptacle type: Three-pole, four-wire, grounding
• Specification Met: NEMA
• Model: 8460N
• Manufacturer-Brand: Cooper Wiring Devices
