Eaton 8452N plug 50 A

Product Description

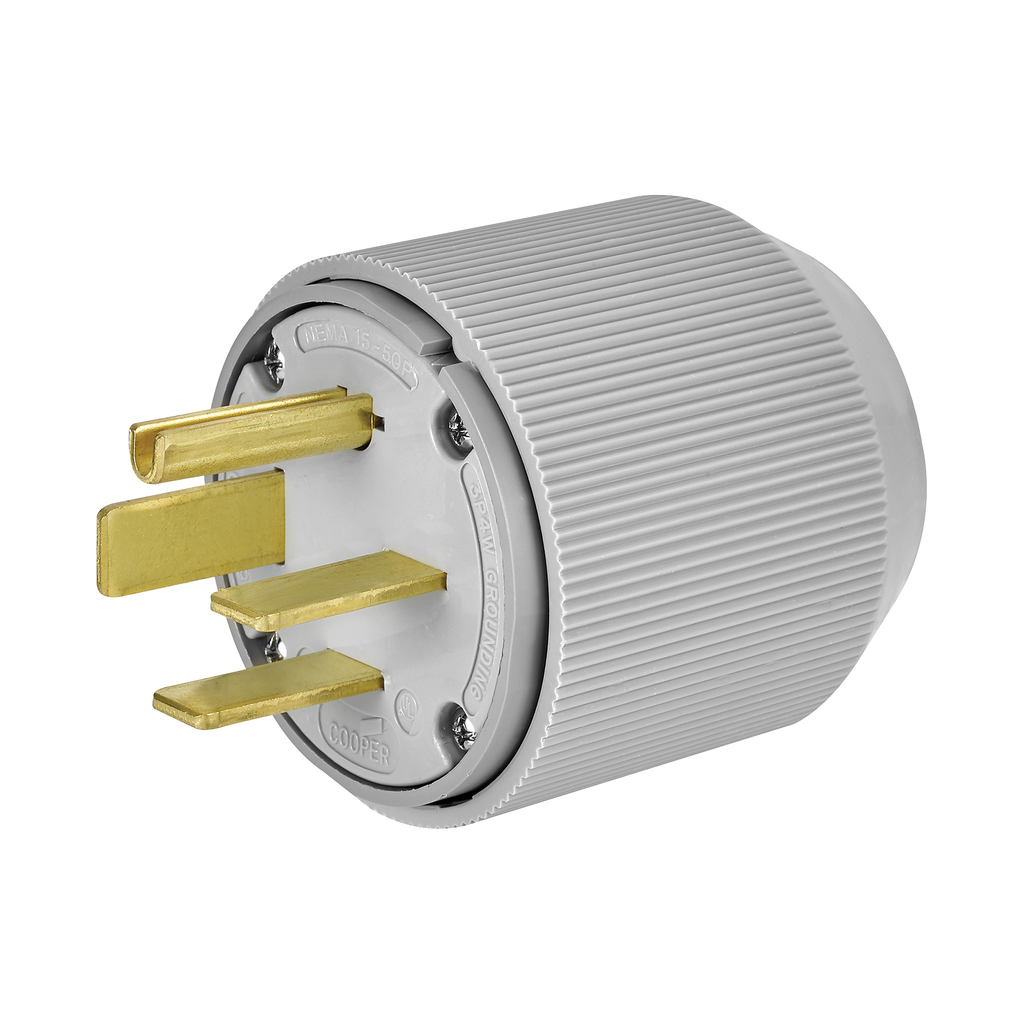

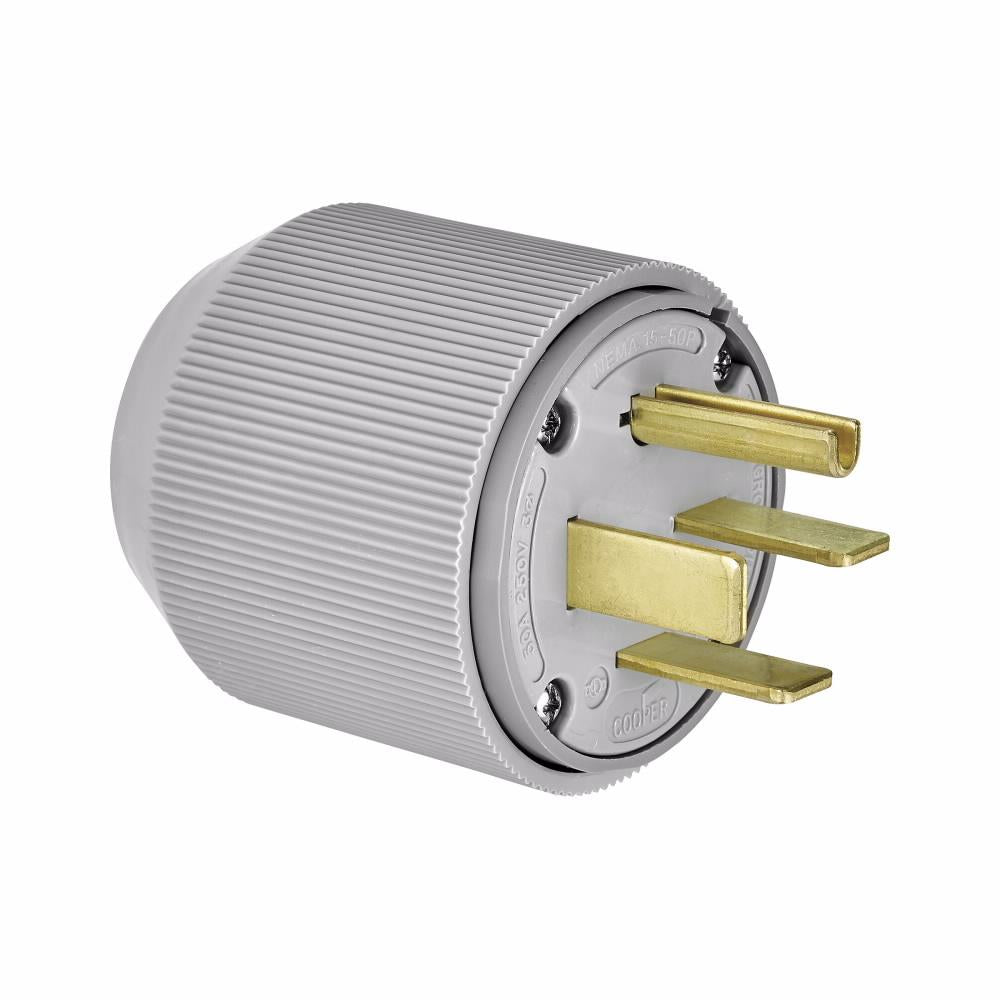

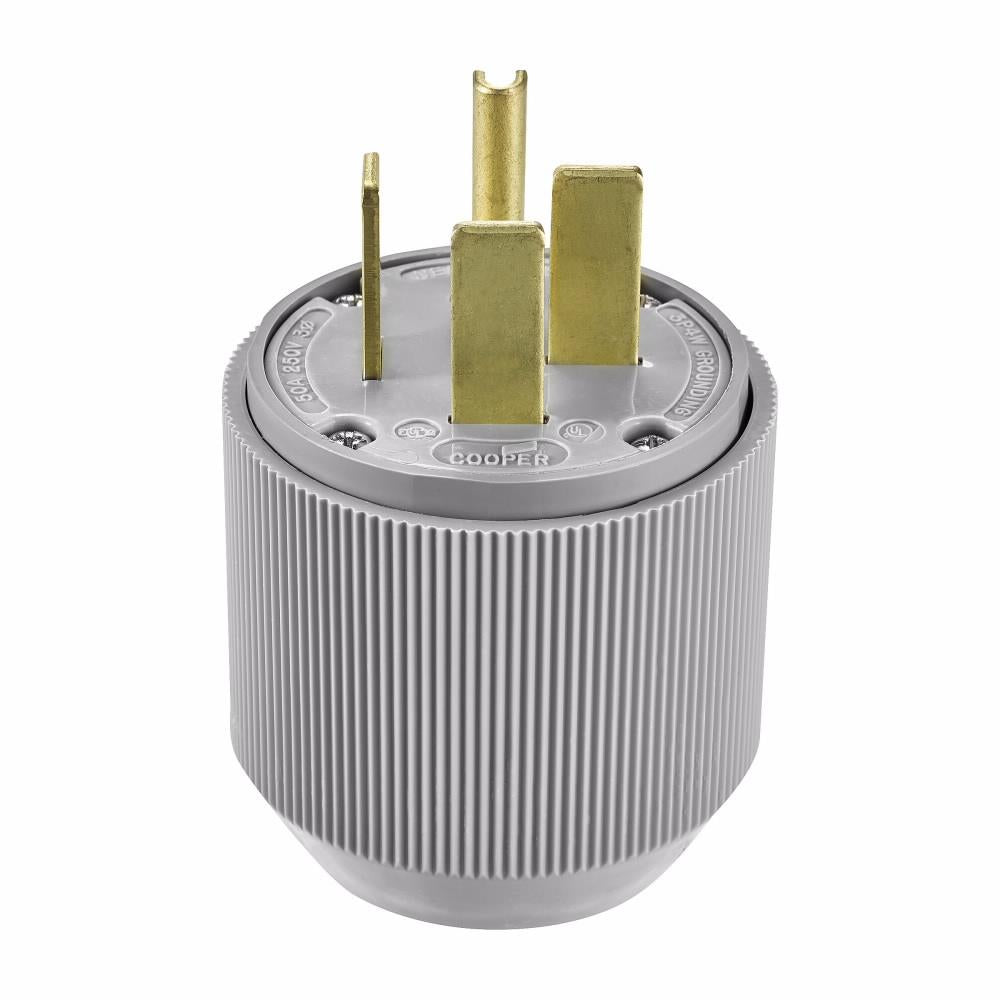

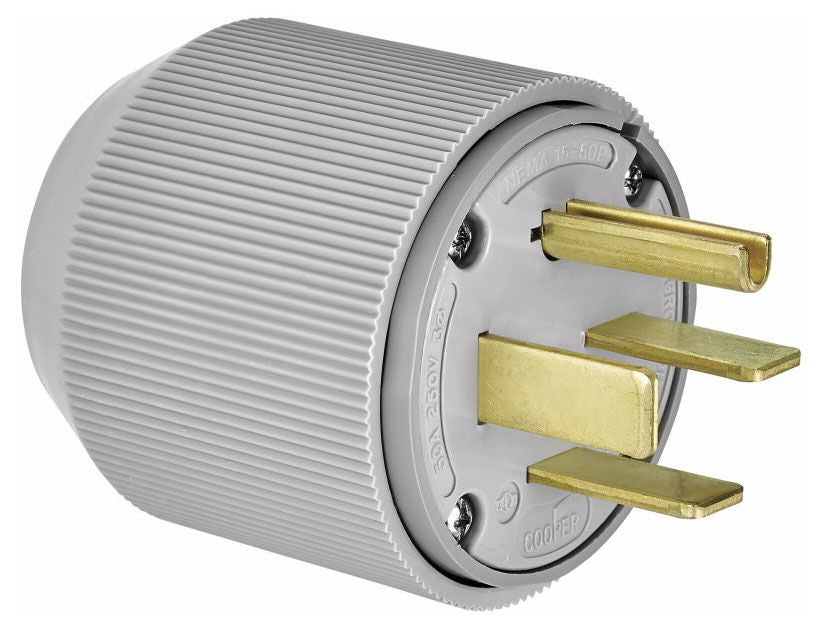

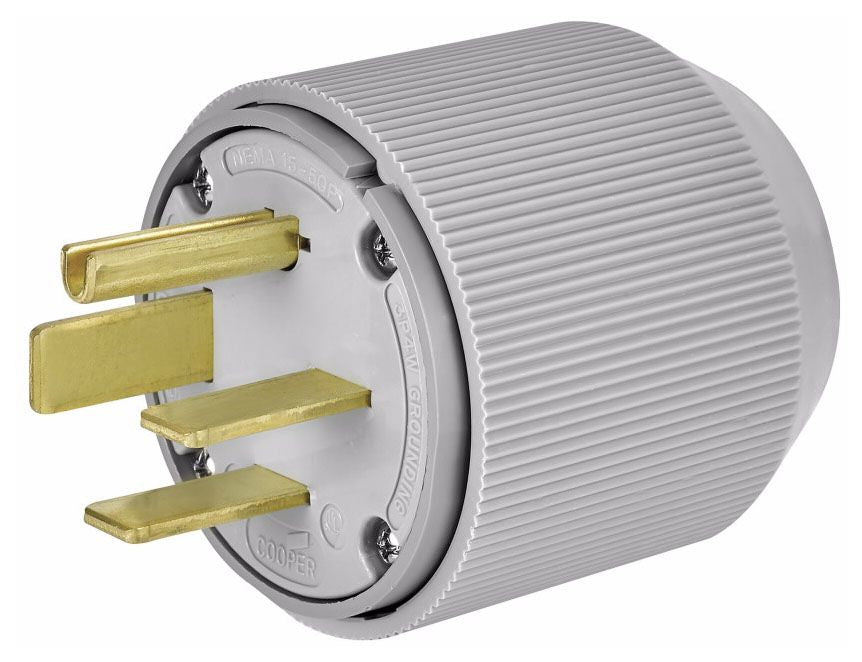

The EATON 8452N is an industrial power plug rated at 50 A, designed for 3-phase 250 VAC systems. Constructed for heavy-duty use, this Arrow Hart power device is suitable for high-amperage industrial and commercial power connectivity applications. It features a thermoplastic body and threaded terminals.

• Rugged high-strength construction
• Terminals have pressure plates to protect wires
• Neoprene gasket seals around cord for added terminal protection from external elements

Product Highlights

This 3-pole, 4-wire plug has a NEMA 15-50P rating and accommodates cord diameters from 0.425 to 1.31 inches.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 8452N
• Country of Origin: MEX

Technical Specifications

• Cord Diameter: 0.425 to 1.31 in
• Grade: Commercial/Industrial
• Material: Thermoplastic
• NEMA Rating: NEMA 15-50P
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Threaded
• Type: Straight
• Voltage Rating: 250 VAC
• Amperage Rating: 50 A
• Number of Poles: 3
• Number of Wires: 4
• Wiring: Back wire
• Configuration: 15-50P
• Current Rating: 50 Ampere
• Ground Type: Grounding
• Application: Industrial
• Wire Size: 18 to 12 AWG
• Wiring Type: Back
• Flammability Rating: UL 94 V-2
• Product Length/Depth: 3.12 in
• Product Height: 3.81 in
• Product Width: 3.12 in
• Certifications: UL NOM Federal Specification Classification 6221 02
• Product Type: Extra heavy-duty auto grip plug
• Device type: Plug
• Contact material: Brass
• Device grade: Extra heavy-duty industrial specification grade
• Style type: Power, Straight body
• Connection type: Screw
• Design type: Straight blade
• Face/body material: Nylon
• Receptacle type: Three-pole, four-wire, grounding
