Eaton 8450N Power Device Receptacle 50A 250V NEMA 15-50R

Product Description

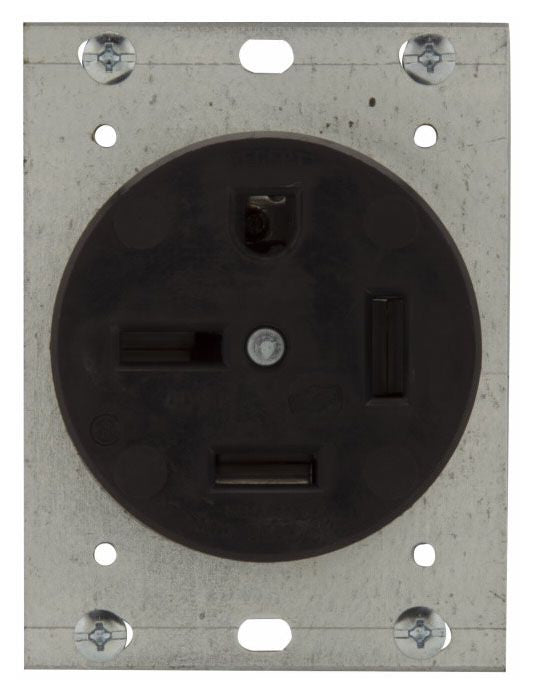

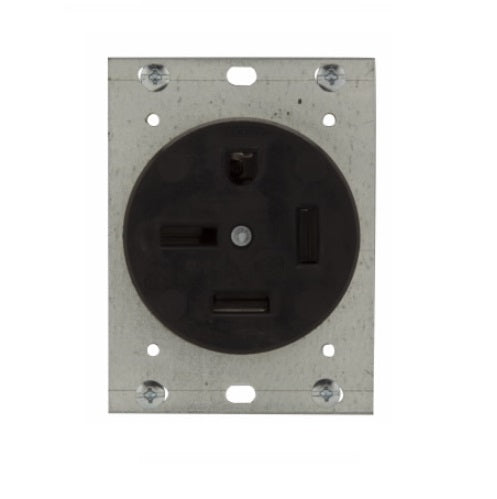

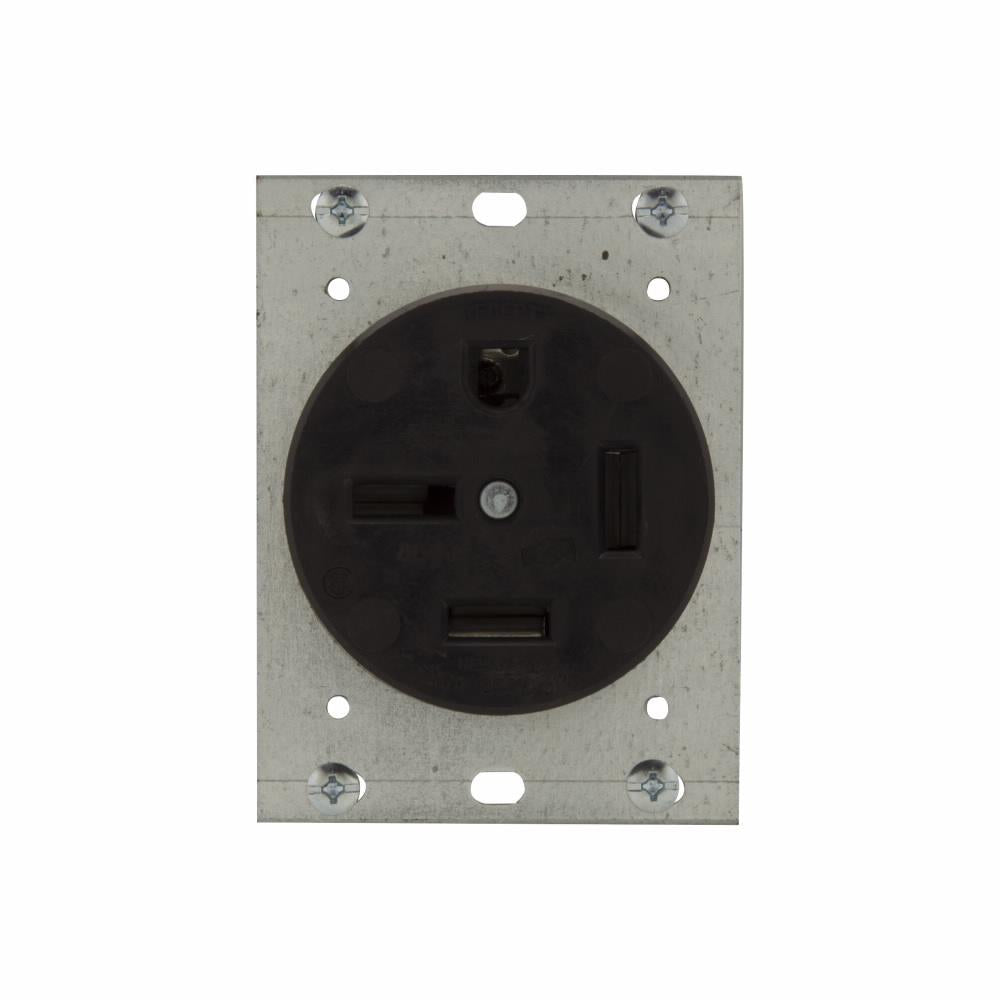

The EATON 8450N is a power device receptacle designed for high amperage industrial or commercial power applications. Rated at 50A and 250V, this 3-pole, 4-wire receptacle features a NEMA 15-50R configuration. Constructed with a glass-filled nylon body and a heavy gauge galvanized steel mounting strap, it ensures durability and corrosion resistance.

• Heavy-duty design for industrial and commercial use.
• Features nylon insulation and panel mounting.
• Accepts #14 to 10 AWG wire with screw terminal connection.

Product Highlights

Durable power receptacle ideal for high-amperage applications, ensuring reliable power connectivity.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 8450N
• Country of Origin: MEX

Technical Specifications

• Grade: Commercial/Hospital
• Material: Glass Filled Nylon
• NEMA Rating: NEMA 15-50R
• Terminal Type: Screw
• Voltage Rating: 250 VAC
• Amperage Rating: 50 A
• Number of Poles: 3
• Number of Wires: 4
• Application: Non-Residential Applications
• Standards/Approvals: UL Listed
• Mount: Flush
• Wiring: Back And Side
• Product Type: Power Device Receptacle
• Compliances: RoHS Compliant
• Certifications: cULus Listed CSA Certified Federal Specification Classification 6233 01
• Allowable wire size: #14-10 AWG
• NEMA configuration: 15-50R
• Torque rating: 25 lbf-inch
• Design type: Receptacle
• Receptacle type: Three-pole, four-wire, grounding
• Connector Style: NEMA 15-50R
• Connector Type: Receptacle, Female Sockets
• Current Rating (Amps): 50A
• Number of Positions: 4
• Mounting Type: Panel Mount, Flange
• Termination: Screw
• AWG: 14-10
