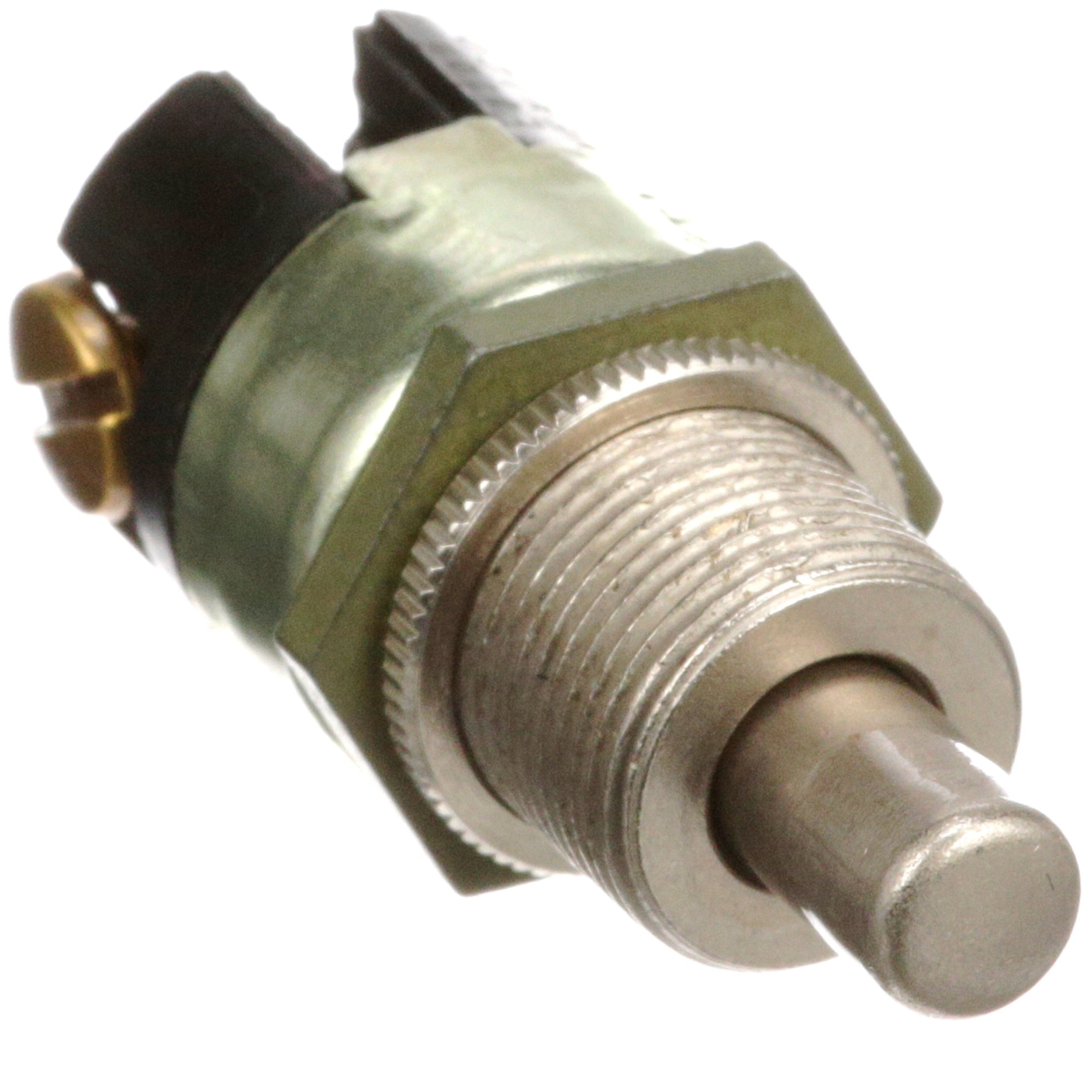

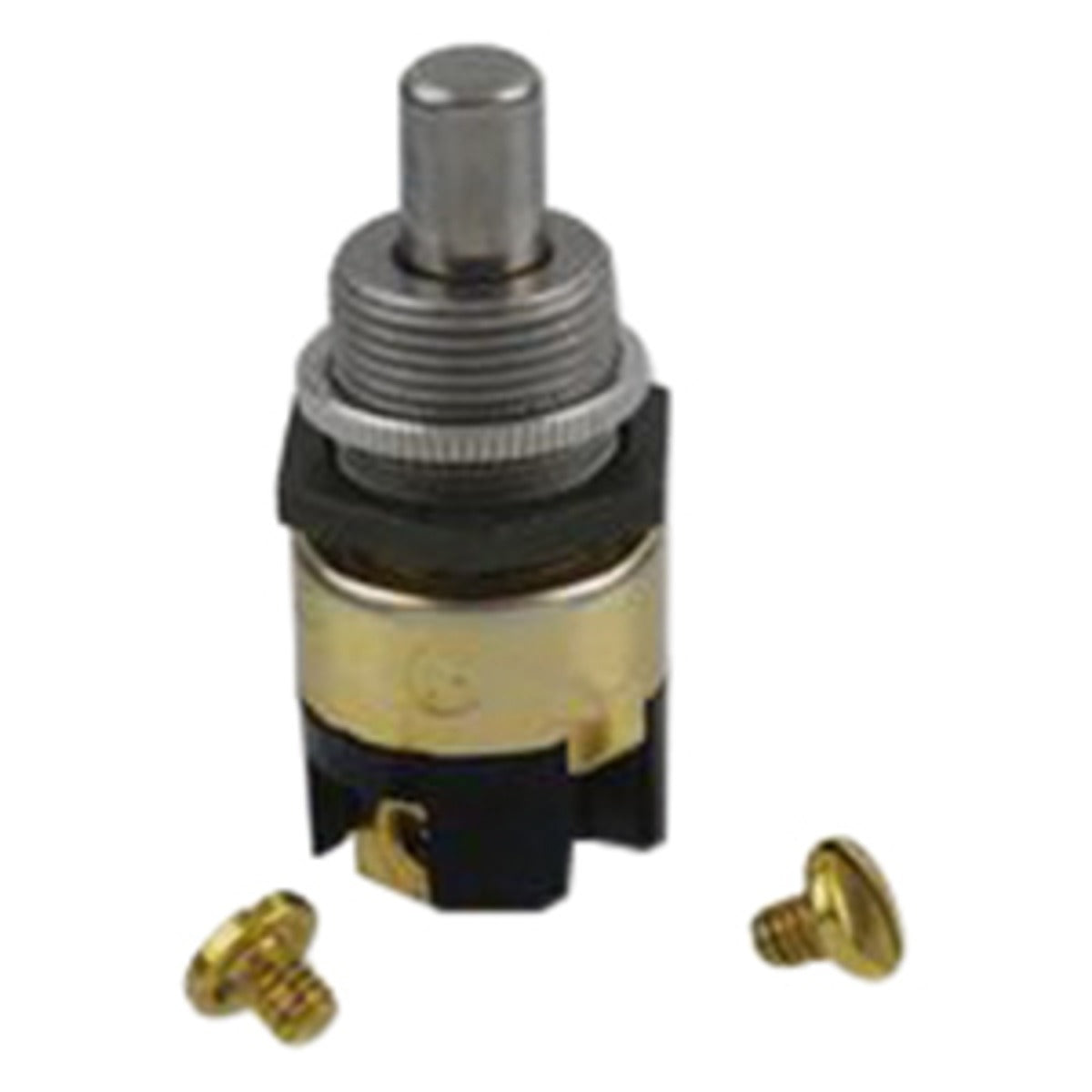

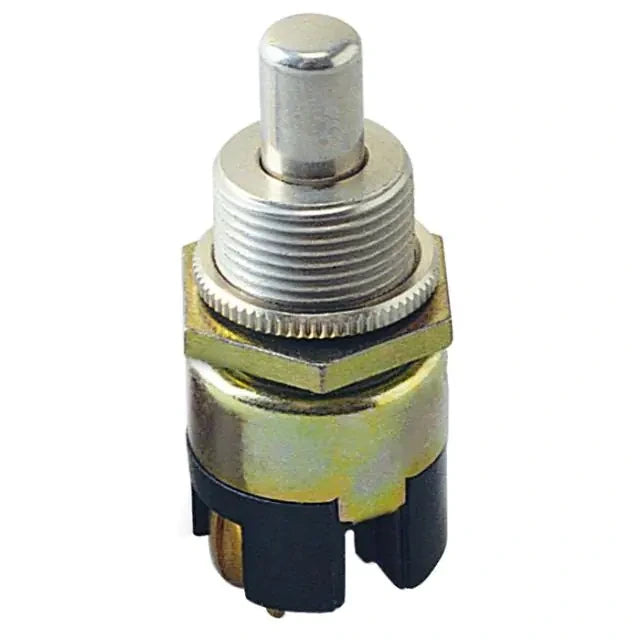

Eaton 8440K3 Pushbutton switch 5 A 12 Vdc / 3 A 125 Vdc (0.468 in bushing)

Product Description

Eaton 8440K3 is a bushing-mounted momentary pushbutton switch with circuit code A. It provides a single-pole, single-throw (SPST) normally open contact and is rated 5 A at 12 Vdc and 3 A at 125 Vdc. The switch features a 0.468-inch bushing, 0.296-inch button, metal rocker actuator, maximum actuation force 2.5 lbs, and screw terminal termination for panel-mount applications.

• Electrical rating: 5 A at 12 Vdc; 3 A at 125 Vdc. Contact: 1 NO, SPST, momentary.
• Mechanical: 0.468 in bushing diameter, 0.296 in button diameter, metal rocker, max actuation force 2.5 lbs.
• Termination and materials: screw terminals, silver-plated copper contacts, brass terminals; UL Recognized and CSA Certified.

Product Highlights

Bushing-mounted SPST momentary pushbutton with 5 A/3 A electrical ratings, 0.468 in bushing, metal rocker, and screw terminal termination.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 8440K3
• Country of Origin: Mexico
