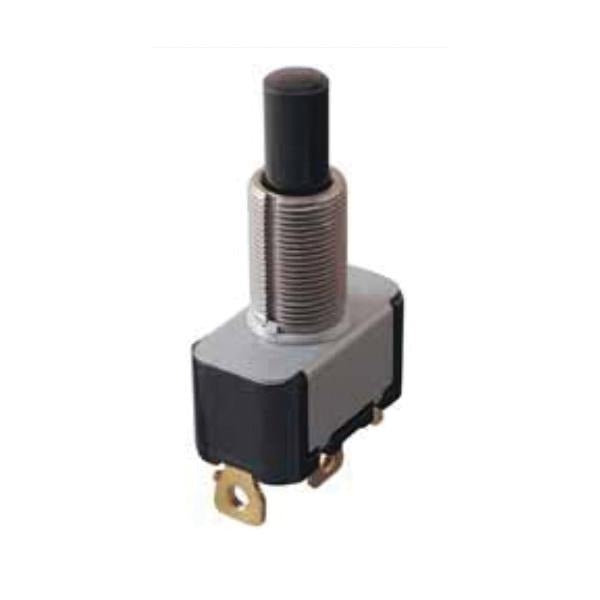

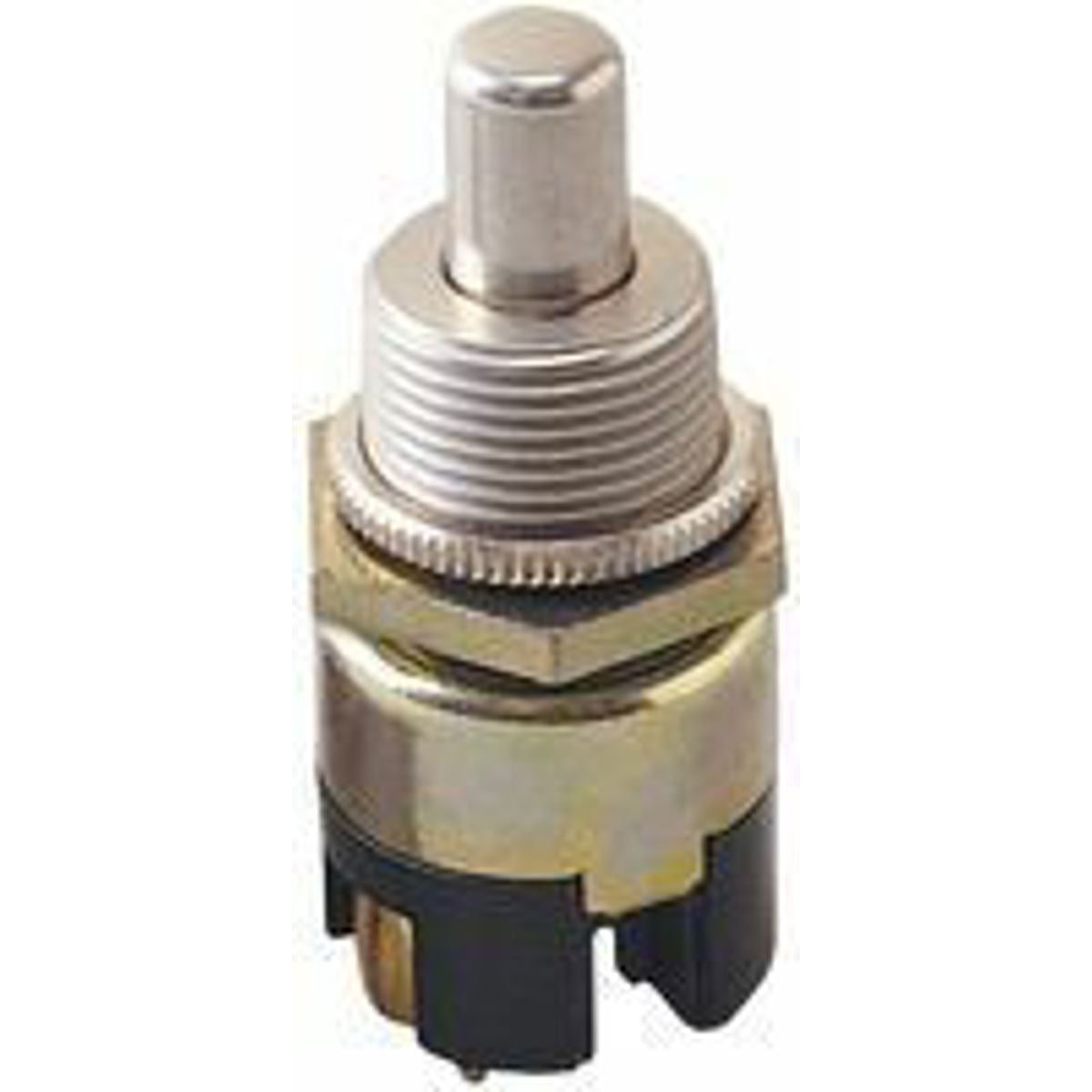

Eaton 8434K2 Pushbutton Switch 15A@125VAC/10A@250VAC (0.687 in Mounting)

Product Description

Eaton 8434K2 is a metal, panel-mount pushbutton switch with SPDT (1NO/1NC) contacts and momentary operation. The medium-duty, non-illuminated unit is rated for 15 A at 125 VAC and 10 A at 250 VAC, mounts in a 0.687 inch hole or bushing, and uses screw terminal connections for wiring. Typical applications include control panels, machinery start/stop circuits, and general-purpose switching.

• SPDT contact configuration (1NO/1NC) with momentary operation
• Electrical rating: 15 A at 125 VAC; 10 A at 250 VAC; horsepower: 0.25 hp @125 VAC, 0.5 hp @250 VAC
• Panel/1-hole mounting (0.687 in bushing), metal construction, screw terminal termination

Product Highlights

Medium-duty, non-illuminated panel pushbutton; SPDT momentary contacts; 15A/125VAC and 10A/250VAC ratings; 0.687 in mounting; screw terminals; CSA and UL approvals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 8434K2
