Eaton 8432AN CWD Plug 3P4W 30A 250V 3PH 15-30P Angle Grip.425-1.31 inches

Product Description

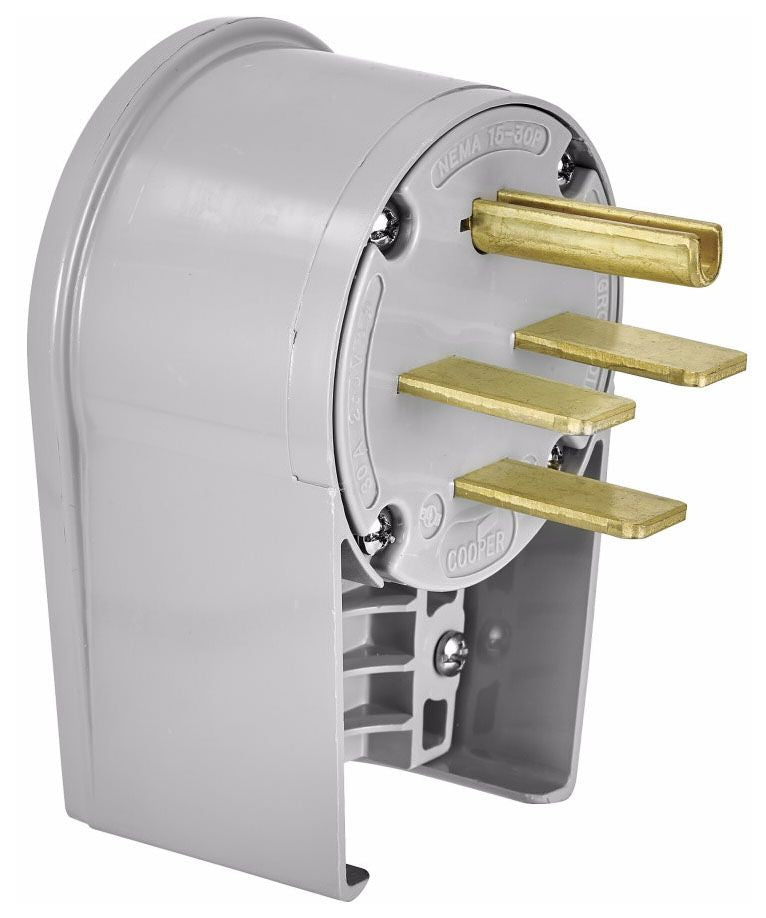

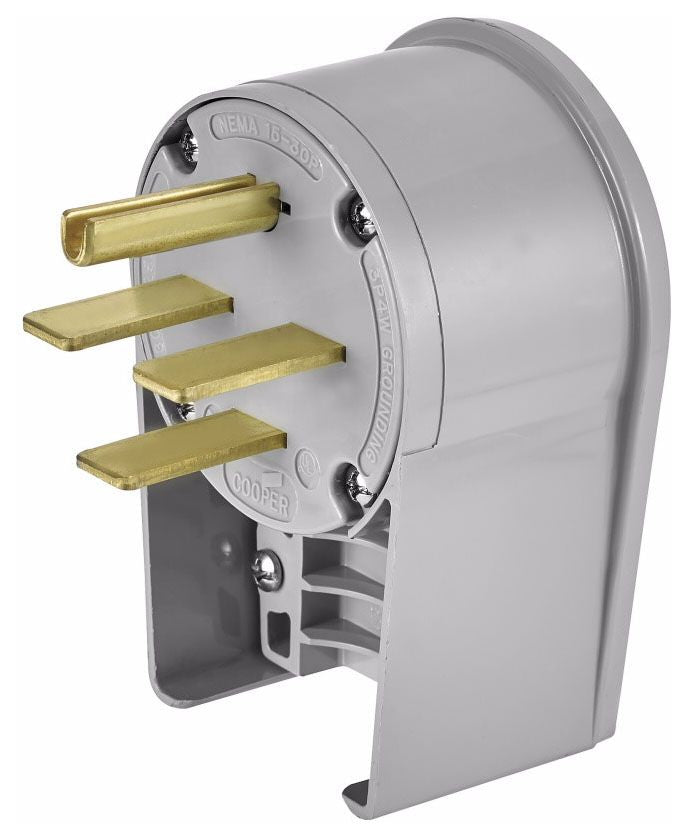

The EATON 8432AN Arrow Hart�� straight blade plug is angled with a NEMA 15-30P rating. This plug supports 250 VAC at 30 A, with 3 poles and 4 wires. Suitable for commercial, industrial, and standard-grade applications, it accommodates a cord diameter of 0.56 to 1.31 inches and operates in temperatures from -40 to 75 deg C.

• Rugged high-strength construction
• High-strength thermoplastic
• Neoprene gasket seals around cord for added terminal protection from external elements

Product Highlights

Ideal for industrial applications, this heavy-duty angled plug ensures secure and reliable power connections with its robust design and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 8432AN
• Country of Origin: MEX

Technical Specifications

• Amperage Rating: 30 A
• Cord Diameter: 0.56 to 1.31 in
• Grade: Commercial/Industrial/Standard
• Material: Nylon
• NEMA Rating: NEMA 15-30P
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Threaded
• Type: Angled
• Voltage Rating: 250 VAC
• Application: Industrial, range and dryer
• Wiring Method: Back wire
• Allowable Wire Size: #12-4 AWG
• Product Length/Depth: 1.88 in
• Product Height: 4.3 in
• Product Width: 3 in
• Certifications: UL NOM Federal Specification Classification 6221 02
• Device Type: Plug
• Style Type: Power, Angled body
• Connection Type: Screw
• Torque Rating: 20-24 lbf-inch
• Design Type: Straight blade
• Face/Body Material: Nylon
• Receptacle Type: Three-pole, four-wire, grounding
• Connector Style: NEMA 15-30P
• Connector Type: Plug, Male Blades
• Current Rating (Amps): 30A
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Approval Agency: NOM, UL
