Eaton 8411K7 Push Button Switch 0.75 A at 125 VAC (SPST)

Product Description

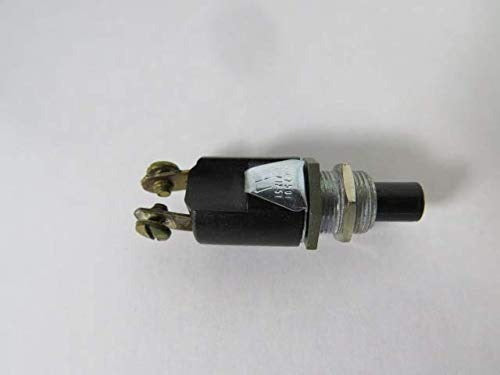

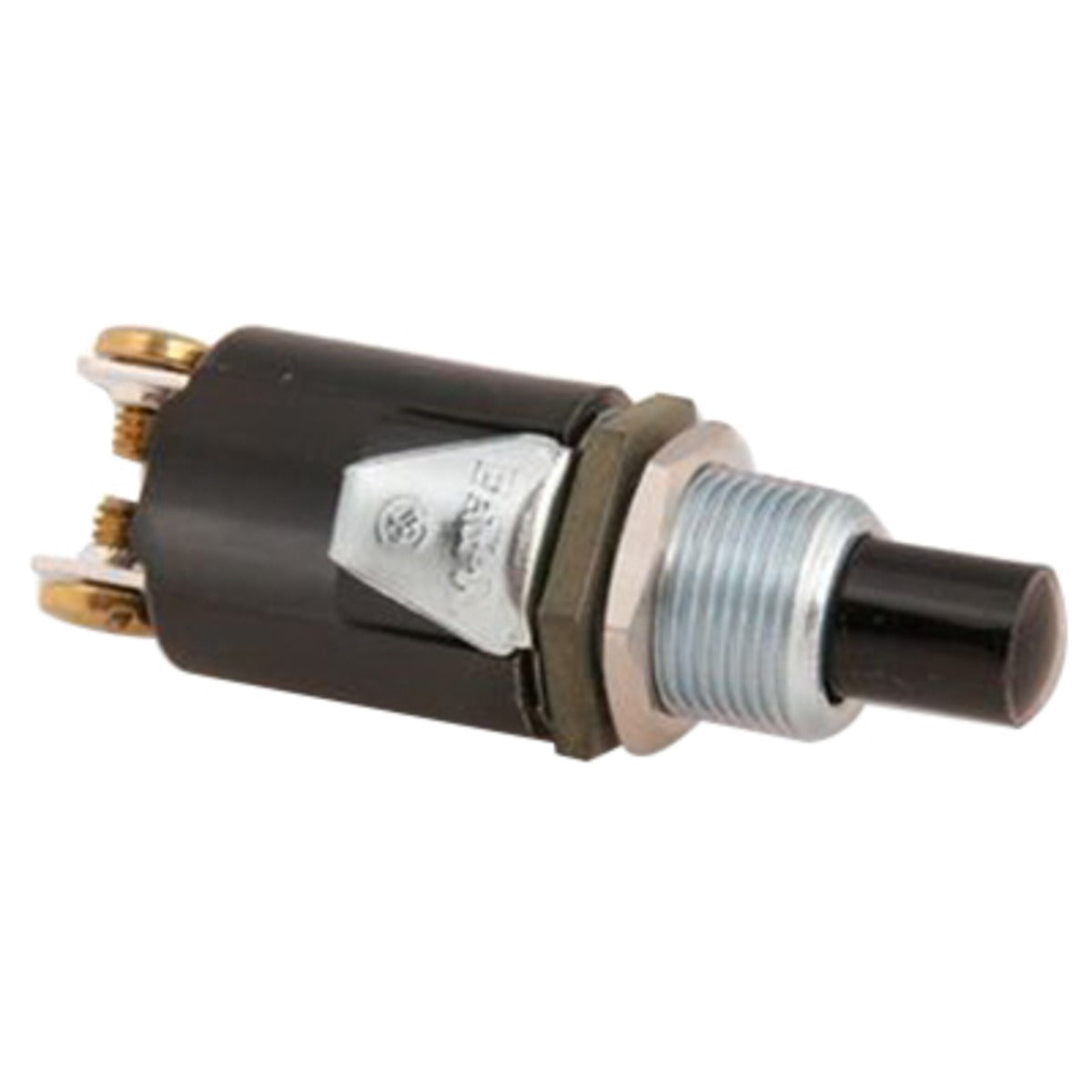

The Eaton 8411K7 is a non-illuminated, light-duty pushbutton switch designed for panel or bushing mounting. It features a nylon round button with a 0.406 in extension, a normally closed SPST contact configuration, and screw terminal connections. Contact ratings are 0.75 A at 125 VAC/VDC and 0.25 A at 250 VAC/VDC. The switch is intended for pilot and device control applications and operates in a momentary mode.

• Non-illuminated nylon round pushbutton with 0.406 in button extension and bushing/panel mount

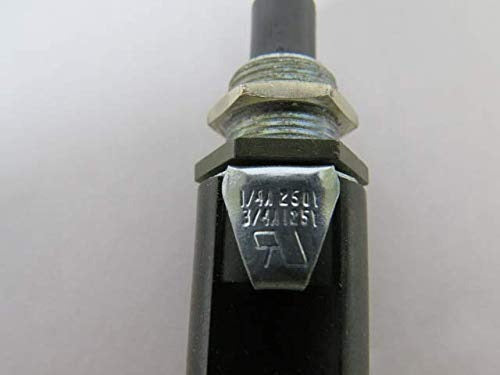

• Normally closed SPST contacts; rated 0.75 A at 125 VAC/VDC and 0.25 A at 250 VAC/VDC; copper/silver contact material
• Screw terminal connections, momentary operation, operating temperature 0 to 150°F (-17.8 to 65.6°C); UL recognized and CSA certified

Product Highlights

Light-duty, non-illuminated SPST pushbutton with 0.406 in actuator, screw terminals, and low-current AC/DC contact ratings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 8411K7
• Country of Origin: Mexico
