Eaton 8295K107 Toggle Switch 3 A 250 VDC (1 in x 0.5 in x 0.562 in)

EATON
Brand: EATON
SKU: 8295K107
Availability: In Stock

Ships same day if ordered by 12 pm
$19.24
$19.24
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

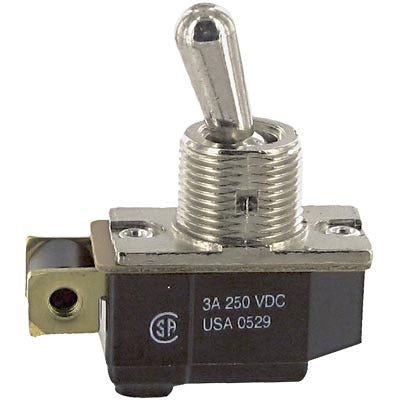

The Eaton 8295K107 is an AC/DC rated SPST toggle switch from the 8200 series, rated 3 A at 250 V DC. It has a lever actuator, threaded panel mount and screw terminals with thermoset body construction. The switch uses quick-make/quick-break wiping contacts to reduce arcing and contact pitting, and provides On-None-Off positions with a 0.344 in bushing and 0.5 in lever for general-purpose and vehicle control applications.

  • AC/DC rated SPST toggle switch, 3 A at 250 V DC; Series 8200
  • Lever actuator with threaded panel mount and screw terminal termination; thermoset body
  • Quick-make/quick-break wiping contacts to reduce arcing; On-None-Off circuit positions

Product Highlights

AC/DC rated SPST toggle switch, 3 A @ 250 VDC, threaded panel mount, screw terminals, quick-make wiping contacts

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 8295K107
Technical Specifications
Manufacturer
Eaton
Part Number
8295K107
Series
8200
Type
Toggle switch (AC/DC rated ON/OFF)
Actuator
Lever/Toggle
Contact Configuration
SPST
Amperage Rating
3 A
Voltage Rating
250 V DC
Number of Poles
1
Throw Type
Single-throw
Circuit Positions
On-None-Off
Bushing Length
0.344 in
Lever Length
0.5 in
Terminal Type
Screw terminals
Mounting Type
Threaded panel mount
Mounting Hole Size
0.468 in
Body Material
Thermoset
Contact Material
Bronze silver plated
Contact Mechanism
Quick-make/quick-break with wiping (self-cleaning) action
Operating Temperature
0 to 150 °F
Dimensions
1 in L x 0.5 in W x 0.562 in H
Standards
UL Recognized, CSA Certified
Features
Arc-resistant design; latched switch action; panel-mount with mounting hardware included
