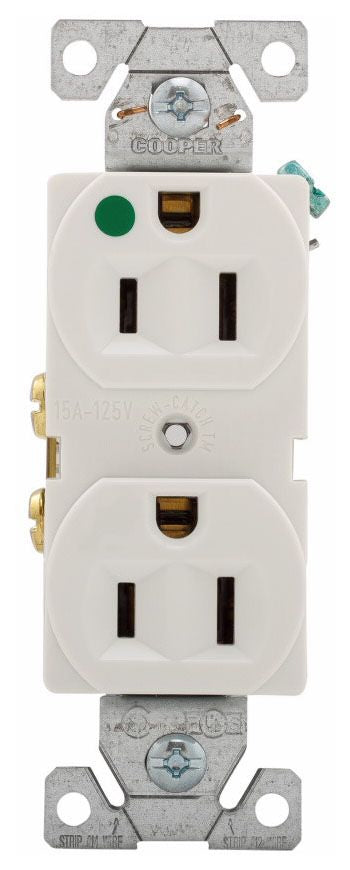

Eaton 8200W Duplex Receptacle Nema 5-15R

Product Description

The EATON 8200W is a duplex receptacle rated to the NEMA 5-15R configuration, designed for standard 15-amp, 125-volt branch circuit applications. This device provides two grounded outlets in a single-gang form factor and is installed by licensed electricians in residential and light commercial wiring systems. The NEMA 5-15R rating confirms a two-pole, three-wire grounding configuration suitable for general-purpose outlet installations in compliance with NEC requirements. Its compact duplex body fits standard single-gang electrical boxes and accepts standard 15-amp plugs.

The 8200W is suited for residential new construction, renovation wiring, and light commercial buildouts where standard general-purpose outlets are required. Electricians install this receptacle in bedrooms, living areas, offices, and similar spaces that call for code-compliant 15-amp grounded outlets. It is appropriate for use on 15-amp branch circuits as defined by NEC Article 210.

Key Features

• NEMA 5-15R duplex configuration provides two grounded 15-amp outlets in one device
• Two-pole, three-wire grounding design for standard branch circuit installations
• Single-gang form factor fits standard electrical boxes
• Rated for 15-amp, 125-volt general-purpose circuits

Compatibility

Designed as an OEM-style replacement or new-installation duplex receptacle for standard single-gang 15-amp, 125-volt branch circuit applications.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panelboard and verify absence of voltage with a meter before wiring. Secure the device in the electrical box before attaching the cover plate, and ensure the grounding conductor is properly terminated to the green screw terminal.

Technical Specifications

• Configuration: NEMA 5-15R Duplex
• Amperage: 15 amps
• Voltage: 125 volts
• Poles: 2-pole, 3-wire grounding
• UPC: 03266470545

Standard Information

• Brand: EATON
• Manufacturer Part Number: 8200W
