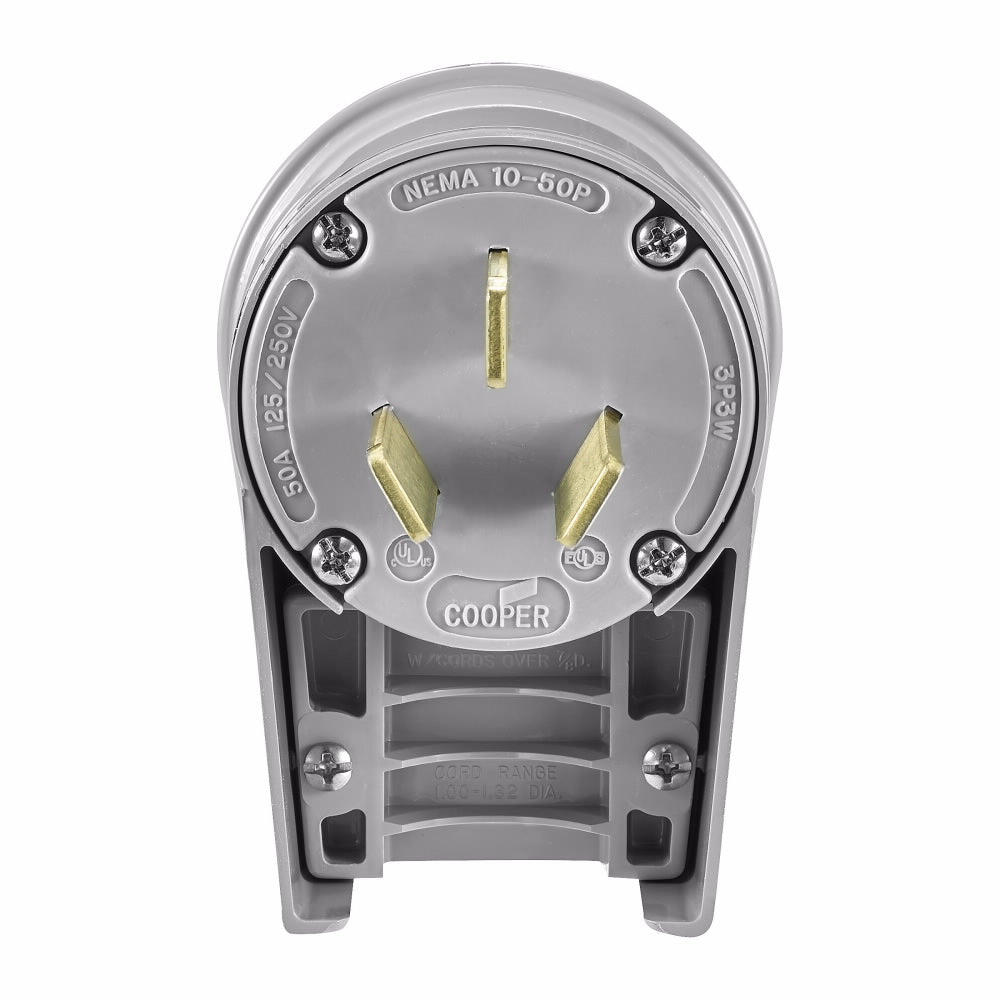

Eaton 7952AN CWD Ang Plug-NEMA10-50P

Product Description

Eaton 7952AN CWD Ang Plug is designed for commercial and industrial applications. This straight blade plug is rated for 125/250 VAC and handles a current of 50 A. It features three poles and three wires, making it suitable for heavy-duty use in various settings.

• Durable nylon construction
• NEMA 10-50P rating
• Temperature range of -40 to 75 degrees Celsius

Product Highlights

This product is ideal for high amperage connectivity in both industrial and commercial environments. Its rugged design ensures reliability and efficiency during operation.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: 7952AN

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 125/250 VAC
• NEMA Rating: NEMA 10-50P
• Number of Poles: 3
• Number of Wires: 3
• Cord Diameter: 0.56 to 1.31 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Dimensions: 6.938 inches L x 3.61 inches W x 3.375 inches H
• Material: Nylon
• Standards/Approvals: cULus Listed
