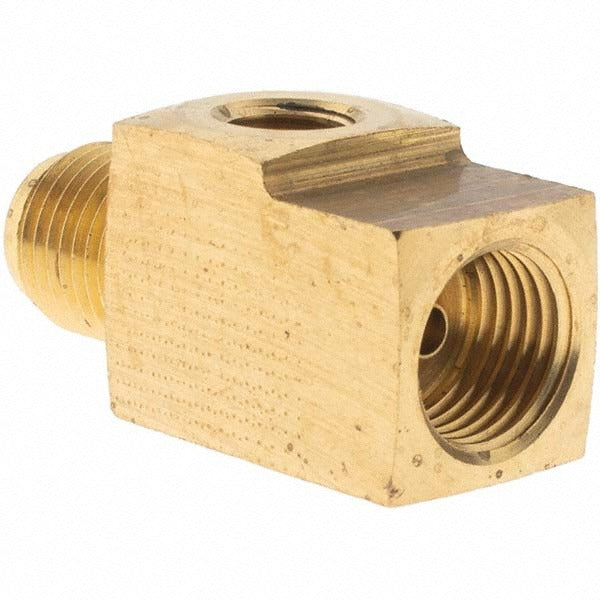

Eaton 7933 Hydraulic Brake Fitting Assortment Brass

Product Description

The EATON 7933 is a hydraulic brake fittings assortment designed for use with hydraulic hose in brake line applications. The straight, threaded brass fittings accept hose with a 3/16 inch (0.1875 inches) inside diameter and a 0.15 inch outside diameter. Thread sizes included are 3/8-24 and 9/16-18 UNF, covering two of the most common hydraulic brake line thread configurations. At 1.75 inches overall length and weighing just 0.01 pounds, this assortment is compact and lightweight. Installation is handled by licensed plumbers, hydraulic system technicians, and qualified brake system mechanics working on equipment with hydraulic brake circuits.

This fitting assortment is suited for hydraulic brake systems found in industrial and mobile equipment applications. The straight connection geometry and UNF thread standard make these fittings appropriate for maintenance, repair, and replacement work on hydraulic hose brake assemblies. The brass construction provides corrosion resistance in hydraulic fluid environments. Technicians working on hydraulic actuated brake circuits will find the dual thread size coverage useful for common service intervals.

Key Features

• Brass construction for corrosion resistance in hydraulic fluid service
• Straight fitting shape for direct inline hose connections
• Threaded UNF connection type in 3/8-24 and 9/16-18 sizes
• Fits 3/16 inch hydraulic hose (0.1875 inches ID, 0.15 inches OD)
• 1.75 inches overall length for compact brake line installations
• Compliant with California Proposition 65 standards

Compatibility

Designed for use with hydraulic hose in hydraulic brake fitting applications requiring 3/8-24 or 9/16-18 UNF threaded connections on 3/16 inch hose.

Installation Notes

Hydraulic brake fittings should be installed by a qualified mechanic or hydraulic systems technician familiar with hydraulic brake circuit service. Depressurize and isolate the hydraulic system completely before disconnecting any lines or fittings. Inspect hose ends for damage or contamination before assembly and ensure threads are clean and undamaged prior to installation. Follow applicable equipment manufacturer service procedures and relevant safety standards when working on hydraulic brake systems.
