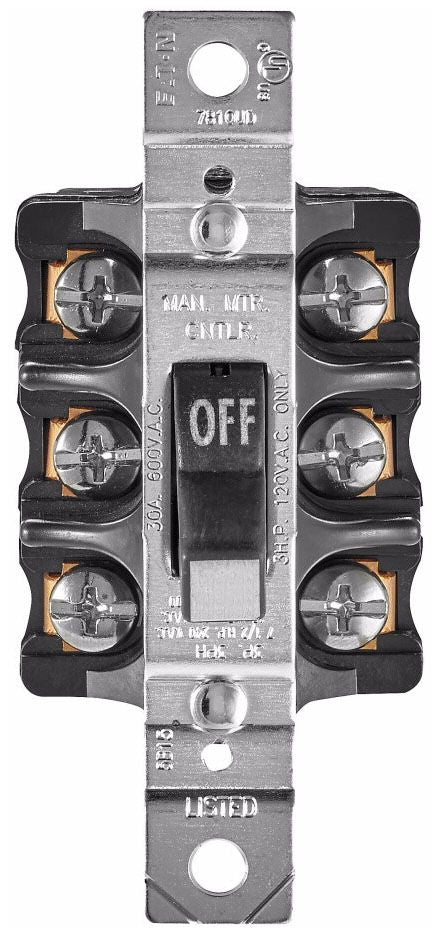

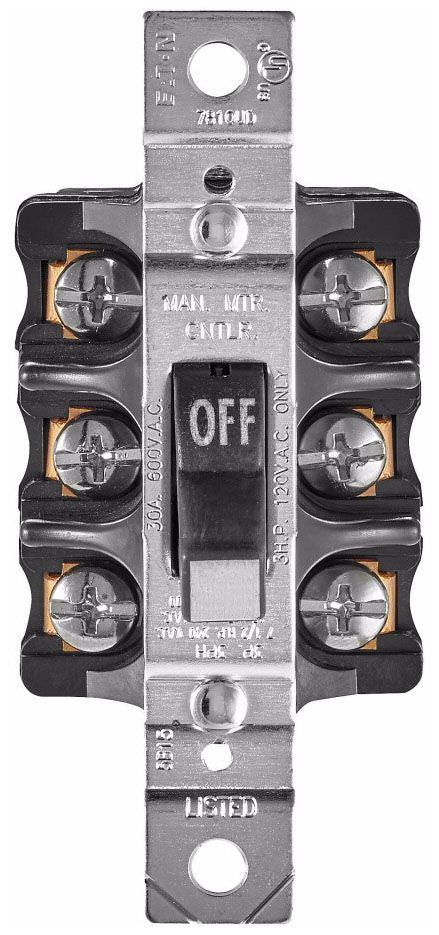

Eaton 7810UDST 3-pole 30 Amp Manual Contactor

Product Description

The EATON 7810UDST is a 3-pole, 30-amp manual contactor designed for manual switching and load control in electrical distribution systems. Manual contactors provide a mechanically operated means of connecting and disconnecting power to motor loads, lighting circuits, and other resistive or inductive loads without requiring an external coil voltage. Rated at 30 amps across three poles, the 7810UDST is suited for installations where remote or automatic operation is not required and direct manual control is preferred. Licensed electricians and electrical contractors are the primary installers of this device.

The 7810UDST fits residential, light commercial, and commercial electrical applications where a manually operated switching device is needed. Typical install scenarios include motor disconnect panels, HVAC equipment disconnects, and panel-level load control for three-phase circuits. Its 3-pole configuration makes it appropriate for three-phase load switching in commercial and light industrial settings.

Key Features

• 3-pole configuration for three-phase load switching
• 30-amp continuous current rating
• Manual operation requires no control voltage or coil wiring
• Suitable for motor loads, lighting, and resistive or inductive circuits
• Compact design for panel or enclosure mounting

Compatibility

Designed as an OEM-style manual contactor for use in three-phase electrical distribution and motor control applications requiring manual switching capability.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit at the upstream breaker or disconnect before beginning installation. Verify that wire gauge, terminal torque, and enclosure ratings meet local code requirements for the intended load. Do not exceed the 30-amp current rating of the device.

Technical Specifications

• Number of Poles: 3
• Current Rating: 30 amps
• Operation Type: Manual
• UPC: 04089368182

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7810UDST
