Product Description

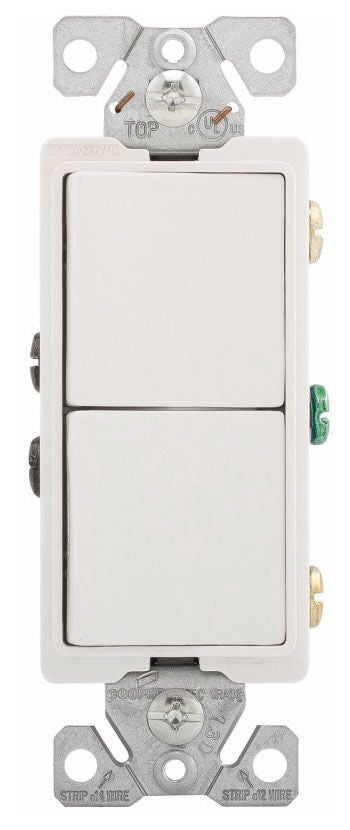

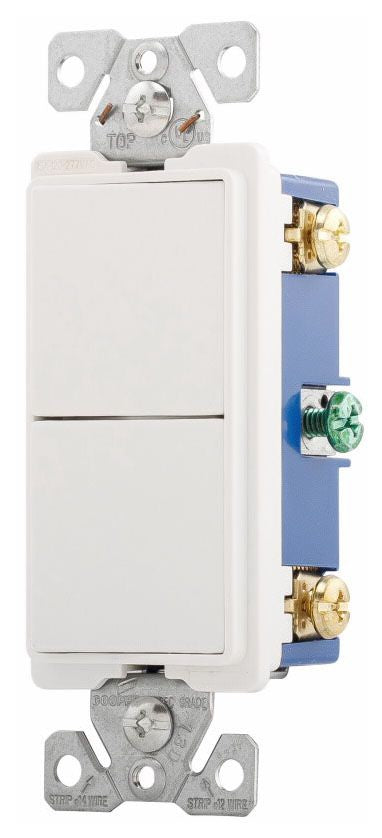

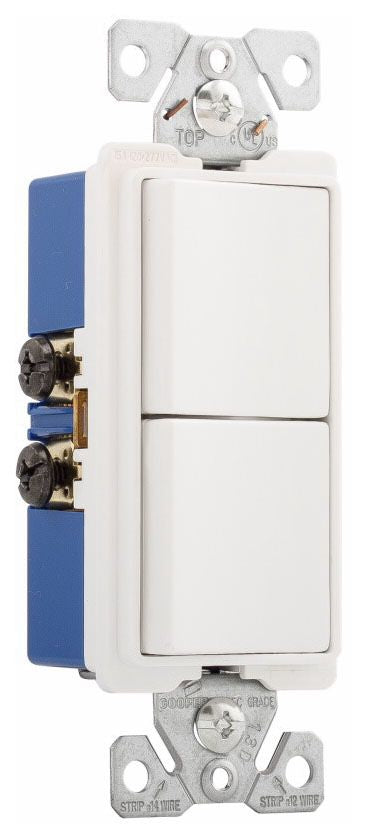

The Eaton 7732W-BOX is a commercial-grade combination switch with a decorator design. This switch includes one single-pole and one 3-way rocker switch, suitable for residential and commercial applications. It supports back and side wiring with #14-#12 AWG and has a 15A, 120/277V rating.
- Combination of single-pole and 3-way switches
- Back and side wiring for versatile installation
- Suitable for residential and commercial applications
Product Highlights
This combination switch offers a convenient solution for controlling lighting in various settings with its durable construction and easy installation.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 7732W-BOX
-
Country of Origin: CHN
Technical Specifications
-
Type: Single-Pole 3-Way
-
Amperage: 15
-
Voltage: 120/277V
-
Wiring: Back And Side
-
Application: Residential Commercial
-
Product Type: Commercial Grade Combination Switch
-
Mount: Flush
-
Material: Polycarbonate
-
Grade: Commercial
-
AWG: 14-12
-
Certifications: cULus Listed NOM
-
Special features: Auto-ground
-
Amperage Rating: 15A
-
Voltage rating: 120/277 V
-
Number of poles: Single-pole
-
Configuration: (2) decorator
-
Device grade: Commercial
-
Wiring method: Back and side
-
Contact type: Brass
-
Switch type: Single-pole, three-way
-
Mounting method: Flush
-
Closure type: Maintained
-
Connector type: Screw
-
Operating temperature: -20 to 60 ��C
-
Torque rating: 12-14 lbf-inch
-
Style type: Duplex
-
Actuator: Rocker
-
Number of ways: Three-way
-
Allowable wire size: #14-12 AWG
-
Control Style: 3-Way
-
Maximum Amperage: 15 Amp
-
Maximum Voltage: 120/277V
-
Outlet Type: Duplex
