Eaton 7728W-SP EWD 7728W-SP Switch Deco Comb SP/SP 15A 120/277V W

Product Description

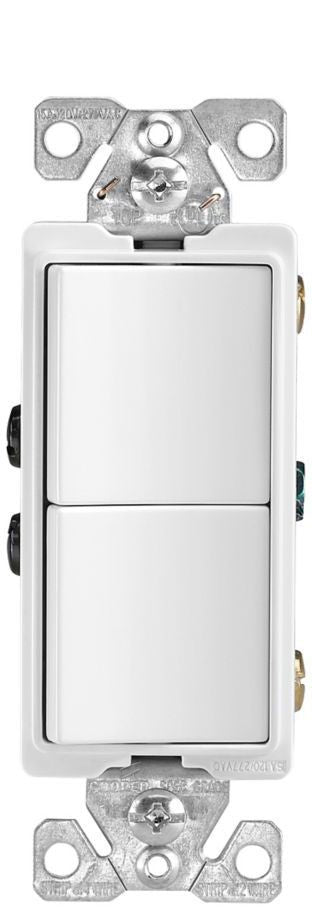

The Eaton 7728W-SP is a combination switch designed for commercial and residential applications. It operates at 120/277 volts and handles a maximum current of fifteen amps. The switch features a paddle actuator and is designed to withstand temperatures from negative twenty to sixty degrees Celsius. This dual pole switch is suited for installation in various environments thanks to its durable construction.

• Operates at 120/277 volts with a fifteen amp rating
• Features a paddle actuator for easy operation
• Suitable for commercial and residential use

Product Highlights

The Eaton 7728W-SP switch provides reliable performance in a compact design, making it ideal for both new installations and replacement tasks.

Product Information

Standard Information

• Brand: Eaton
• MPN: 7728W-SP

Technical Specifications

• Type: Duplex, Auto-Ground
• Color: White
• Grade: Commercial
• Width: 1.08 inches
• Height: 4.19 inches
• Length: 1.3 inches
• Weight: 0.229 lb
• Voltage: 120/277 volt
• Amperage: 15 amp
• Material: Polycarbonate, PVC
• Enclosure: PVC, Polycarbonate, Steel Thick Brass Plated Silver Alloy
• Applications: For Commercial/Residential Use
• Mounting Type: Flush
• Conductor Size: 14-12 AWG
• Number of Poles: 1 Pole
• Contact Material: Brass
• Operating Temperature: -20 to 60 degrees C
