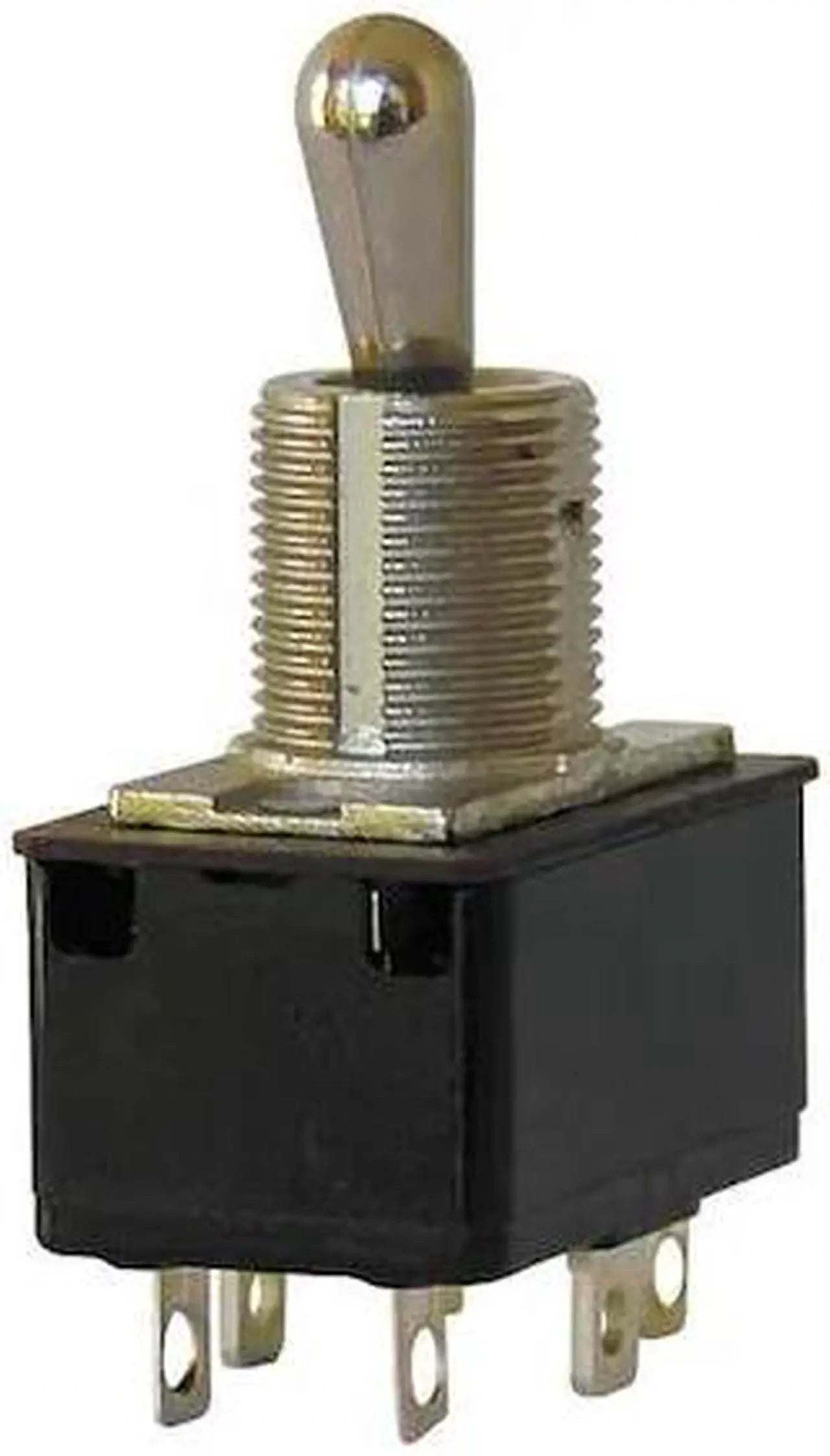

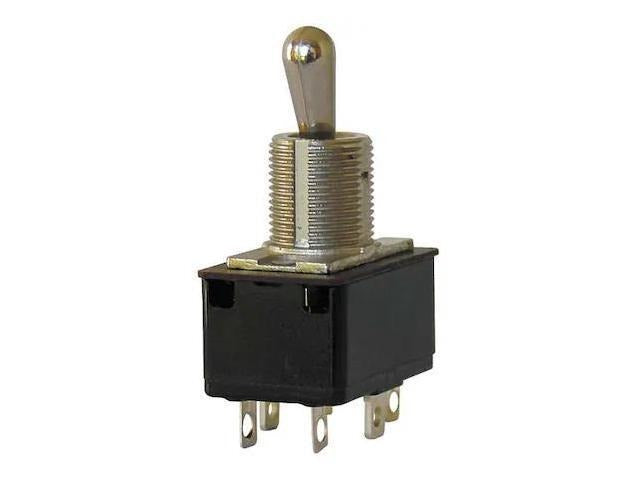

Eaton 7700K2 General purpose AC rated toggle switch 3/4 hp (0.469 in bushing)

Product Description

The Eaton 7700K2 is a general purpose AC-rated toggle switch (MPN 7700K2) in a three-pole, single-throw configuration. It features screw-terminal connections, a 0.469 in bushing and a 0.688 in lever for panel mounting. Electrical ratings are 15 A at 125 V AC and 10 A at 250 V AC with horsepower ratings of 0.75 hp at 250 V and 1 hp at 125–600 V. Construction is thermoset with an operating range of 0 to 150 F.

• Electrical: 15 A @ 125 V AC; 10 A @ 250 V AC; horsepower 0.75 hp at 250 V, 1 hp at 125–600 V
• Mechanical: three-pole single-throw (3PST), six connections, screw terminals, panel-mount bushing 0.469 in and lever 0.688 in
• Construction and compliance: thermoset body with metal bat actuator (nickel finish); certified CSA, UL recognized/listed, RoHS; operating temperature 0 to 150 F

Product Highlights

Three-pole AC toggle switch rated 15 A/125 V and 10 A/250 V with screw terminals and panel-mount bushing.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7700K2
• Country of Origin: Mexico
