Eaton 7694K4 General purpose AC rated toggle switch 3/4 hp (1 Count)

Product Description

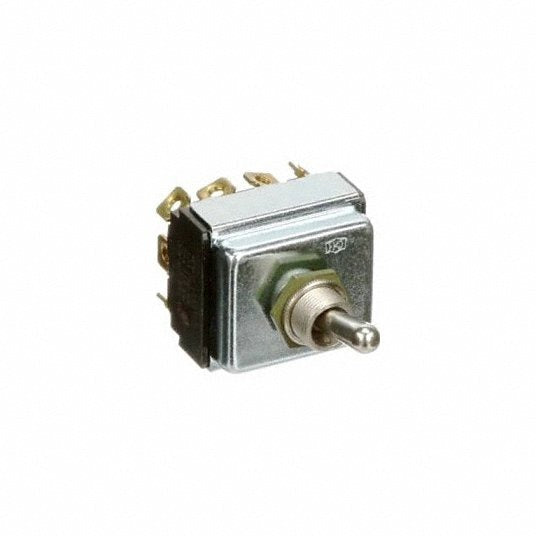

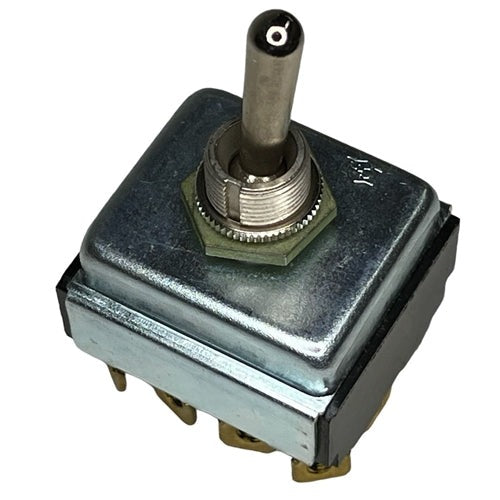

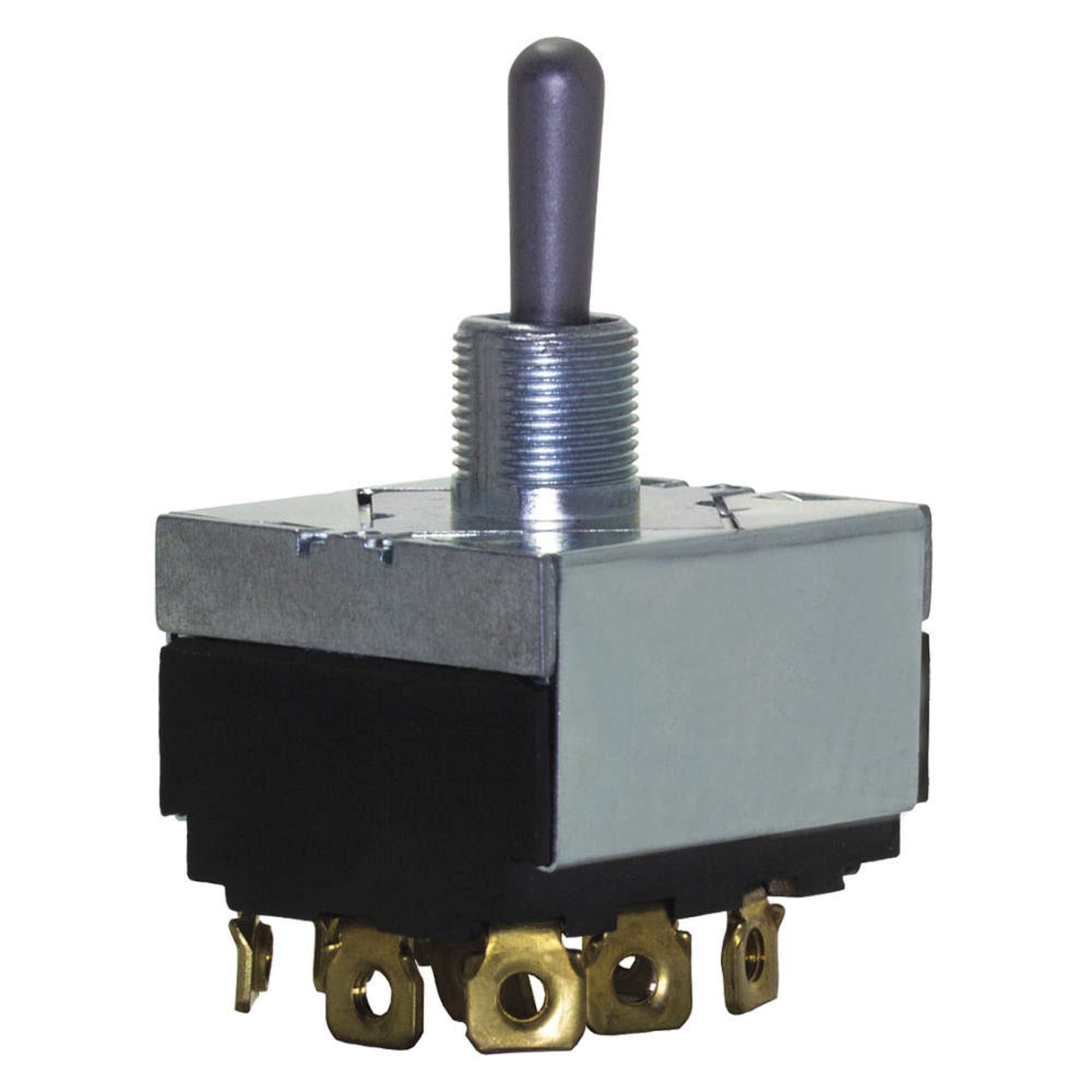

Eaton 7694K4 is a general-purpose AC-rated toggle switch designed for control and industrial applications. The 7694K4 features a four-pole, single-throw contact configuration with ON‑NONE‑ON circuit positions, screw terminal connections, and ratings of 15 A at 125 VAC and 10 A at 250 VAC (0.75 hp at 250 VAC). The switch includes a 0.469 in bushing, 0.688 in lever, and panel/threaded mounting options.

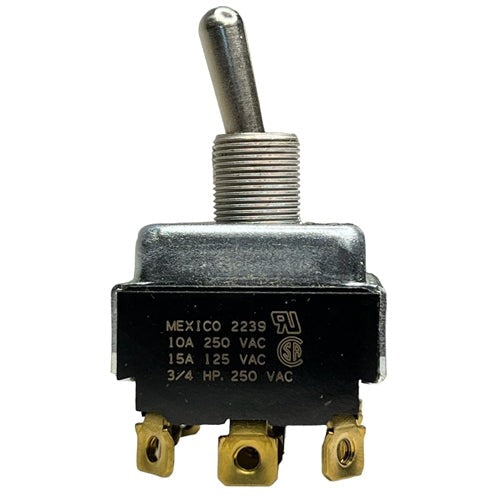

• Electrical ratings: 15 A @ 125 VAC; 10 A @ 250 VAC; 0.75 hp @ 250 VAC
• Contact and function: Four-pole, single-throw with ON-NONE-ON circuit positions; toggle bat lever actuator

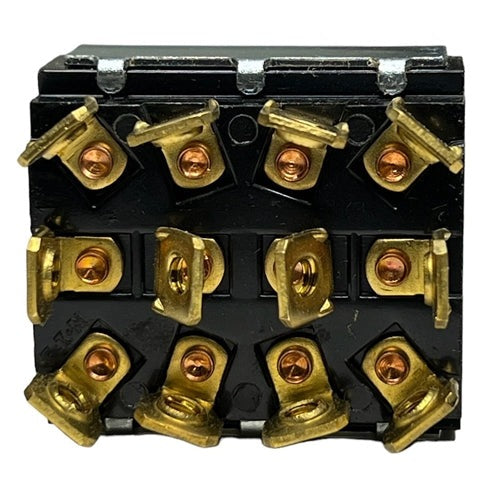

• Mechanical and mounting: Screw terminals (12 connections), 0.469 in bushing, 0.688 in lever, threaded/panel mount; dimensions 1.312 in L x 0.75 in W x 1.2 in H

Product Highlights

AC-rated 4-pole single-throw toggle switch with screw terminals and 15/10 A contact ratings

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7694K4
• Country of Origin: Mexico
