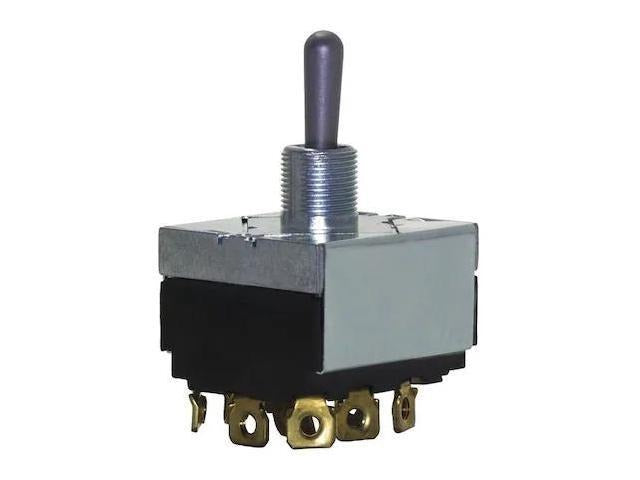

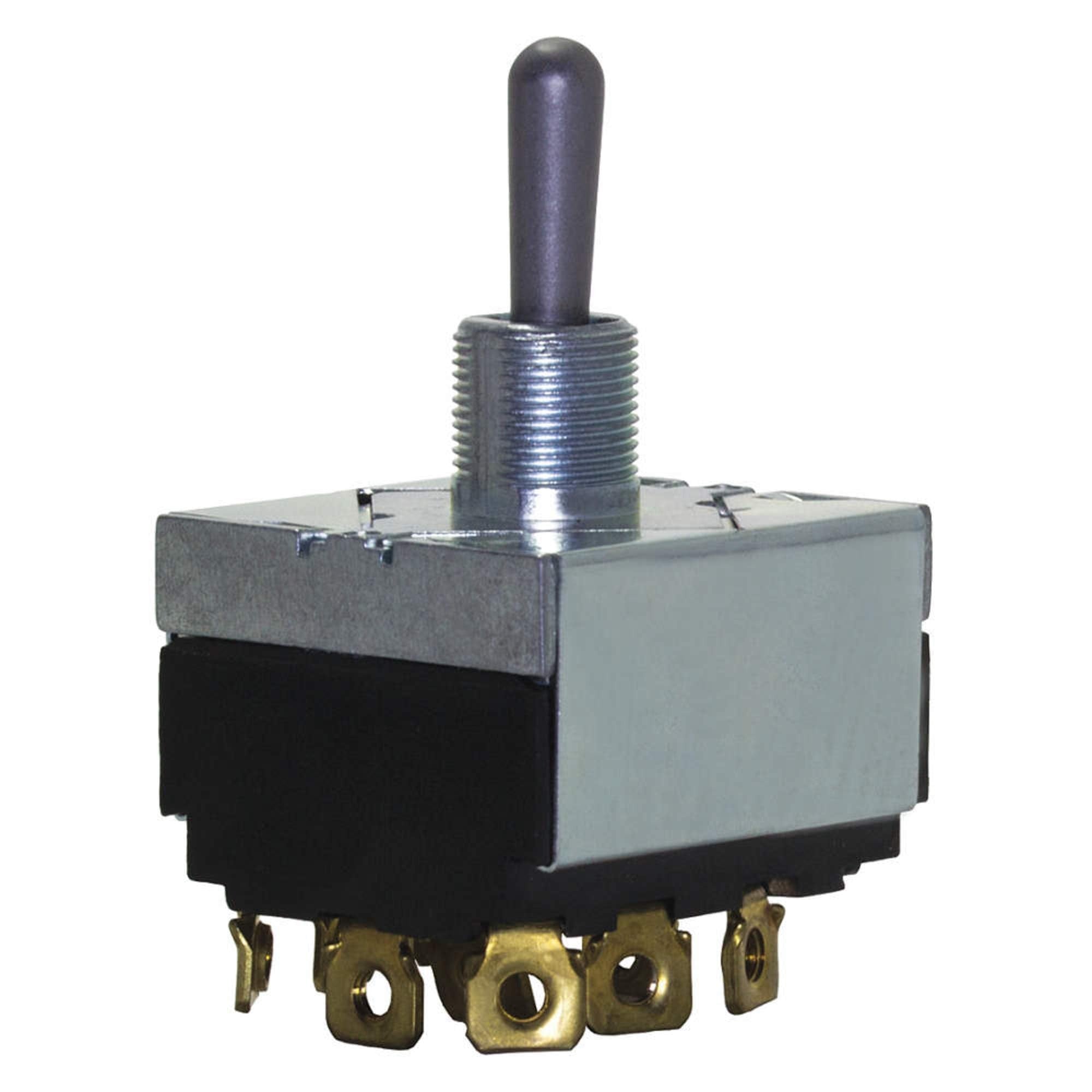

Eaton 7690K8 General Purpose Toggle Switch 15A 125V / 10A 250V (4PST)

Product Description

Eaton 7690K8 is a general-purpose AC-rated toggle switch with screw termination and an On-None-Off action. It provides a four-pole single-throw (4PST) contact configuration and electrical ratings of 15 A at 125 VAC, 10 A at 250 VAC, and 3/4 hp at 250 VAC. The panel-mount, threaded bushing and bat lever actuator suit industrial controls and indicator circuits requiring compact multi-pole switching.

• AC-rated, On-None-Off action with 4PST (four poles, single-throw) contact configuration.
• Electrical ratings: 15 A at 125 VAC; 10 A at 250 VAC; 3/4 hp at 250 VAC. Termination: screw terminals.
• Panel-mount threaded bushing (0.469 in), bat lever actuator, eight electrical connections; UL Recognized, CSA certified, RoHS compliant.

Product Highlights

AC-rated 4-pole single-throw toggle switch; 15 A @ 125 VAC, 10 A @ 250 VAC; screw terminals; panel-mount threaded bushing.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7690K8
• Country of Origin: Mexico
