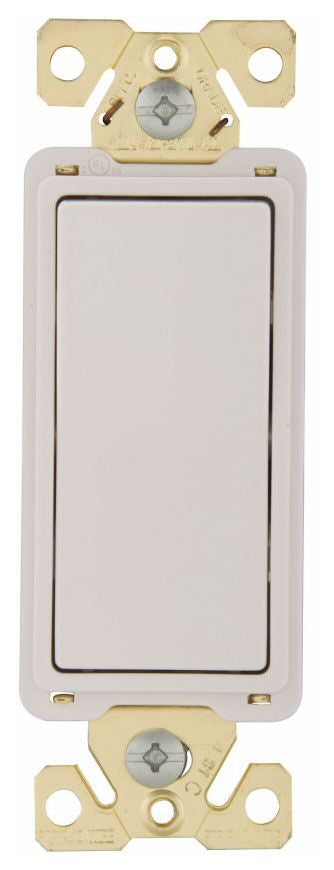

Eaton 7621W-BOX Single Pole Switch 20A 120/277V

Product Description

The EATON 7621W-BOX is a single pole toggle switch rated for 20 amps at 120 or 277 volts, designed for commercial and industrial lighting control applications. This specification-grade device handles higher current loads common in commercial fluorescent and LED lighting circuits. It installs in a standard single-gang wallbox and is suitable for use in branch circuits wired under the National Electrical Code. Licensed electricians typically specify and install this switch in office buildings, warehouses, retail spaces, and other commercial occupancies where 277-volt lighting is standard.

This switch is suited for single pole switching applications in commercial lighting systems operating on 120-volt or 277-volt branch circuits. The 20-amp rating accommodates the higher inrush and continuous current demands of commercial fluorescent, HID, and LED fixture loads. It is a common choice for new construction and retrofit projects in commercial and light industrial settings where specification-grade components are required by the electrical engineer of record.

Key Features

• 20-amp rating supports commercial lighting circuit loads
• Dual voltage rating: 120 volts and 277 volts for flexible application
• Single pole configuration for standard switched-leg lighting control
• Specification-grade construction for commercial and industrial installations
• Single-gang wallbox compatible for straightforward installation

Compatibility

Designed as a specification-grade single pole switch for commercial 120-volt and 277-volt single pole lighting control applications in standard single-gang wallbox installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before beginning any wiring work. Single pole switches interrupt only the hot (ungrounded) conductor of the switched circuit. Do not install on circuits exceeding the rated voltage or amperage of the device.

Technical Specifications

• Amperage: 20 amps
• Voltage: 120/277 volts
• Configuration: Single Pole
• Package Dimensions (L x W x H): 19.87 inches x 8.06 inches x 4.31 inches
• Weight: 0.2 pounds

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7621W-BOX
