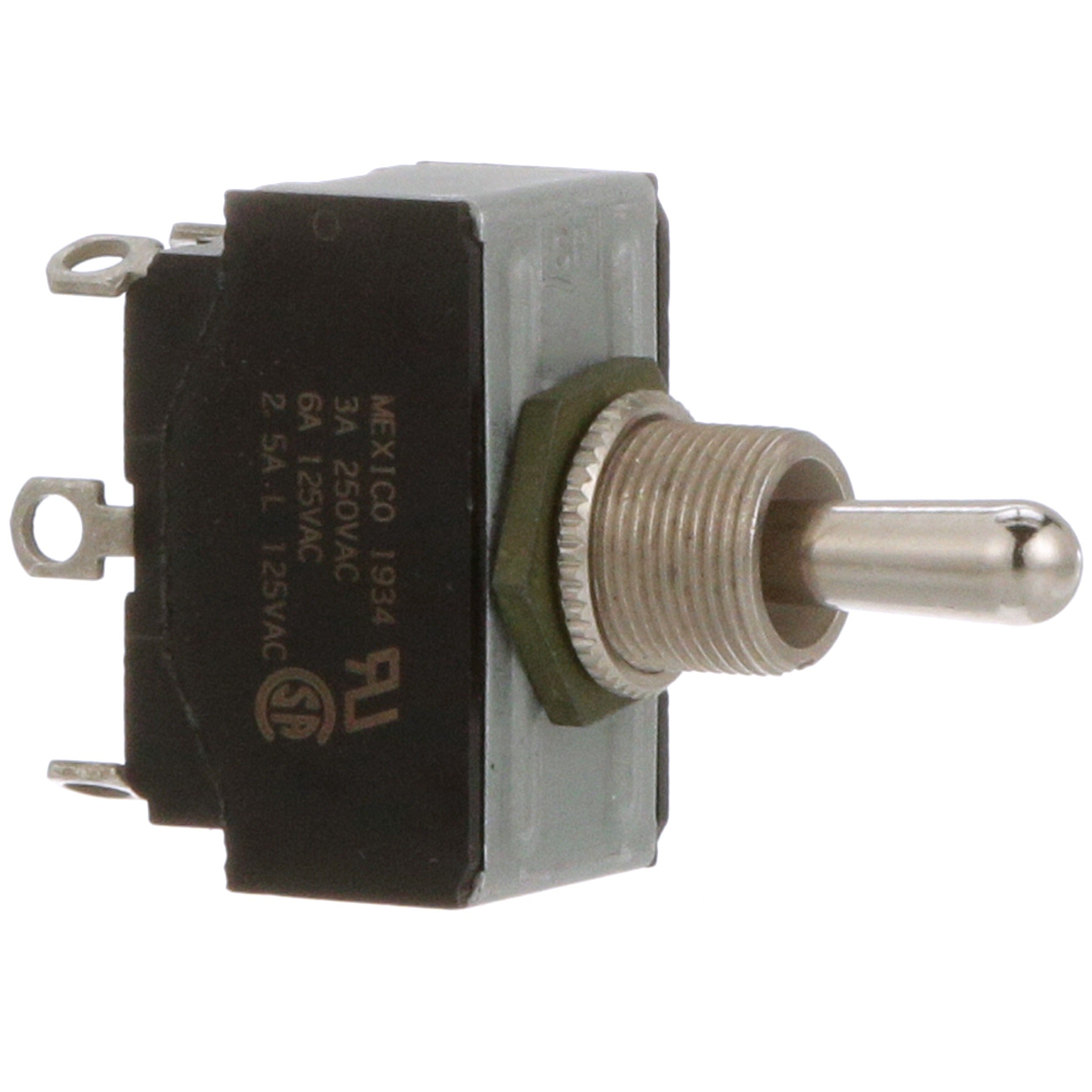

Eaton 7591K6 General purpose AC rated toggle switch 6A at 125V / 3A at 250V (0.469 in bushing)

Product Description

Eaton 7591K6 is a general-purpose AC-rated toggle switch configured as a two-pole, double-throw (DPDT) ON-OFF-ON device. It provides solder lug terminations, a 0.469 in bushing and 0.563 in lever, and electrical ratings of 6 A at 125 VAC, 3 A at 250 VAC and 2.5 A L at 125 VAC. The switch is panel-mounted with threaded bushing, thermoset construction, CSA/UL recognition and RoHS compliance.

• Two-pole, double-throw (DPDT) ON-OFF-ON circuit with circuit number D
• Contact ratings: 6 A at 125 VAC; 3 A at 250 VAC; 2.5 A L at 125 VAC; solder lug terminals
• Mechanical: 0.469 in bushing, 0.563 in lever; product dimensions ~1.312 x 0.75 x 1.2 in; operating temperature 0 to 150°F

Product Highlights

DPDT ON-OFF-ON panel-mount toggle switch with solder lug terminals and AC contact ratings

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7591K6
• Country of Origin: Mexico
