Description

Product Description

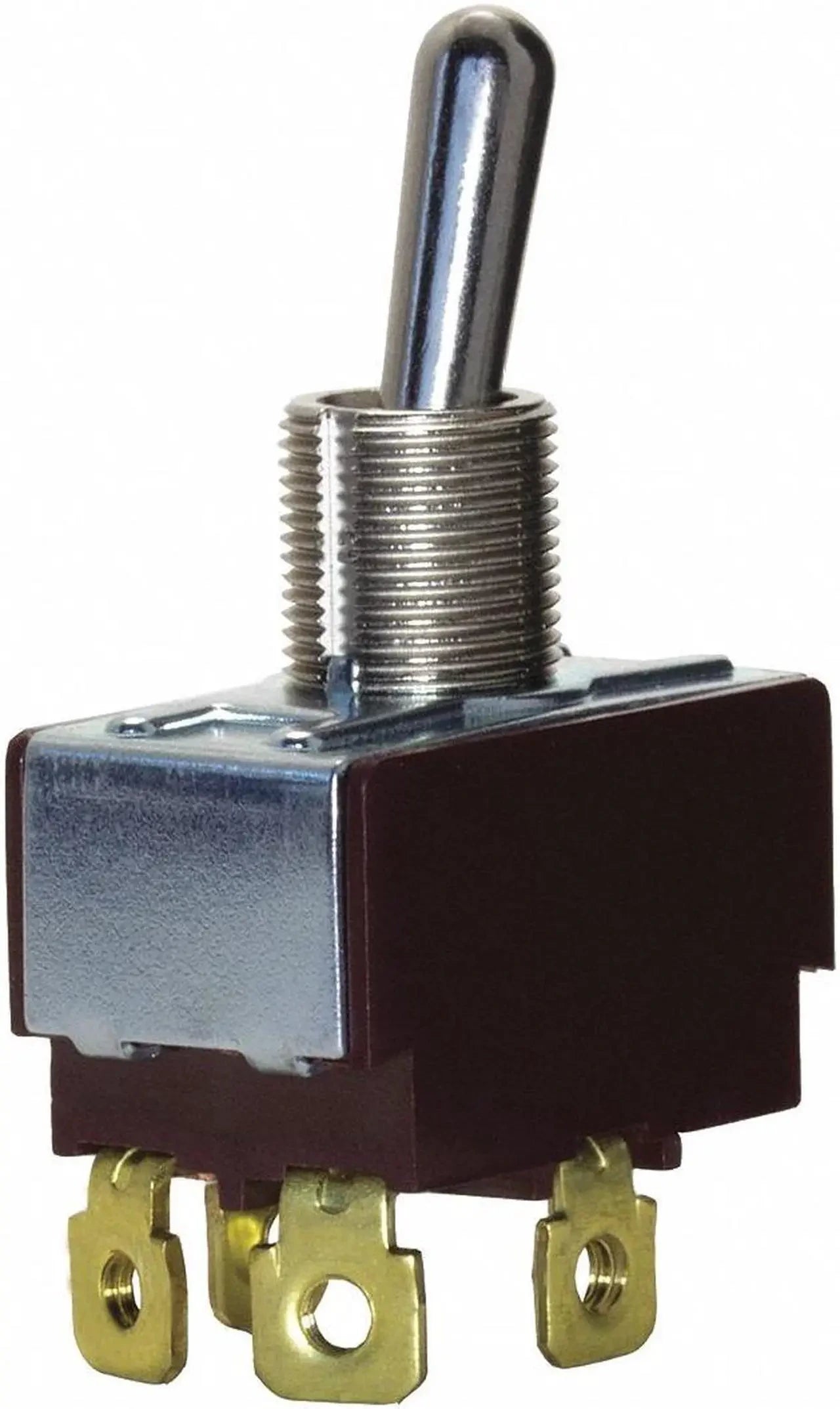

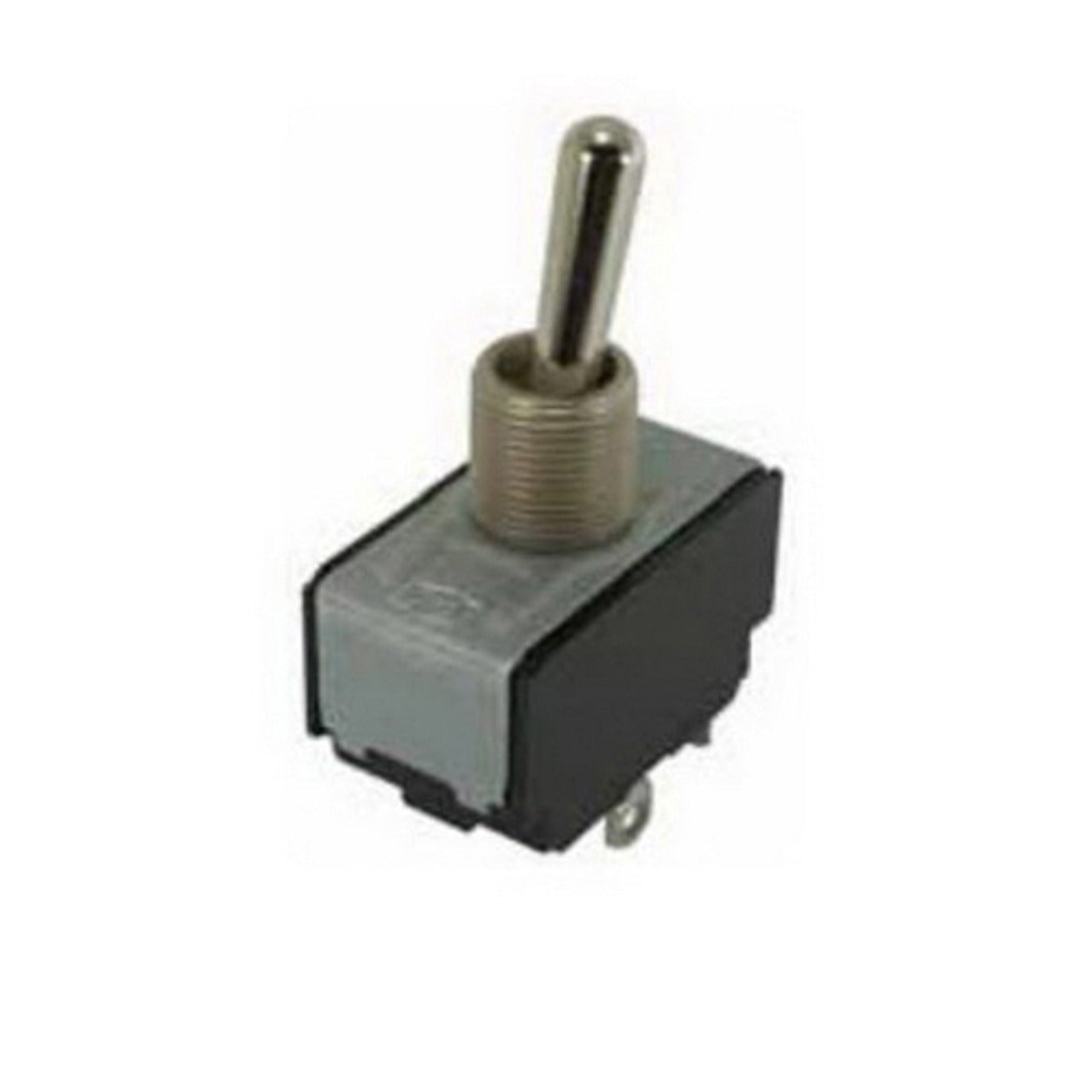

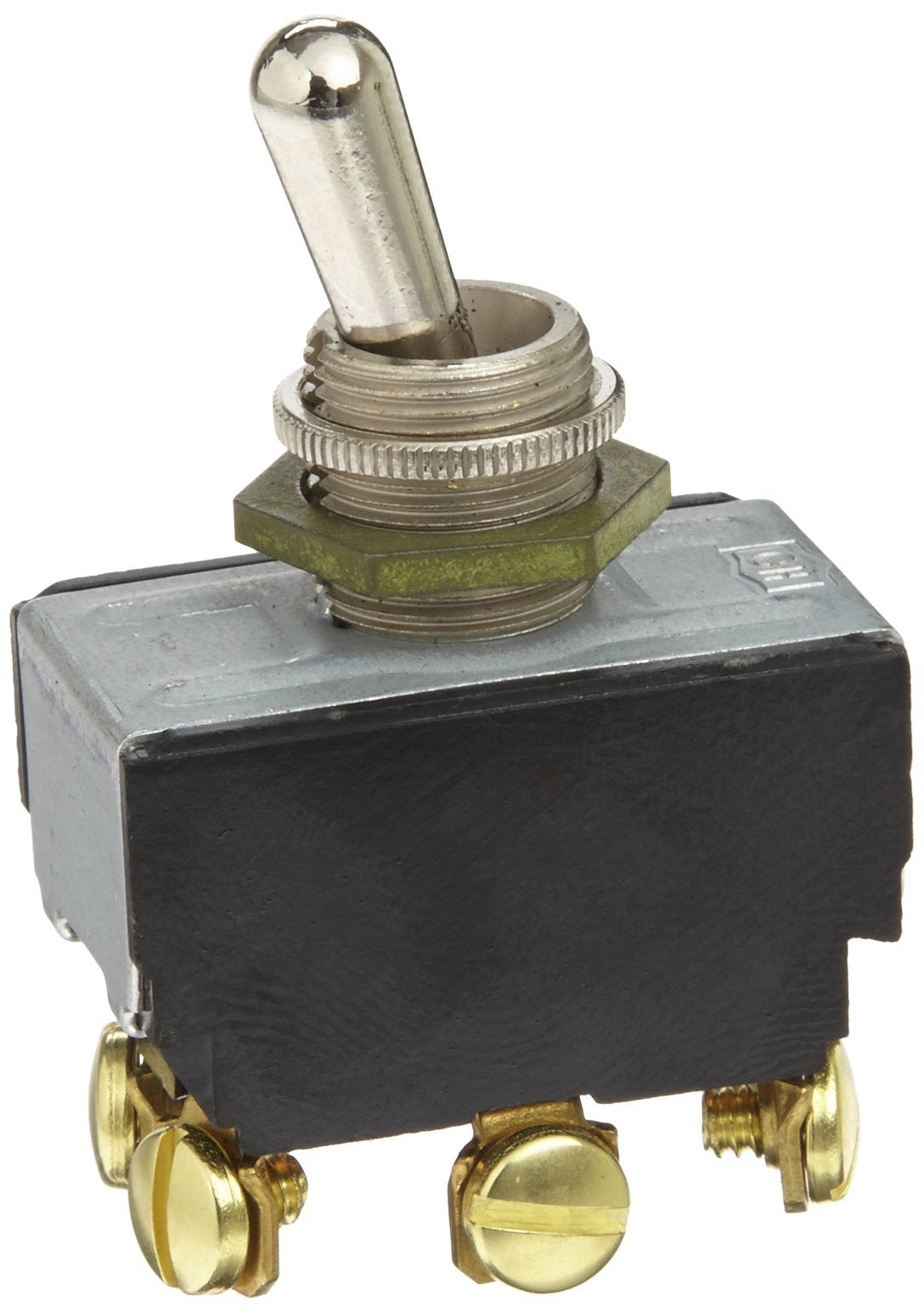

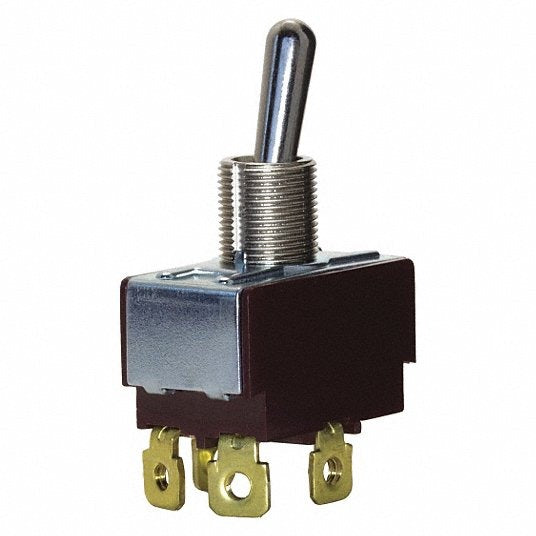

Eaton 7562K4 is a general-purpose, AC-rated DPDT toggle switch with circuit designation D and an ON-OFF-ON function. The switch provides screw terminal connections, panel mounting with a 0.469 in bushing and a 0.563 in lever, and electrical ratings of 15 A at 125 V AC and 10 A at 250 V AC. It is suitable for control and industrial panel applications requiring a compact two-pole double-throw toggle.

  • DPDT (two-pole double-throw) ON-OFF-ON configuration with circuit designation D
  • Electrical ratings: 15 A at 125 V AC; 10 A at 250 V AC; motor ratings 0.5 hp @ 125 V, 0.75 hp @ 250 V
  • Screw terminal termination, threaded panel mount, bushing diameter 0.469 in and lever length 0.563 in

Product Highlights

AC-rated DPDT toggle switch, screw terminals, panel-mount, 15 A@125 VAC and 10 A@250 VAC, 0.469 in bushing

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 7562K4
  • Country of Origin: Mexico
Technical Specifications
Brand
Eaton
Manufacturer Part Number
7562K4
Alternate Part Number / Cooper
852470
Contact Configuration
DPDT (double-pole double-throw)
Circuit Designation
D
Switch Function
ON-OFF-ON
Number of Poles
2
Number of Positions
3
Number of Connections
6
Terminal Type
Screw
Mounting Type
Threaded panel mount (panel mounting included)
Bushing Diameter
0.469 in
Lever Length
0.563 in
Actuator Type
Bat/lever
Contact Material
Copper/Silver (reported)
Voltage Rating
125 V AC (rated); 250 V AC (rated for 10 A)
Amperage Rating
15 A at 125 V AC; 10 A at 250 V AC
Power / Horsepower Rating
0.5 hp at 125 V; 0.75 hp at 250 V
Dimensions
1.312 in L x 0.75 in W x 1.2 in H
Series
7500
Material / Body
Thermoset
Operating Temperature
0 to 150 F
Standards / Certifications
UL recognized; CSA certified; RoHS compliant
Country of Origin
Mexico
GTIN
00786685680330
UPC
786685680330
