Product Description

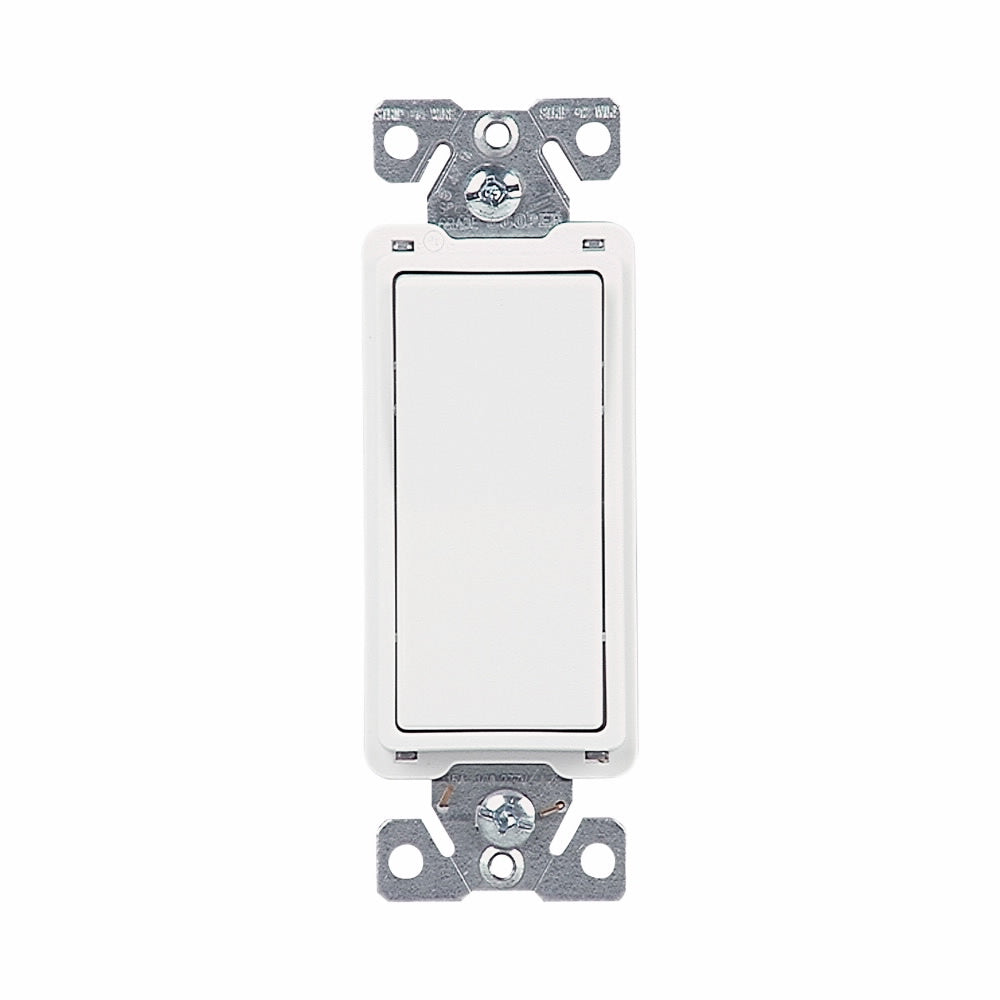

The EATON 7504W-BOX is a 4-way decorator switch designed for use in various lighting applications. It operates on 120 to 277 VAC with a maximum current of 15 A. This switch features a paddle actuator and is suitable for commercial, industrial, and residential settings.
- Functions on 120/277 VAC
- Back and side wire connection types
- Meets environmental condition standards
Product Highlights
This EATON switch is built for durability with a robust design that includes an integrated construction of the strap and body, ensuring reliability and longevity.
Product Information
Standard Information
-
Brand: EATON
-
MPN: 7504W-BOX
Technical Specifications
-
Dimensions: 1.44 in W x 0.97 in D x 4.19 in H
-
Amperage Rating: 15 A
-
Voltage Rating: 120/277 VAC
-
Type: 4-Way Standard Grade
-
Material: Polypropylene/Thermoplastic
-
Mounting: Clip/Wall
-
Environmental Conditions: -20 to 60 deg C Operating Temperature
-
Standards/Approvals: cULus Listed, RoHS Compliant, UL 20 File No. E18704
-
Terminal Type: Back/Side Wire/Push-In/Screw
