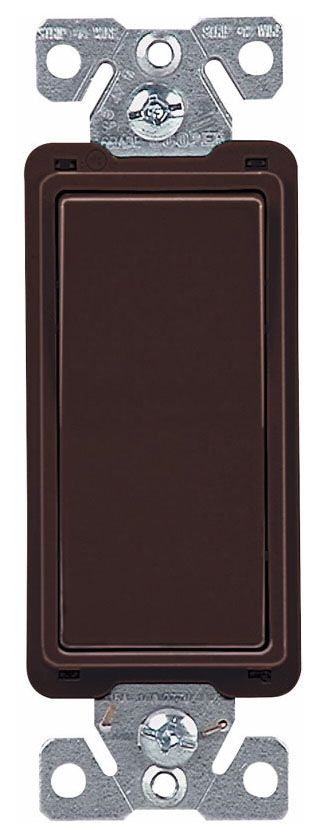

Eaton 7504B-BOX 15A 120/277V Quiet Toggle Switch

Product Description

The EATON 7504B-BOX is a 15-amp, 120/277-volt single-pole quiet toggle switch designed for commercial and residential electrical installations. Built to handle standard lighting and fan circuits, this device delivers silent operation compared to traditional snap-action switches, reducing audible click noise during actuation. At 0.25 pounds, it is a lightweight, straightforward replacement for standard wall switch positions. Licensed electricians install this switch in compliance with NEC requirements for branch circuit wiring in both 120-volt residential and 277-volt commercial fluorescent lighting applications.

This switch is suited for single-pole switching of lighting loads, exhaust fans, and general-purpose circuits in offices, retail spaces, schools, healthcare facilities, and residential settings. The 277-volt rating makes it a direct fit for commercial fluorescent and LED fixture branch circuits, which commonly run at 277 volts in commercial panel configurations. It arrives in box packaging ready for single-unit installation.

Key Features

• Quiet toggle mechanism reduces audible actuation noise compared to standard snap switches
• 15-amp current rating for standard branch circuit loads
• Dual-voltage rating of 120/277 volts supports both residential and commercial lighting circuits
• Single-pole configuration for straightforward on/off switching of one circuit leg
• Box packaging with hardware included for immediate installation

Compatibility

Designed as an OEM-style replacement for standard single-pole 15-amp toggle switches in residential and commercial branch circuit applications rated at 120 or 277 volts.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a non-contact tester before wiring. For 277-volt commercial circuits, confirm panel voltage and conductor sizing comply with NEC Article 210. Do not exceed the 15-amp load rating of the device.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120/277 volts
• Switch Type: Single-Pole Quiet Toggle
• Package Dimensions (L x W x H): 19.87 inches x 8.06 inches x 4.31 inches
• Weight: 0.25 pounds
• UPC: 03266464467

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7504B-BOX
