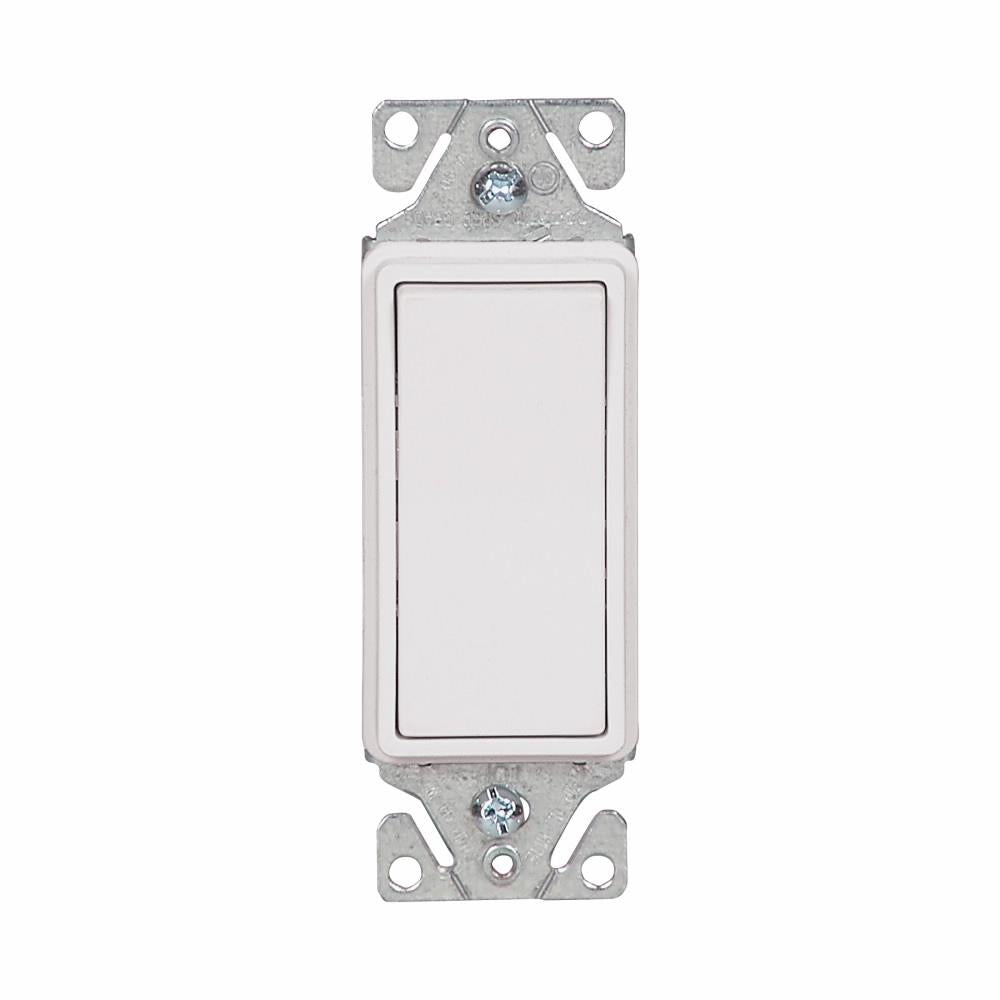

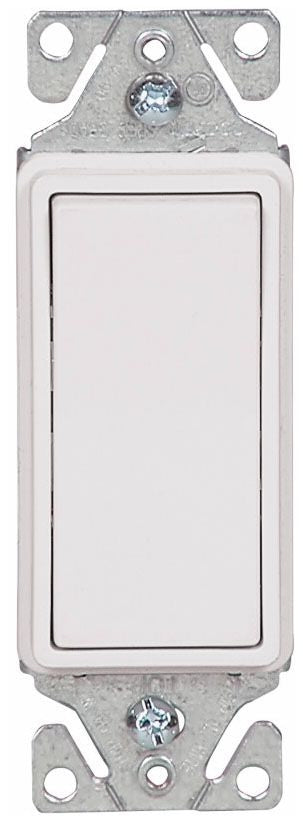

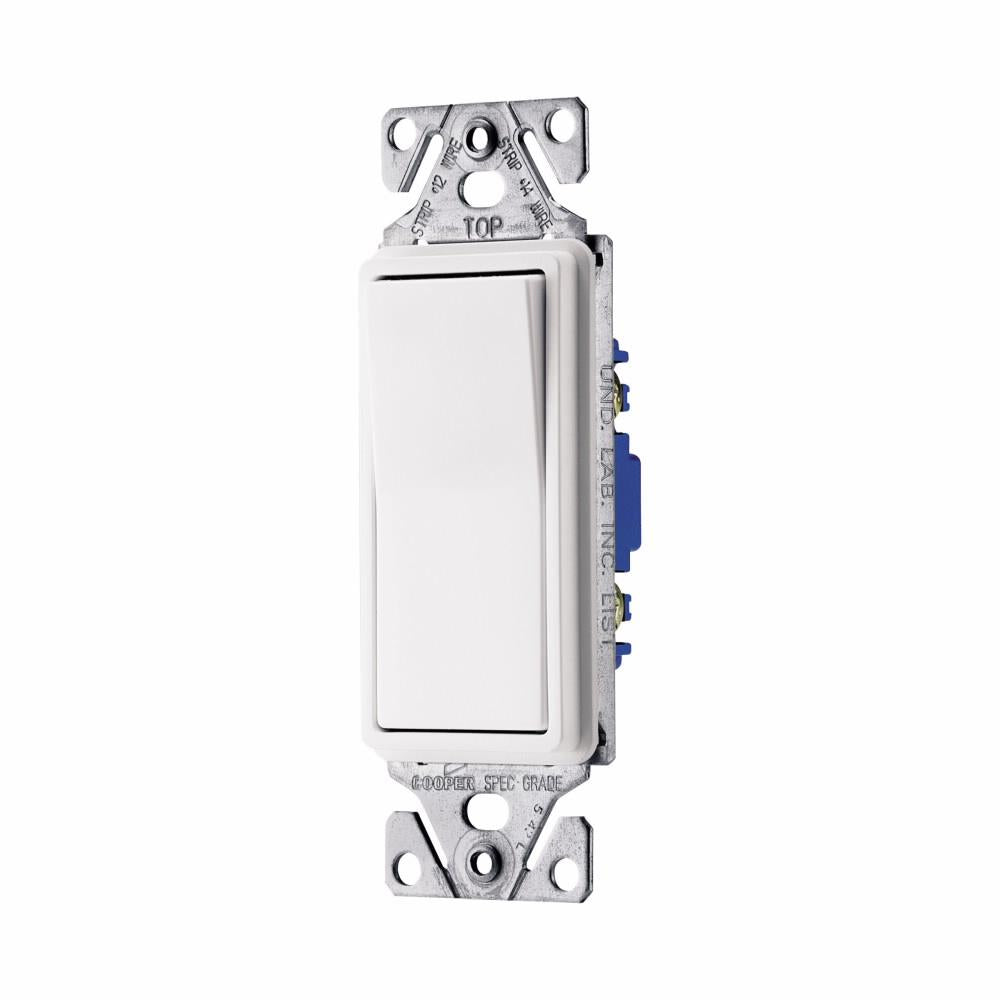

Eaton 7503W 3-Way Standard Grade Decorator Switch, 120/277 VAC, 15 A

Product Description

The EATON 7503W is a 3-way standard grade decorator switch rated for 120/277 VAC and 15 A. Ultrasonic welding and integrated construction of the strap and body provide superior integrity. The thermoplastic rocker, top, and back body are virtually unbreakable, promising years of durable performance. Tri-combo screws accept slotted, Phillips and Robertson head tools.

• Ultrasonic welding and integrated construction of the strap and body provide superior integrity
• Thermoplastic rocker, top and back body are virtually unbreakable
• Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility

Product Highlights

This EATON decorator switch features a redesigned paddle for easier actuation and quiet operation. It has a stippled ground screw terminal standard and a long, broad mounting strap.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7503W
• Country of Origin: USA

Technical Specifications

• Actuator: Paddle
• Dimensions: 1.44 in W x 0.97 in D x 4.19 in H
• Environmental Conditions: -20 to 60 deg C Operating Temperature
• Material: Thermoplastic
• Mounting: Wall
• Number of Poles: 1
• Series: 7500
• Terminal Type: Back/Side Wire/Push-In/Screw
• Type: 3-Way Standard Grade
• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Switch Type: 3-Way
• Application: Fluorescent lighting fixtures typical in commercial applications
• Operation Type: 3-Way
• Wiring: Back/Push
• RoHS Compliant: True
• Number of Phases: 1
• Mounting Type: Flush
• Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, Halogen
• Wire Size: 14 to 12 AWG
• Applicable Standard: NAFTA
• Allowable wire size: #14-12 AWG
• Phase: Single-phase
• Wiring method: Back and push
• Switch type: Three-way
• Mounting method: Flush
• Closure type: Maintained
• Load type: INC ELV CFL FLR LED Motor Control Fan HAL MLV
• Product Length/Depth: 1.44 in
• Product Height: 4.19 in
• Product Width: 0.97 in
• Compliances: RoHS Compliant NAFTA
• Certifications: cULus Listed
• Product Type: Standard grade decorator switch
