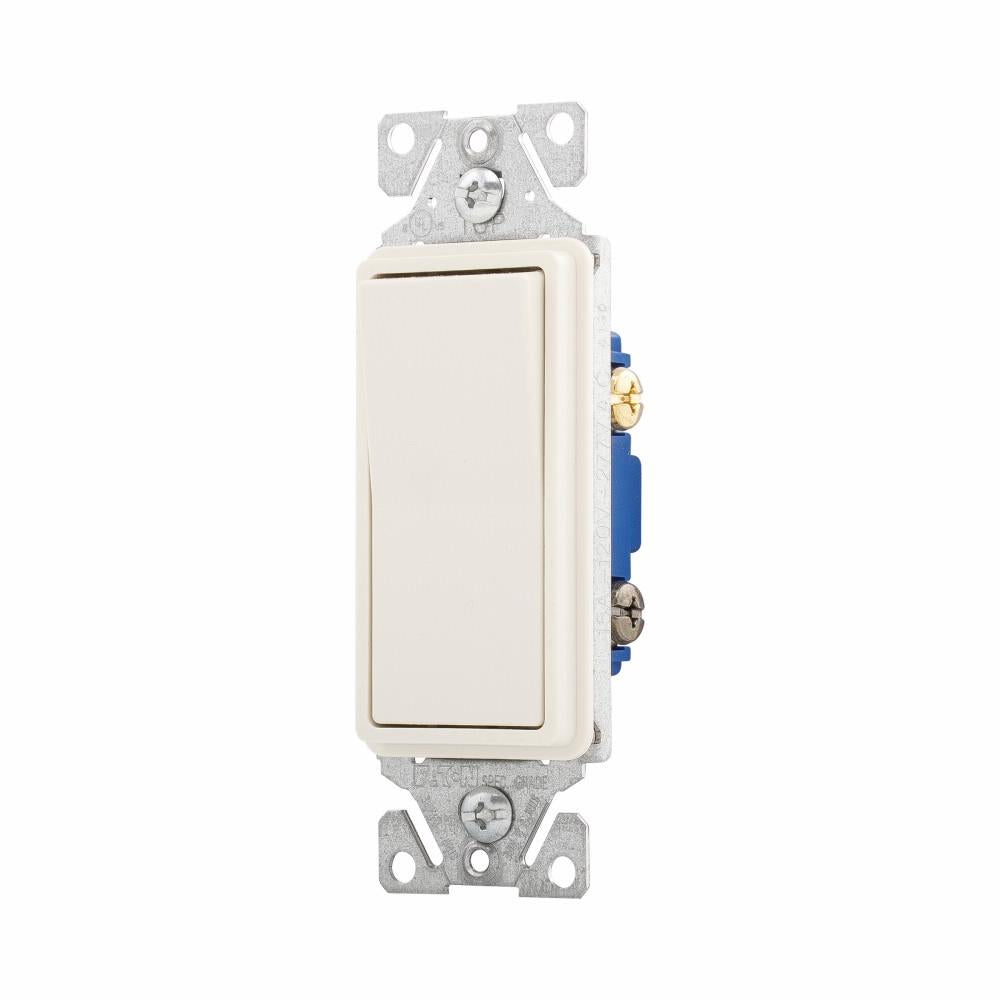

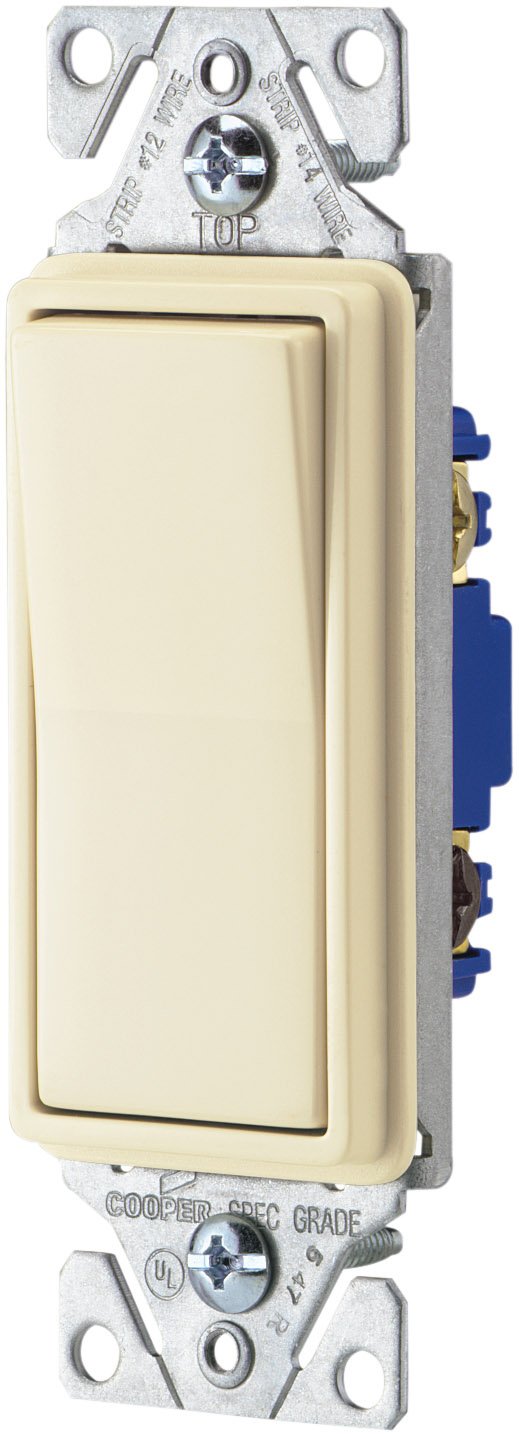

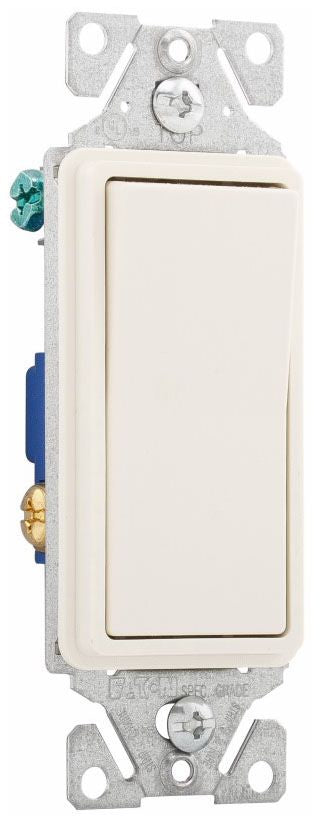

Eaton 7503LA 3-Way Standard Grade Decorator Switch 15A

Product Description

The EATON 7503LA is a 3-Way Standard Grade Decorator Switch. Ultrasonic welding and integrated construction of the strap and body provide superior integrity. The thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance. It has a 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications.

• Ultrasonic welding and integrated construction of the strap and body provide superior integrity
• Lighted switches glow in off position
• Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance

Product Highlights

This decorator switch features tri-combo screws that accept slotted, Phillips and Robertson head tools for installation flexibility. It also has a patented built-in wire stripper for 12 AWG and 14 AWG wire to speed installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7503LA
• Country of Origin: USA

Technical Specifications

• Actuator: Paddle
• Color: Light Almond
• Environmental Conditions: -20 to 60 deg C Operating Temperature
• Material: Thermoplastic
• Mounting: Wall
• Number of Poles: 1
• Series: 7500

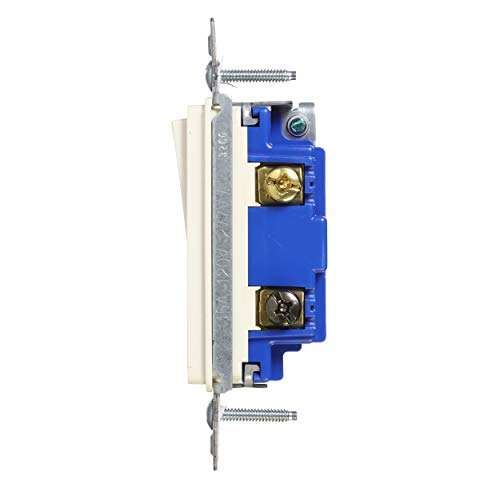

• Terminal Type: Back/Side Wire/Push-In/Screw
• Type: 3-Way Standard Grade
• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Switch Type: 3-Way
• Wire Size: 14 to 12 AWG
• Application: Residential
• Mounting Type: Flush
• Applicable Standard: RoHS, NAFTA
• Load type: INC Motor Control LED Fan ELV MLV FLR CFL HAL
• Compliances: NAFTA RoHS Compliant
• Certifications: cULus Listed
• Product Type: Standard grade decorator switch
