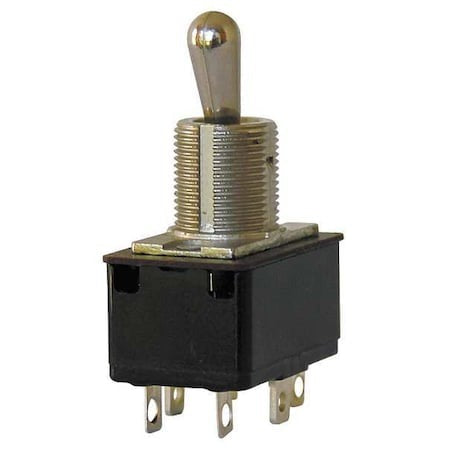

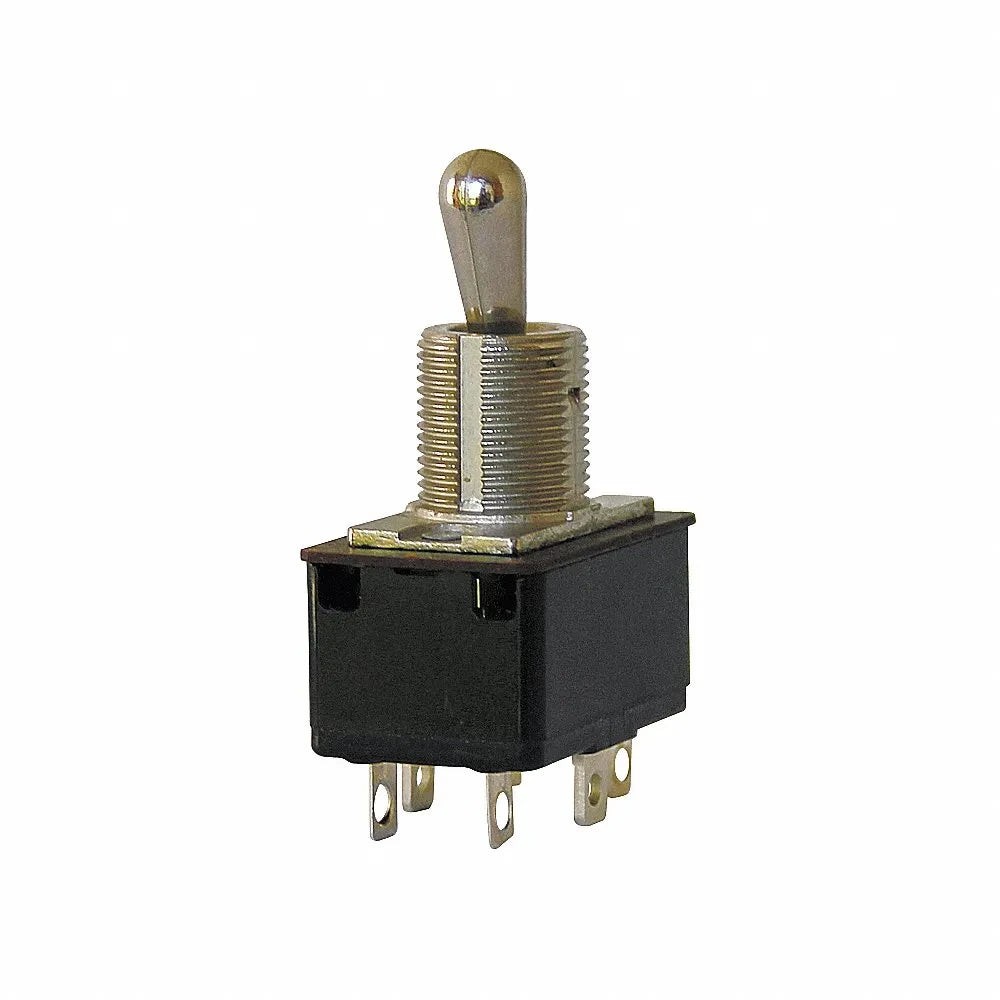

Eaton 7503K13 General Purpose AC Rated Toggle Switch 15A 125VAC / 10A 250VAC (0.469 in Bushing)

EATON
Brand: EATON
SKU: 7503K13
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton 7503K13 is a general-purpose AC-rated toggle switch with a single-pole double-throw (SPDT) ON-OFF-ON configuration. It features a 0.469 in bushing and 0.563 in lever, solder lug terminals, and panel-mount threaded bushing. Electrical ratings are 15 A at 125 VAC and 10 A at 250 VAC with motor ratings of 0.5 hp at 125 V and 0.75 hp at 250 V. Standards include CSA certification and UL recognition.

  • Electrical rating: 15 A at 125 VAC; 10 A at 250 VAC; motor rated 0.5 hp at 125 V and 0.75 hp at 250 V
  • Mechanical: 0.469 in bushing, 0.563 in lever; panel-mount with threaded bushing and 0.50 in panel hole
  • Terminals and construction: solder lug terminations, thermoset material; certified CSA and UL recognized

Product Highlights

SPDT ON-OFF-ON toggle switch; solder lug terminals; 0.469 in bushing

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 7503K13
  • Country of Origin: Mexico
Technical Specifications
Brand
Eaton
Manufacturer Part Number
7503K13
Series
7500 Series
Product Type
Toggle switch
Contact Configuration
SPDT (single-pole double-throw)
Switch Function
ON-OFF-ON
Number of Poles
1
Number of Positions
3
Bushing Length
0.469 in
Lever / Actuator Length
0.563 in
Actuator Style
Toggle bat lever
Termination / Terminal Type
Solder lug
Mounting Type
Panel mount (threaded bushing)
Mounting Hole Diameter
0.50 in
AC Contact Rating
15 A at 125 VAC; 10 A at 250 VAC
Voltage Rating
125/250 VAC
Horsepower Rating
0.5 hp at 125 V; 0.75 hp at 250 V
Material
Thermoset
Dimensions
1.312 in L x 0.75 in W x 1.2 in H
Operating Temperature
0 to 150 deg F
Certifications
CSA certified; UL recognized; RoHS compliant
Country of Origin
Mexico
Weight
23 g (0.05 lbs)
UPC
786685676135
GTIN
00786685676135
