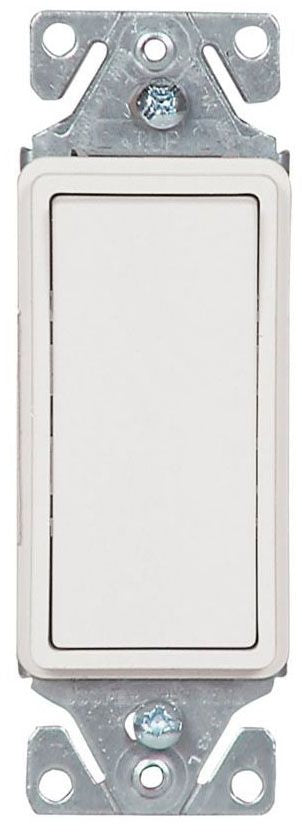

Eaton 7501W Single Pole Switch 15A 120/277VAC

Product Description

The EATON 7501W is a single-pole toggle switch rated for 15 amps at 120/277 volts AC. It is designed for controlling lighting circuits and general-purpose electrical loads in both residential and commercial wiring applications. The single-pole configuration makes it a direct, straightforward replacement or new-installation component for standard branch-circuit switching. Electricians install this switch as part of code-compliant wiring work in panel-fed lighting or receptacle circuits where a single control point is required.

This switch is suited for use in single-pole switching applications across residential, commercial, and light industrial environments. Its 120/277V rating makes it compatible with both standard residential 120-volt circuits and commercial 277-volt fluorescent or LED lighting systems, covering the two most common single-phase branch-circuit voltages found in North American installations.

Key Features

• 15-amp rating handles standard branch-circuit loads
• Dual voltage rating covers 120V residential and 277V commercial lighting circuits
• Single-pole configuration for straightforward one-location switching
• White finish for compatibility with standard electrical wallplates

Compatibility

Designed as an OEM-style replacement or new-installation single-pole switch for standard 15-amp branch circuits in residential and commercial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and verify the absence of voltage with a meter before wiring. The switch must be mounted in a listed electrical box appropriate for the wiring method used. Do not exceed the 15-amp or 277-volt ratings of this device.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120/277 volts AC
• Pole Configuration: Single Pole
• Weight: 0.01 pounds
• UPC: 03266462759

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7501W
