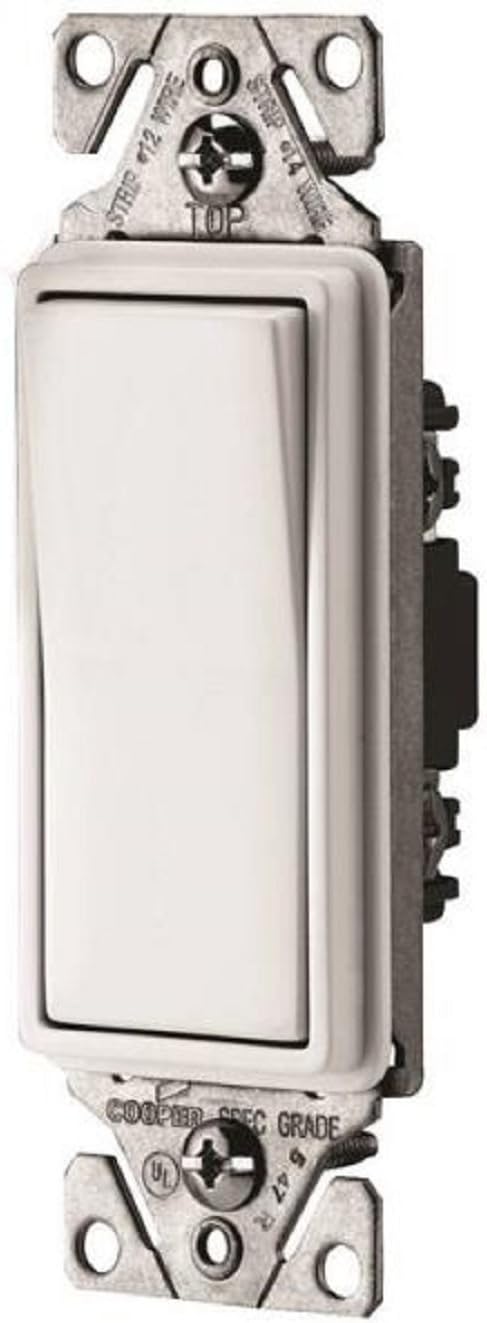

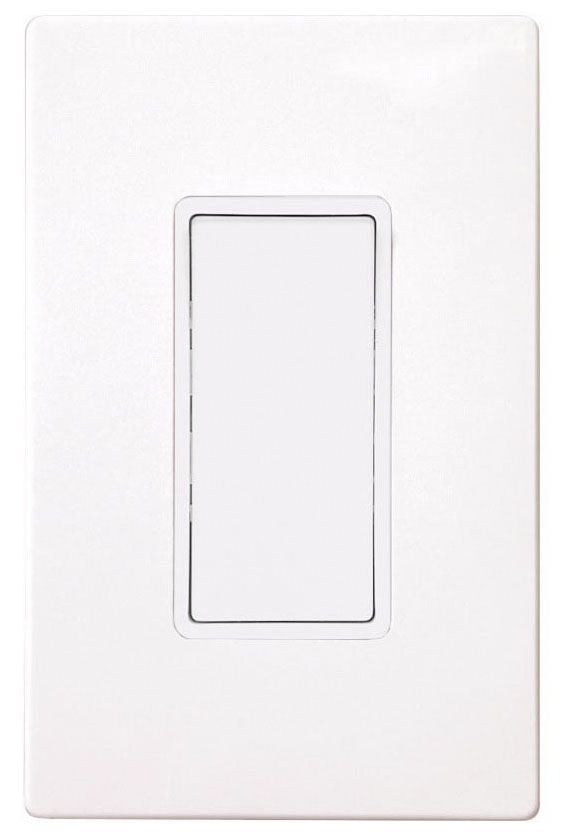

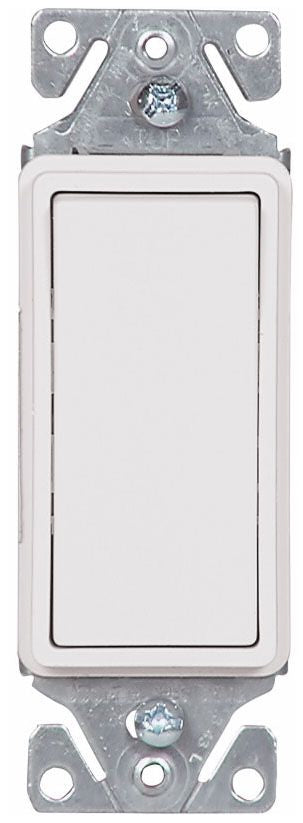

Eaton 7501W Deco Rocker Switch, 15 A, 120/277 V

Product Description

The Eaton 7501W Deco Rocker Switch is a standard grade single pole decorator switch. Features include ultrasonic welding and integrated construction of the strap and body for superior integrity. Backwire clamps on the side terminals allow easy installation of #12 and #14 wire. The 120/277V/AC rating is ideal for fluorescent lighting fixtures.

• Deco Rocker Switch
• Ultrasonic welding and integrated construction of the strap and body provide superior integrity
• Backwire clamps on the side terminals provide for easy installation of #12 and #14 wire

Product Highlights

This Eaton 7501W rocker switch has a thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7501W
• Country of Origin: USA

Technical Specifications

• Material: Thermoplastic
• Switch Style: Rocker Switch
• Certification: UL, cUL
• Voltage Rating: 120/277 V
• Current Rating: 15 A
• Operation Type: 1-Pole
• Wiring: Back, Push
• Application: Lighting Fixture
• Approval: UL (Canada and US)
• RoHS Compliant: Yes
• Mounting Type: Flush
• Load Type: Motor Control/Fan/LED/Incandescent/ELV/MLV/CFL/Fluorescent/Halogen
• Wire Size: 14 to 12 AWG
• Number of poles: Single-pole
• Phase: Single-phase
• Wiring method: Back and push
• Switch type: Single-pole
• Mounting method: Flush
• Closure type: Maintained
• Load type: Motor Control HAL LED CFL MLV ELV INC Fan FLR
• Actuator: Decorator
• Compliances: RoHS Compliant NAFTA
• Certifications: cULus Listed
• Product Type: Standard grade decorator switch
• Contact Configuration: SPST
• Contact Material: Brass
• Housing Material: Thermoplastic
• Number Of Poles: 1
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Push Wire
