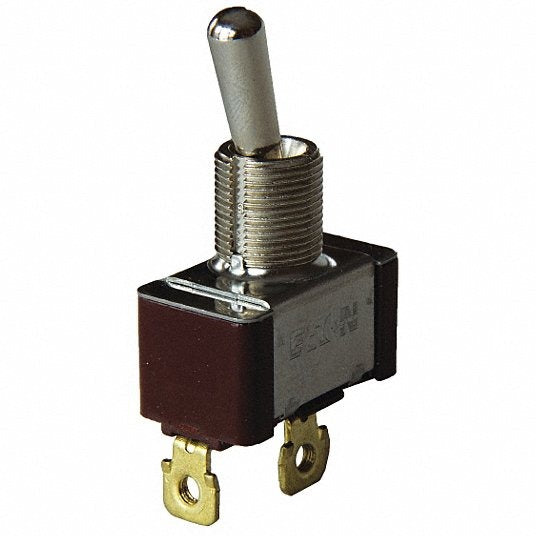

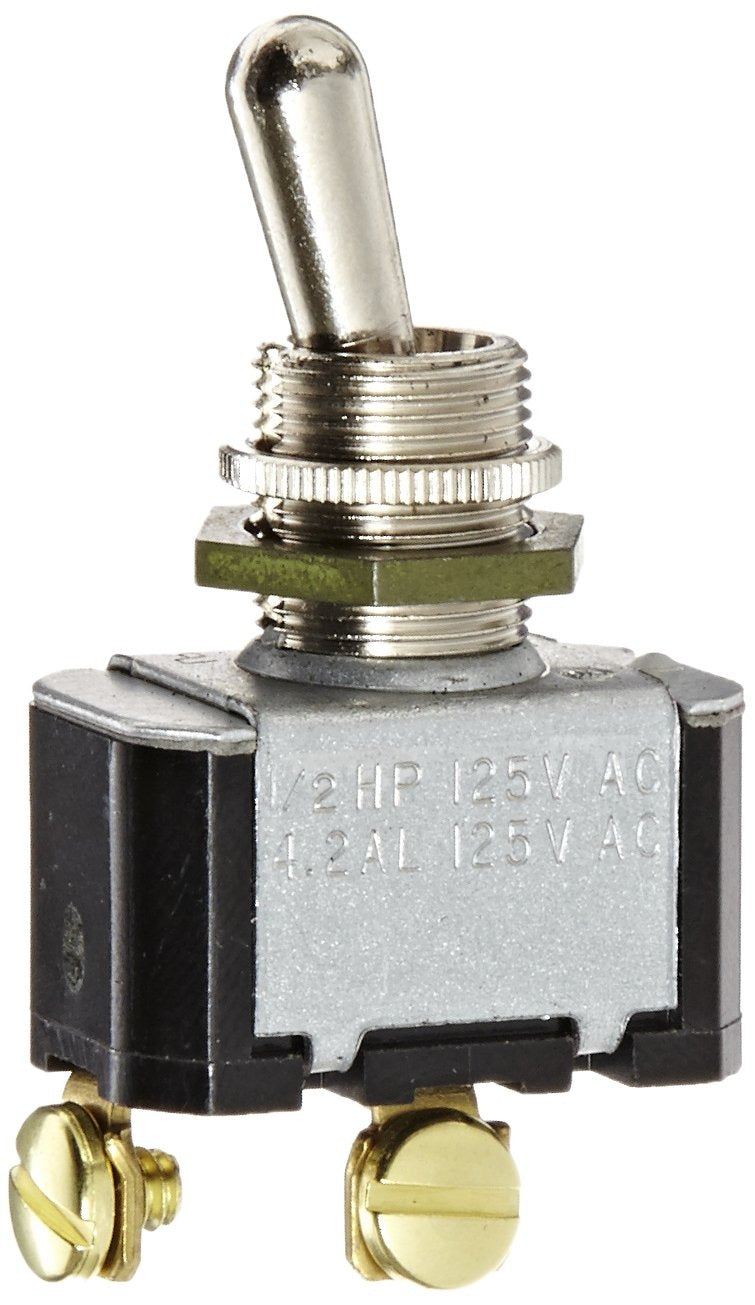

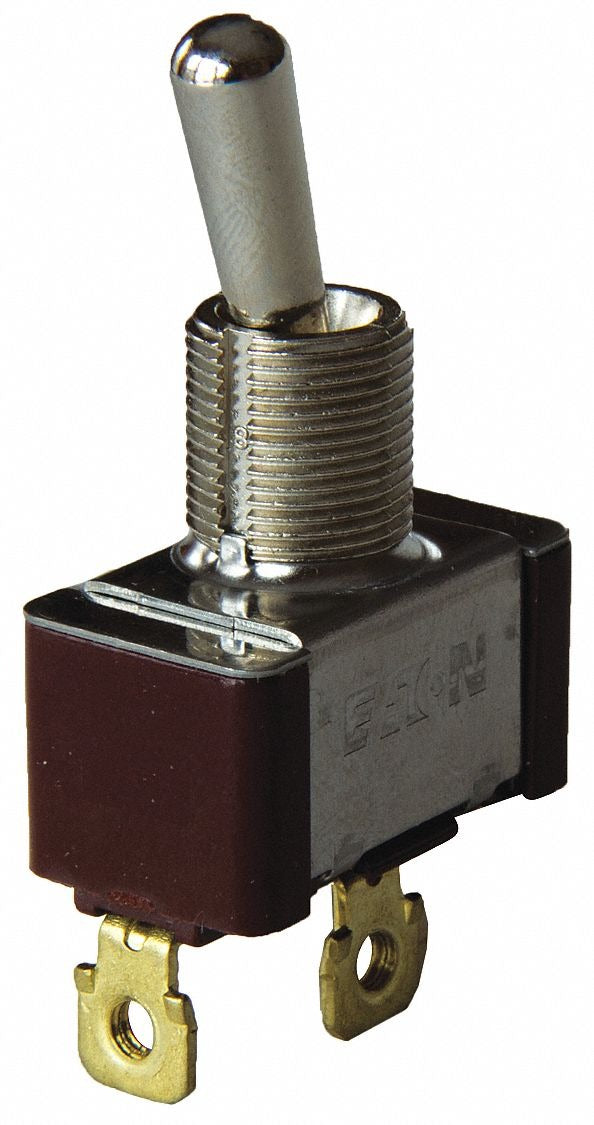

Eaton 7500K14 General purpose toggle switch 15A 125/250 VAC (panel mount)

EATON
Brand: EATON
SKU: 7500K14
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton 7500K14 is a general-purpose AC-rated single-pole single-throw (SPST) toggle switch with screw termination and On‑None‑Off actuator action. It is rated 15 A at 125 VAC and 10 A at 250 VAC, with motor ratings up to 1/2 hp at 125 VAC and 3/4 hp at 250 VAC. The switch uses a threaded panel-mount bushing and a thermoset body for equipment and panel control applications.

  • SPST contact configuration with On‑None‑Off actuator and screw terminal connections
  • Contact ratings: 15 A at 125 VAC; 10 A at 250 VAC; motor ratings: 1/2 hp (125 VAC), 3/4 hp (250 VAC)
  • Panel-mount threaded bushing (0.469 in), lever length 0.563 in, thermoset body; UL and CSA recognized; RoHS compliant

Product Highlights

AC-rated SPST toggle switch for threaded panel mounting with screw terminals and 15 A/125 VAC contact rating

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 7500K14
  • Country of Origin: Mexico
Technical Specifications
Brand
Eaton
MPN
7500K14
Type
General purpose toggle switch
Series
7500
Contact Configuration
SPST (single pole single throw)
Switch Function
On-None-Off
Termination
Screw terminal
Terminal Type
Screw
Voltage Rating
125/250 VAC
Contact Current Rating
15 A at 125 VAC; 10 A at 250 VAC
Power Rating (Horsepower)
1/2 hp at 125 VAC; 3/4 hp at 250 VAC
Number of Poles
1
Mounting
Panel mount (threaded bushing)
Actuator Style
Bat/round lever
Bushing Diameter
0.469 in
Lever Length
0.563 in
Dimensions (L x W x H)
1.312 in x 0.75 in x 1.2 in
Material
Thermoset body
Operating Temperature
0 to 150 deg F
Standards/Approvals
UL recognized; CSA
RoHS
Compliant
Contact Plating
Silver
Illumination
Illuminated (reported by distributors)
Country of Origin
Mexico
GTIN / UPC
00786685676050
ASIN
B005T56Q9U
National Stock Number
5930-00-359-5500
