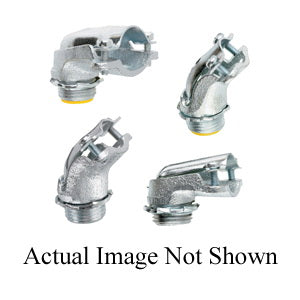

Eaton 747 4-IN 90 DEG 2SCR FLEX CONN

Product Description

The Eaton 747 4-IN 90 DEG 2SCR FLEX CONN is a reliable clamp type connector designed to provide secure connections for flexible conduit applications. This product is part of the Crouse-Hinds series, which is recognized for its durability and effectiveness in commercial and institutional building settings. The connector is crafted from malleable iron and features a zinc-plated finish for added corrosion resistance.

• 90-degree angle for versatile installation options
• Compatible with threaded NPSM connections
• Suitable for use in Class I Division 2 environments

Product Highlights

This model is ideal for a range of applications in various building structures and ensures a strong hold for flexible conduits.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Size: 4 In
• Type: Clamp type connector
• Material: Malleable Iron
• Finish: Zinc Plated
• Weight: 14.3 lbs
• Dimensions: 10.7 in X 10.2 in X 11.1 in
• Application: Commercial / Institutional Buildings
• Enclosure: Class I Div 2
• Standard: UL; CUL
