Eaton 740 1-1/4-IN 90 DEG 2SCR FLEX CONN

Product Description

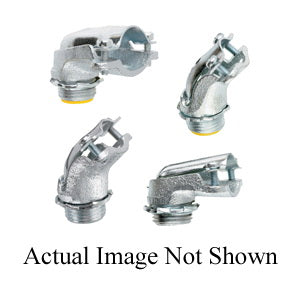

The Eaton Crouse Hinds 740 is a 90-degree connector designed for trade size one and one-quarter inches. It is made from malleable iron, ensuring durability and longevity. This connector is non-insulated and features a zinc-plated finish, providing corrosion resistance. With an opening diameter of one and twenty-one thirty-seconds inches, it allows easy clamping of AC, MC, and FMC cable to a box or enclosure.

• Constructed from malleable iron
• Suitable for armored cable and flexible metallic conduit
• Designed to withstand a temperature rating of 105 degrees Celsius

Product Highlights

This product meets UL and cULus standards, ensuring safety and compliance for commercial and institutional applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Type: Non-Insulated
• Size: One and one-quarter inches
• Material: Malleable Iron
• Finish: Zinc Plated
• Connection Type: Clamp x Male NPSM
• Standards: UL E19188, cULus Certified
• Dimensions: Three point eight eight inches x one point two five inches x one point eight one inches
• Temperature Rating: One hundred five degrees Celsius
