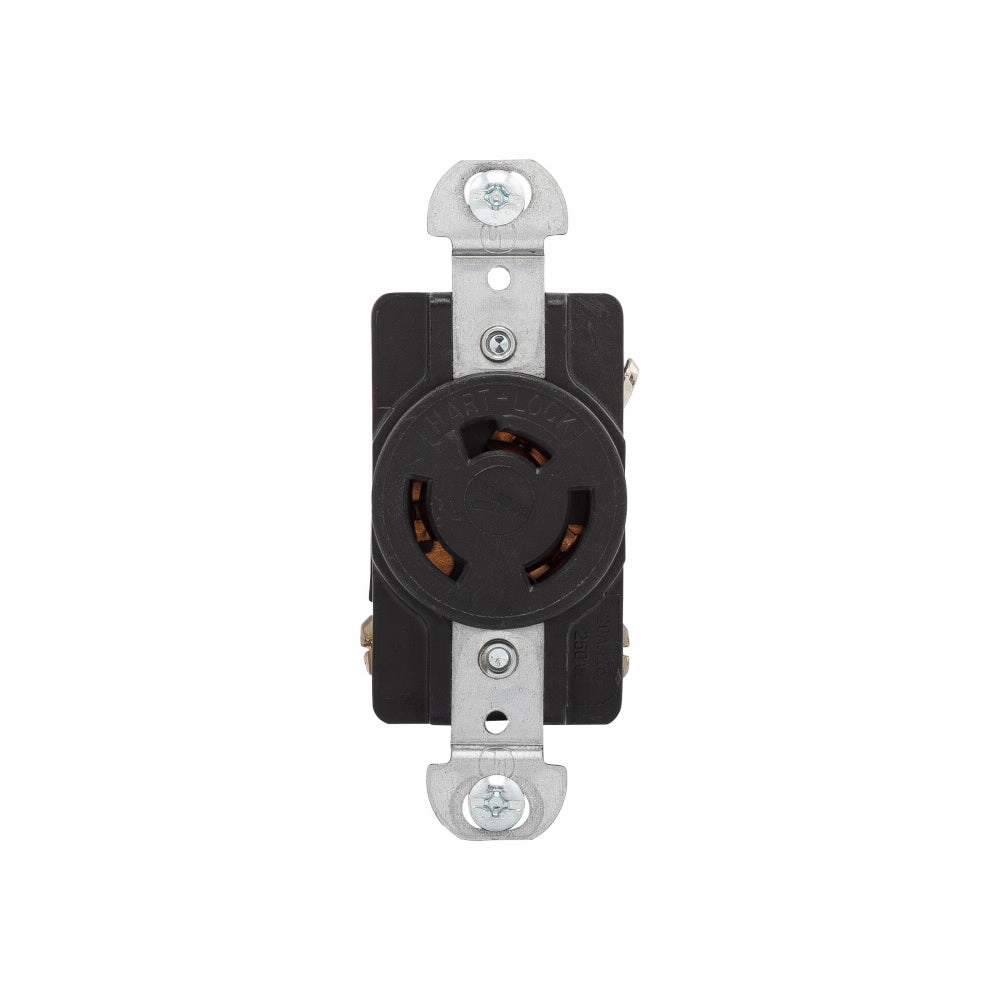

Eaton 7310B CWD LKG RECEPT 3P3W 20A 125/250V NON-NEMA

Product Description

Eaton 7310B is a single watertight locking receptacle designed for industrial use. This receptacle operates on 125/250 VAC, supporting 20 A with a three-pole, three-wire configuration. It is suitable for cords with diameters ranging from 0.38 to 1 inches. The receptacle can handle temperatures from -40 to 60 degrees Celsius and features screw terminals for secure wiring.

• Rugged nylon construction withstands harsh environments
• Neoprene gland guards against contamination at the cord entry
• Compatible with 14 to 8 AWG wire

Product Highlights

The Eaton 7310B is engineered for locking device applications, ensuring safety and reliability in numerous settings.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 04089368145

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125/250 VAC
• Number of Poles: 3
• Number of Wires: 3
• Application: For locking device applications
• Temperature Rating: -40 to 60 degrees Celsius
• Terminal Type: Screw
• Dimensions: 1.06 in H x 1.62 in W x 3.64 in D
• Standards/Approvals: UL Listed
