Eaton 713 2-IN MALL SQZ FLEX CONN

Product Description

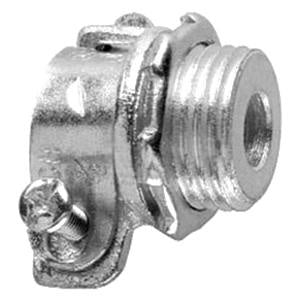

Eaton Crouse-Hinds model 713 is a two-inch squeeze type connector. It is designed for flexible metallic conduits (FMC) and has a malleable iron construction. This connector is straight and non-insulated. The connection method is squeeze x male NPSM, ensuring reliable installation in electrical systems.

• Made from malleable iron
• Zinc-plated finish for corrosion resistance
• Suitable for use with AC, MC, and FMC cables

Product Highlights

This product is ideal for commercial and institutional buildings. It can withstand temperatures of up to one hundred five degrees Celsius and is UL and cUL listed.

Product Information

Standard Information

• Brand: Eaton
• MPN: 713

Technical Specifications

• Finish: Zinc Plated
• Material: Malleable Iron
• Type: Squeeze type connector
• Size: 2 Inch
• Conductor Range: 2-1/2 Inch
• Temperature Rating: 105 deg C
• Weight: 1 lb
• Dimensions: 2.7500 inches x 2.6900 inches x 2.6900 inches
• Standards: UL E19189 Listed, cUL Certified
