Eaton 709 3/4-IN MALL SQZ FLEX CONN

Product Description

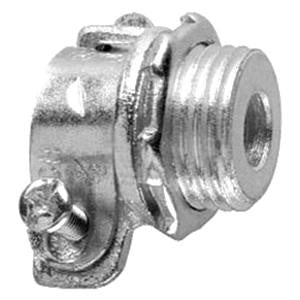

The Eaton Crouse-Hinds 709 is a three-quarter inch malleable iron squeeze type connector. It is designed for use with flexible metallic conduits, providing a reliable method to connect cable to a box or enclosure. This connector features a non-insulated design and includes a zinc-plated finish for added durability.

• Made from durable malleable iron
• Temperature rating of one hundred five degrees Celsius
• Compatible with AC, MC, and FMC cables

Product Highlights

This connector is UL and cUL listed, ensuring compliance with safety standards. It has a cable opening of one and one-eighth inches and a bushed hole diameter of three-quarters inches. The squeeze x male NPSM connection type makes installation straightforward.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Finish: Zinc Plated
• Material: Malleable Iron
• Weight: 0.22 lbs
• Dimensions: 1.63 inches x 1.75 inches x 1.75 inches
• Connection Type: Squeeze x Male NPSM
• Standards: UL E19189 Listed, cUL Certified
• Trade Size: 3/4 Inch
• Conductor Range: 1-1/8 Inch
• Temperature Rating: 105 degrees Celsius
• Application: Commercial and Institutional buildings
