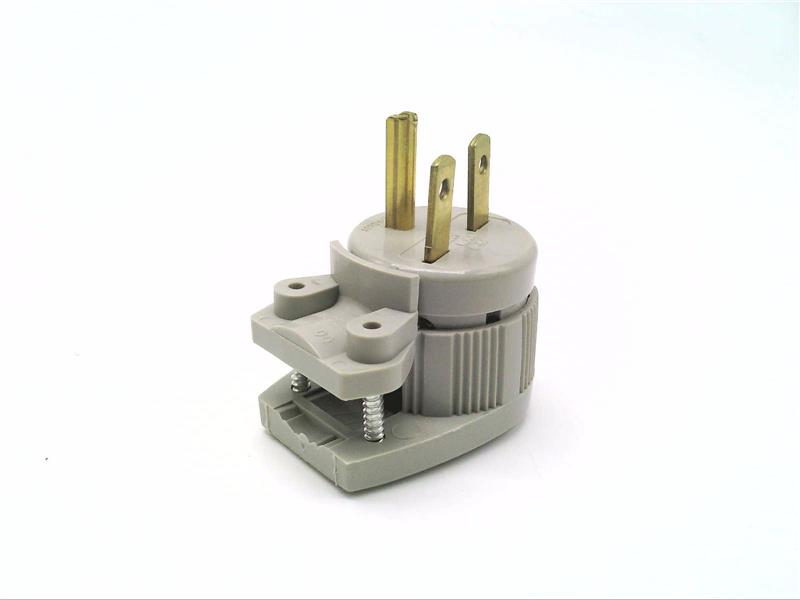

Eaton 6665HG Arrow Hart safety grip hospital grade straight blade angled plug 15A

Product Description

The Eaton 6665HG Arrow Hart safety grip hospital grade straight blade angled plug is designed for industrial applications. Rated for 15A and 250V, this two-pole, three-wire grounding plug features back wiring and a screw connection. It accepts #18-12 AWG wire and has a NEMA 6-15P configuration.

• Hospital Grade - identified with a green dot.
• Nylon back-wired Dead-Front construction.
• Neoprene gasket seals cord hole on straight plugs and connectors.

Product Highlights

Safety grip hospital grade straight blade angled plug with nylon construction and back wire.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 6665HG

Technical Specifications

• Device type: Plug
• Type: Angled plug
• Amperage Rating: 15A
• Voltage rating: 250V
• Contact material: Brass
• Application: Industrial
• Device grade: Extra heavy-duty hospital grade
• Wiring method: Back wire
• Number of wires: 3
• Number of poles: Two-pole
• Style type: Angled body
• Material: Nylon
• Packaging type: Core pack
• Connection type: Screw
• Allowable wire size: #18-12 AWG
• NEMA configuration: 6-15P
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Nylon
• Receptacle type: Two-pole, three-wire, grounding
• Manufacturer Part Number: 6665HG
• Manufacturer: Eaton
• Family Series: Eaton Plugs & Receptacles
• Current Rating: 15 A
• Voltage: 250 VAC
• Maximum Amperage: 15 Amp
• Maximum Voltage: 250V
• Category: Plug/Receptacle
