Eaton 664SCNK SC enclosure w/o KO (6 x 6 x 4 in)

Product Description

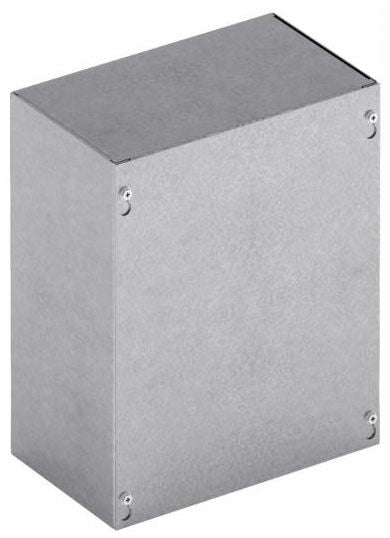

Eaton 664SCNK is a Type 1 indoor junction box constructed from 16-gauge steel with an acrylic electrocoated finish over a phosphatized surface. The SC NK enclosure measures 6 x 6 x 4 inches, features a screw-on cover with plated screws, and is designed for wall or surface mounting with thru holes and keyhole slots. It is NEMA 1, IP20 rated and certified to UL 50, CSA C22.2 and IEC 529 for wiring, junction, and pull box applications.

• 16-gauge steel construction with acrylic electrocoated finish; dimensions 6 x 6 x 4 in
• NEMA 1 / IP20 enclosure rating; approvals UL 50, CSA C22.2, IEC 529
• Screw-on cover with plated screws; no knockouts; wall/surface mounting with thru holes and keyhole slots

Product Highlights

Type 1 indoor junction box, 6 x 6 x 4 in, 16-gauge steel, NEMA 1/IP20

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 664SCNK
• Country of Origin: US

Technical Specifications

• Brand: Eaton
• MPN: 664SCNK
• Model: SC NK (no knockout)
• Product Type: Type 1 junction box
• Material: Steel
• Wall Thickness: 16 gauge
• Finish: Acrylic electrocoated over phosphatized surface
• Dimensions (H x W x D): 6 in x 6 in x 4 in
• Weight: 3.05 lb
• Enclosure Rating: NEMA 1
• IP Rating: IP20
• Cover Type: Screw-on (plated screws)
• Knockouts: None (no knockouts)
• Mounting Type: Wall mount / Surface mount
• Mounting Hole Details: Thru holes; keyhole slots on cover
• Certifications: UL 50; CSA C22.2; IEC 529
• Application: Wiring, junction and pull box applications
• Country of Origin: USA
• UPC: 782051221312
