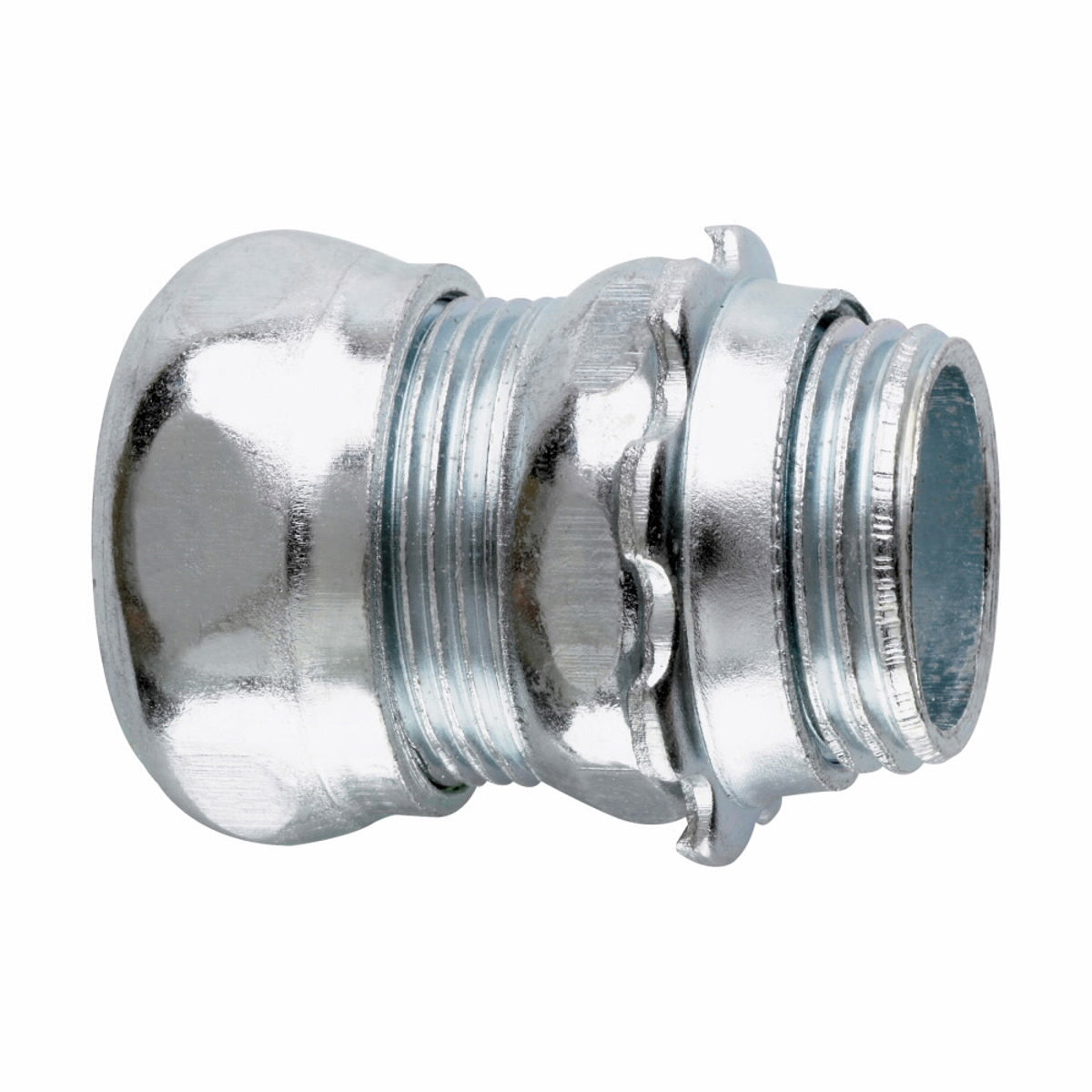

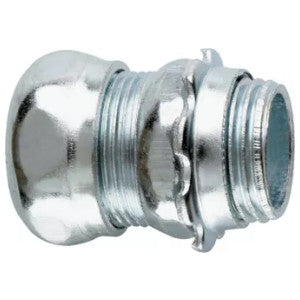

Eaton 654 Crouse-Hinds series EMT compression connector 1-1/2 inches

Product Description

The Eaton 654 Crouse-Hinds series EMT compression connector joins EMT conduit to a box or enclosure, or to couple two ends of EMT conduit. It is straight, non-insulated, and threadless. It is also available painted in seven different colors to better match architectural specifications and preferences.

• Joins EMT conduit to a box or enclosure
• Steel construction with zinc plating
• Suitable for commercial and institutional buildings

Product Highlights

The Eaton Crouse-Hinds series EMT compression connector is a reliable solution for connecting EMT conduit in various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 654
• Country of Origin: India

Technical Specifications

• Catalog Number: 654
• Manufacturer: Eaton Crouse-Hinds
• Brand: Eaton
• Sub Brand: Crouse-Hinds series
• Country of Origin: India
• Made in USA: No
• Application: To join EMT conduit to a box or enclosure, Commercial, Institutional Buildings, Structures
• Finish: Zinc Plated
• Material: Steel
• Standard: UL, CUL
• UPC: 784564106544
• GTIN: 00784564106544
• Item Type: Compression connector
• Size: 1-1/2 In
• Cross Reference Products: 7150S
• Standards/Approvals: UL File No. E22132|cUL Listed
• Suitable For Use With: EMT Conduit
• Trade Size: 1-1/2 in
• Type: Non-Insulated Straight
• Product Length/Depth: 4.14 in
• Product Height: 1.15 in
• Product Width: 2.61 in
• Product Weight: 0.54 lb
• Product Type: Compression connector
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Conduit type: EMT
• Connector type: Straight
• Style: Compression
• Insulator: Non-insulated
• Thread: Threadless
• Throat Type: Non-Insulated
