Product Description

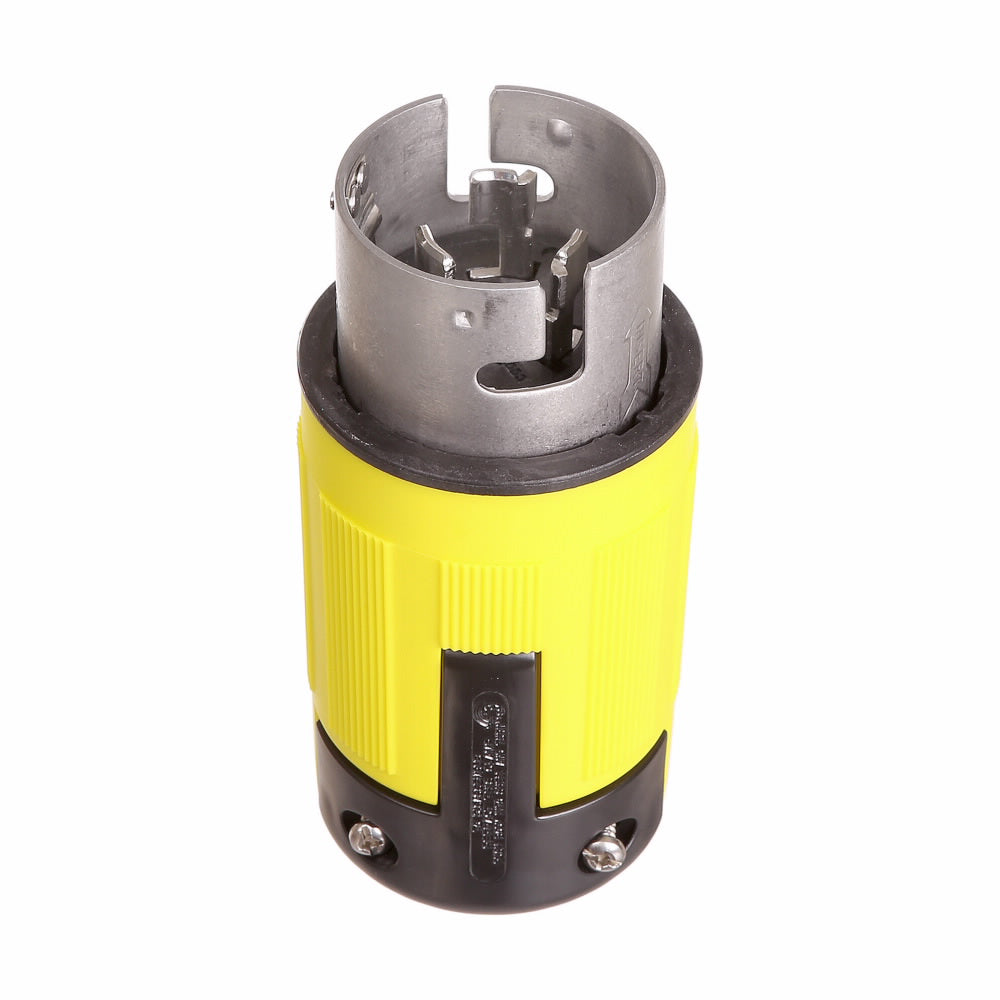

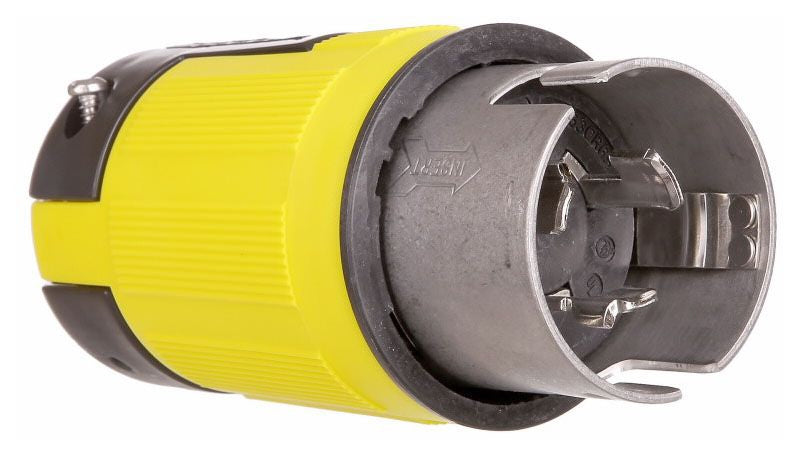

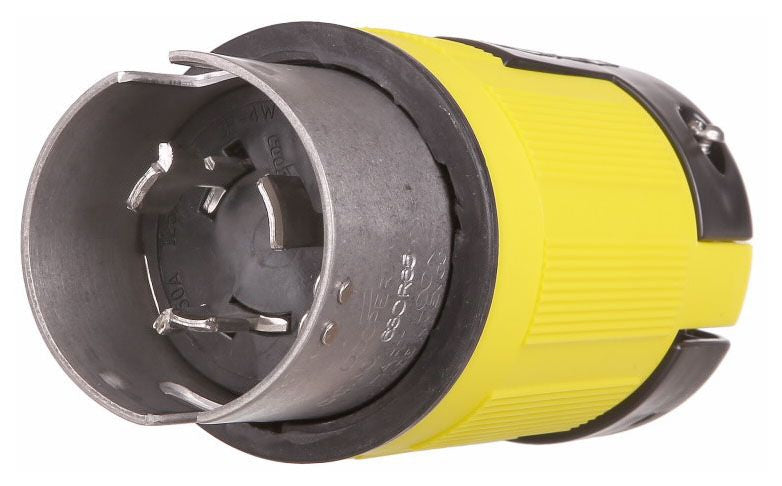

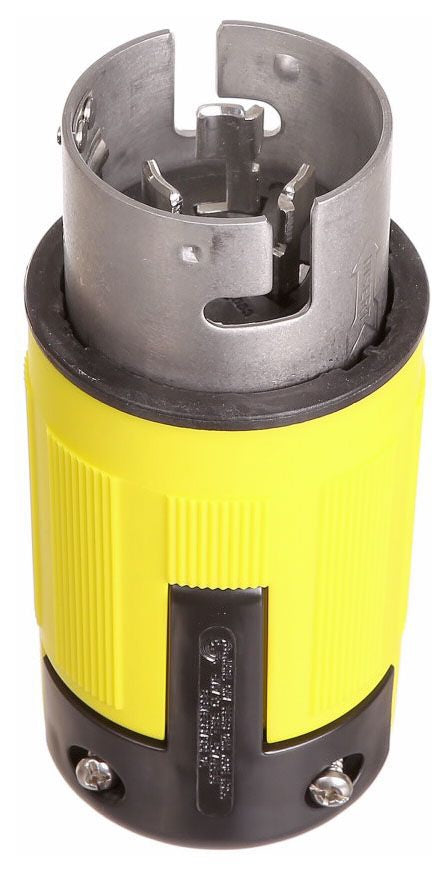

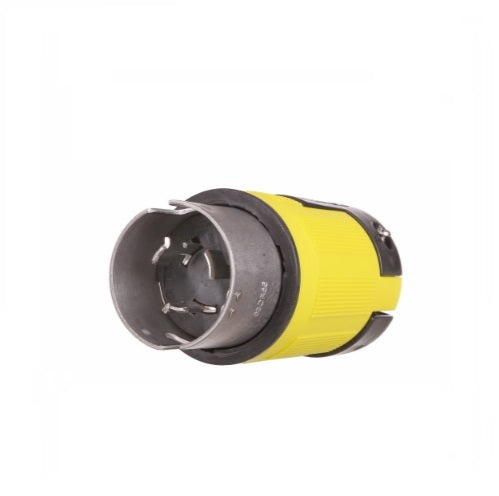

The EATON 63CR65EX is a locking plug designed for industrial and marine applications. Rated at 125/250 VAC and 50A, this plug features a 3-pole, 4-wire configuration. It accommodates cord diameters from 0.44 to 1.06 inches and uses back wire terminals. Constructed with a steel material, it measures 6.94 in L x 3.61 in W x 3.38 in H.
- 12 to 6 AWG wire
- Industrial grade high current plug
- Corrosion resistant
Product Highlights
This EATON locking plug is suitable for locking devices and industrial facilities. It is CSA Certified, cULus Listed, and UL Listed.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 63CR65EX
-
Country of Origin: MEX
Technical Specifications
-
Amperage Rating: 50 A
-
Application: For locking device and industrial facilities and factories facility applications
-
Color: Black/Yellow
-
Cord Diameter: 0.44 to 1.06 in
-
Grade: Industrial/Marine
-
Manufacturer Part Number: 63CR65EX
-
Material: Steel
-
Number of Poles: 3
-
Number of Wires: 4
-
Standards/Approvals: CSA Certified|cULus Listed|UL Listed
-
Terminal Type: Back Wire
-
Voltage Rating: 125/250 VAC
-
Wiring Type: Back
-
Temperature Rating: -40 to 221 Deg F
-
UPC: 032664663826
-
Product Length/Depth: 6.94 in
-
Product Height: 3.38 in
-
Product Width: 3.61 in
-
Certifications: cULus Listed CSA certified
-
Product Type: Corrosion resistant
-
Special features: Corrosion resistant
-
Type: Locking plug
-
Contact material: Nickel plated brass
-
Device grade: Marine
-
Wiring method: Back
-
Environmental resistance: Impact and chemical resistant
-
Operating temperature: -40 to 105 �C (-40 to 221 �F)
-
Allowable wire size: #12-6 AWG
-
NEMA configuration: Non-NEMA
-
Torque rating: 45 lbf-inch
-
Design type: Pro grip
-
Face/body material: Glass filled nylon
-
Product Series: Pro Grip 50A Marine Grade
-
Family Series: Eaton Plugs & Receptacles, Pro Grip 50A Marine Grade Series
-
Current Rating: 50 A
-
Phase: 1
-
Body Type: Straight
-
Connection Type: Plug
-
Watertight: No
-
Special Properties: Corrosion Resistant
-
Isolated Ground: No
-
Approvals: UL
-
Maximum Amperage: 50 Amp
-
Maximum Voltage: 125V-250V
