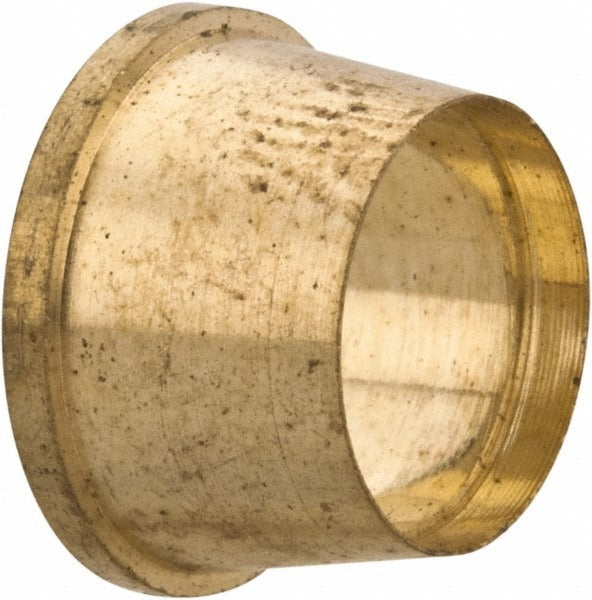

Eaton 601X5 Brass Compression Tube Sleeve 5/16 Inch Od

Product Description

The EATON 601X5 is a brass compression tube sleeve designed to join or extend tubing runs using compression-style end connections on both sides. The sleeve accepts tubing with a 5/16 inch outside diameter and measures 0.26 inches in overall length. Constructed from brass, it provides corrosion resistance and reliable sealing performance across a wide temperature range of -65 degrees F to 121 degrees C (approximately 250 degrees F). Plumbers, HVAC technicians, and refrigeration mechanics install this fitting type in fluid and gas distribution lines where a leak-free mechanical connection is required without soldering.

This sleeve is suited for residential and light commercial plumbing, refrigeration, and instrumentation tubing applications. Its compression x compression configuration makes it appropriate for joining two lengths of 5/16 inch OD tubing in-line. It is commonly used in systems where field disassembly or reassembly of tubing connections is required and where heat-based joining methods are not preferred or permitted.

Key Features

• Compression x compression end connections on both sides for tool-accessible, no-solder assembly
• 5/16 inch tube outside diameter compatibility for precise fit on standard small-bore tubing
• Brass construction for corrosion resistance and durability in fluid and gas service
• Wide service temperature range: -65 degrees F to approximately 250 degrees F
• Meets ASA, ASME, and SAE standards
• Compact 0.26 inch overall length minimizes space requirements in tight installations

Compatibility

Designed as a standard compression-style tube sleeve for 5/16 inch OD tubing used in plumbing, HVAC, refrigeration, and instrumentation systems where ASA, ASME, or SAE-compliant compression fittings are specified.

Installation Notes

Installation is performed by licensed plumbers or qualified HVAC and refrigeration technicians. Shut off system pressure and depressurize the line before disassembling or installing any compression fitting. Ensure tubing ends are cut cleanly and deburred before seating the sleeve and compression nut to achieve a proper seal. Do not overtighten compression nuts, as brass fittings can deform the ferrule and cause leaks.
