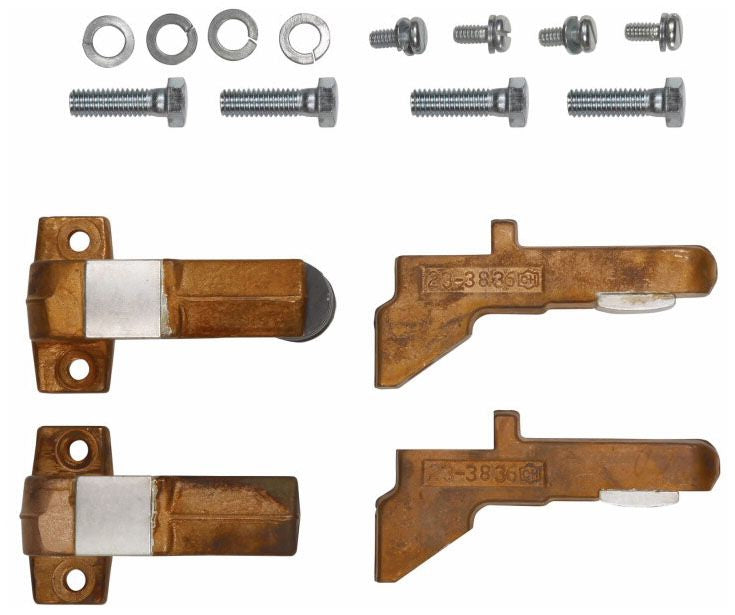

Eaton 6-286 Contactor P/r/s Size

Product Description

The EATON 6-286 is a contactor designed for switching and control applications in electrical power systems. Contactors of this type handle the repeated energizing and de-energizing of motor loads, lighting circuits, and HVAC equipment by opening and closing high-current contacts under the command of a lower-voltage control signal. The 6-286 is rated for P, R, and S frame sizes, making it applicable across a range of load capacities. Licensed electricians and HVAC technicians are the primary installers of this device.

This contactor is suited for commercial and industrial electrical panels, motor control centers, and HVAC packaged equipment where reliable contact switching is required. The P/R/S size designation covers a range of frame configurations, allowing the 6-286 to serve multiple load scenarios within a single part number. It is typically mounted within an enclosure or control panel and wired into the load and control circuits per job specifications.

Key Features

• Rated for P, R, and S frame sizes, covering multiple load capacity ranges
• Designed for repeated switching duty in motor and HVAC load applications
• Low-voltage control circuit actuation for remote and automated operation
• EATON manufactured contactor with UPC 78211391735 for positive product identification

Compatibility

Designed as an OEM-style replacement contactor for electrical control panels and motor control applications requiring a P, R, or S size contactor. Verify frame size and coil voltage requirements against existing equipment specifications before ordering.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the panel or equipment before removing or installing the contactor. Verify coil voltage and load ratings match the existing circuit before making connections. Do not energize the contactor until all wiring connections are inspected and the enclosure is secured.

Technical Specifications

• Frame Size: P, R, S
• UPC: 78211391735

Standard Information

• Brand: EATON
• Manufacturer Part Number: 6-286
