Eaton 5701N cwd grd plug-nema6-30p plug 30A

Product Description

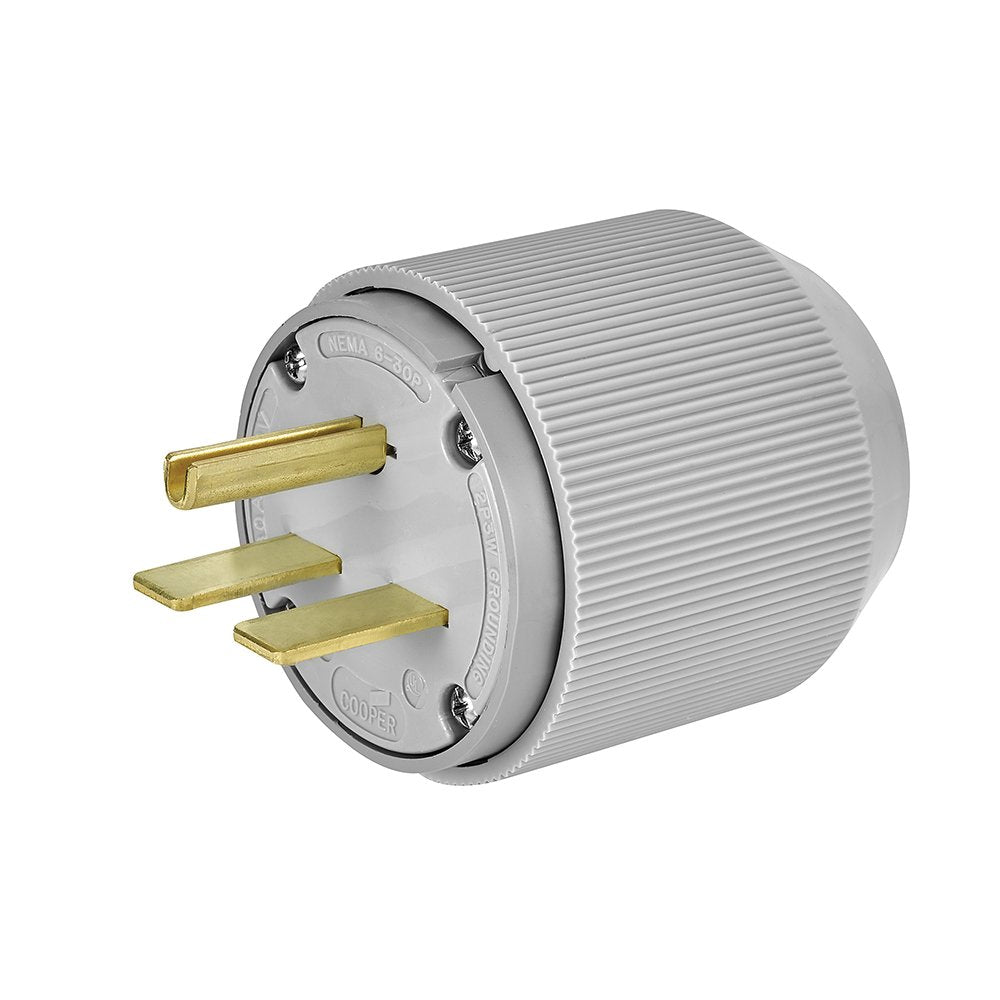

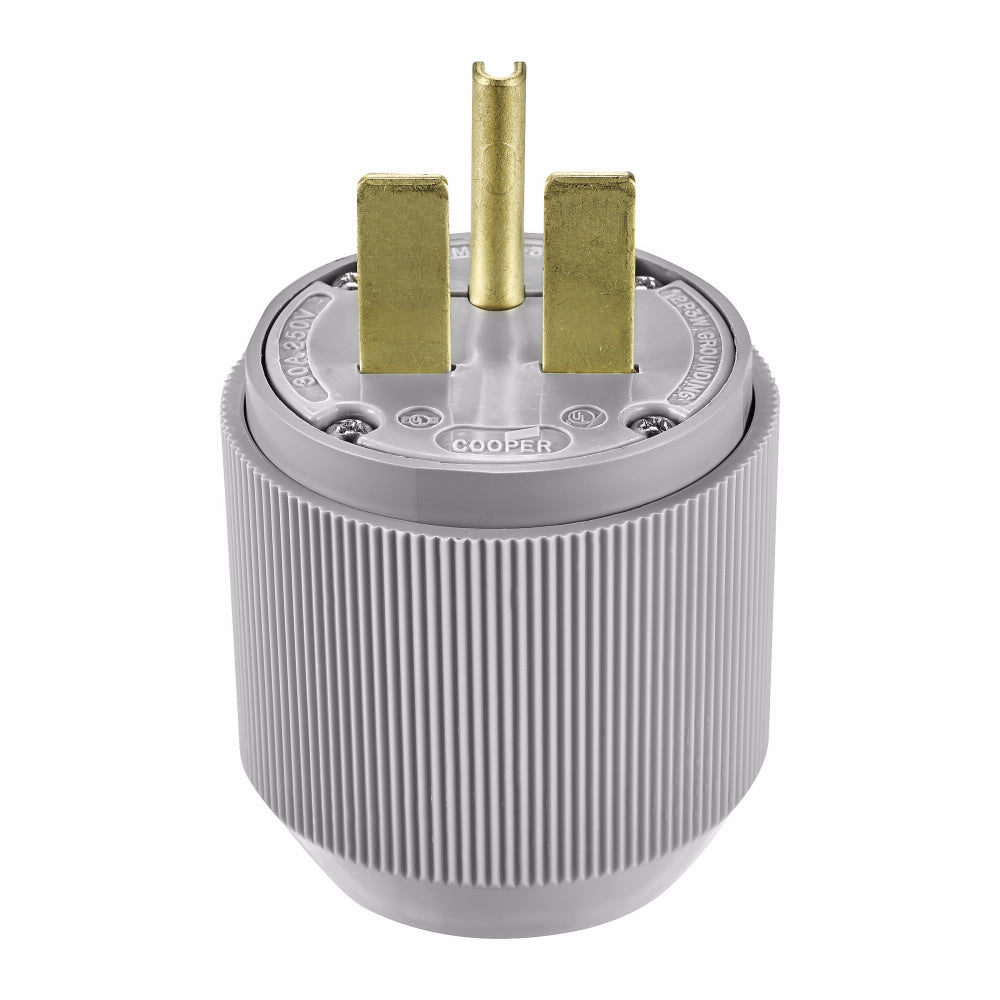

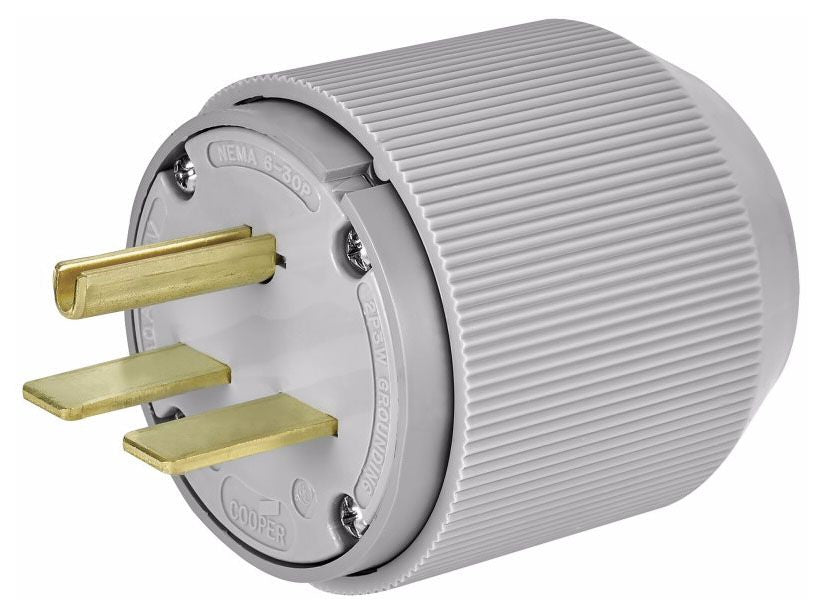

The EATON 5701N is a straight blade power plug with a NEMA 6-30P configuration. Rated at 250 VAC and 30 Ampere, this plug features a grounding type and is constructed from nylon. Suitable for industrial applications, it accommodates wire sizes from 18 to 12 AWG with back wiring.

• Straight Blade Power Plug
• NEMA 6-30P Configuration
• Industrial Application

Product Highlights

This power plug is designed for industrial use, featuring robust construction and reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 5701N
• Country of Origin: MEX

Technical Specifications

• Type: Straight
• Configuration: 6-30P
• Voltage Rating: 250 VAC
• Current Rating: 30 Ampere
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Cord Size: 0.43 to 1.31 Inch
• Approval: UL 498, CSA C22.2
• Application: Industrial
• Wire Size: 18 to 12 AWG
• Wiring Type: Back
• Flammability Rating: UL 94 V-2
• Temperature Rating: -40 to 75 Deg C
• Manufacturer: EATON
• Model / MPN: 5701N
• Amperage Rating: 30 A
• Cord Diameter: 0.425 to 1.31 in
• Grade: Commercial/Industrial
• NEMA Rating: NEMA 6-30P
• Standards/Approvals: CSA Certified|UL Listed
• Terminal Type: Back Wire/Threaded
• Device type: Plug
• Contact material: Brass
• Device grade: Extra heavy-duty industrial specification grade
• Wiring method: Back wire
• Style type: Power, Straight body
• Connection type: Screw
• Design type: Straight blade
• Face/body material: Nylon
• Receptacle type: Two-pole, three-wire, grounding
• Voltage: 250 Volts
• Connector Type: Plug, Male Blades
• Amperage: 30 Amps
• Specification Met: NEMA
• Product Series: Industrial Grade
• Family Series: Eaton Plugs & Receptacles, Industrial Grade Series
• Body Type: Straight
• NEMA Configuration: 6-30P
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Category: Connectors, Interconnects
• AC Power Connectors: Plugs and Receptacles
• Manufacturer Part Number: 5701N
• Series: 5701
• Packaging: Bulk
• Part Status: Active
• Connector Style: NEMA 6-30P
• Current Rating (Amps): 30A
• Voltage Rating (Amps): 250VAC
• Number of Positions: 3
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Features: -
• Product Length/Depth: 6.938 in
• Product Height: 3.375 in
• Product Width: 3.61 in
