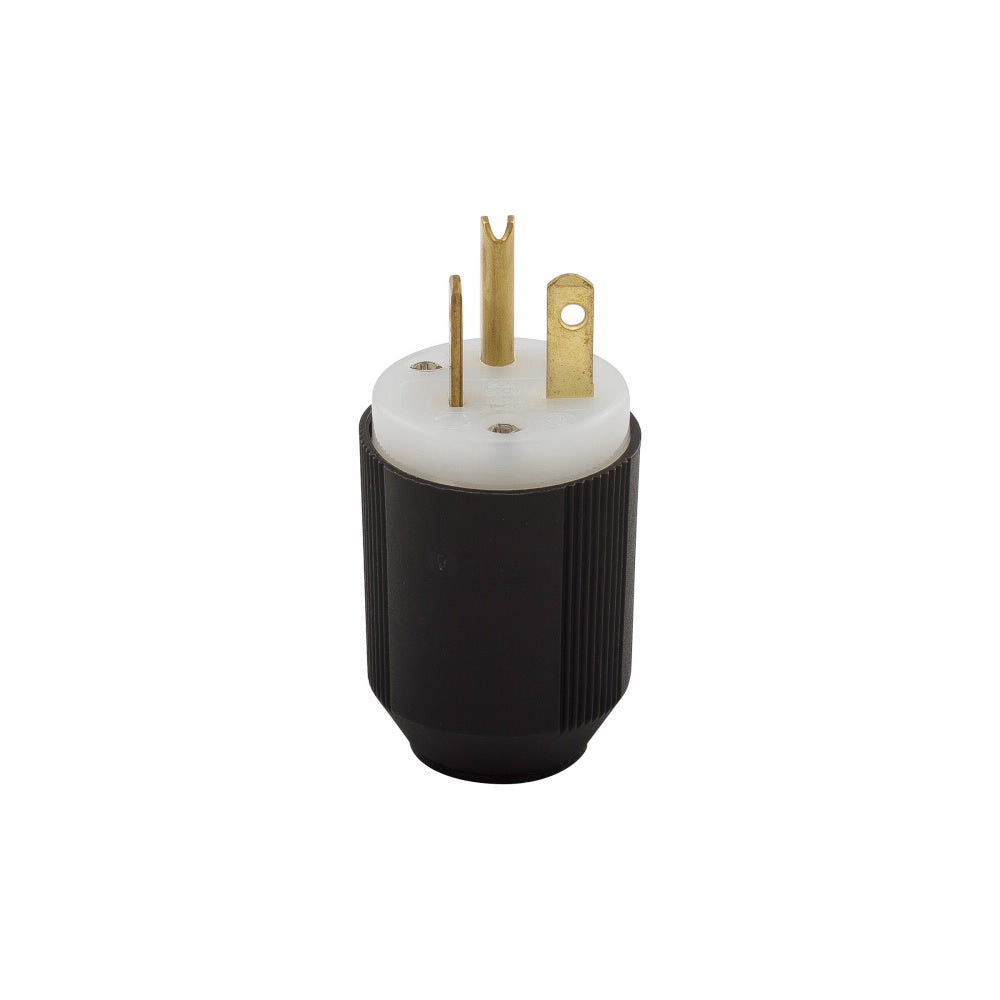

Eaton 5466N EWD 5466N Plug 20A 250V 2P3W Str Au

Product Description

The Eaton 5466N is an EWD straight blade plug designed for heavy-duty applications. This plug operates at a voltage of two hundred fifty volts with a current rating of twenty amps. It is suitable for use with wire sizes ranging from eighteen to twelve AWG. The plug features a two-pole, three-wire grounding configuration and includes a back wire screw terminal for easy installation.

• NEMA rating of 6-20P.
• Suitable for indoor use in industrial environments.
• Compatible with cords measuring from zero point thirty-three to zero point sixty-six inches in diameter.

Product Highlights

The Eaton 5466N plug offers a reliable connection while ensuring safety and durability in demanding conditions.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: 5466N

Technical Specifications

• Voltage Rating: 250 Volt
• Amperage Rating: 20 Amp
• Material: Nylon
• Color: Black/White
• Dimensions: 1.51 inches diameter
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Back Wire/Screw
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.33 to 0.66 inches
• NEMA Rating: NEMA 6-20P
• Standards/Approvals: UL Listed, NOM Certified
