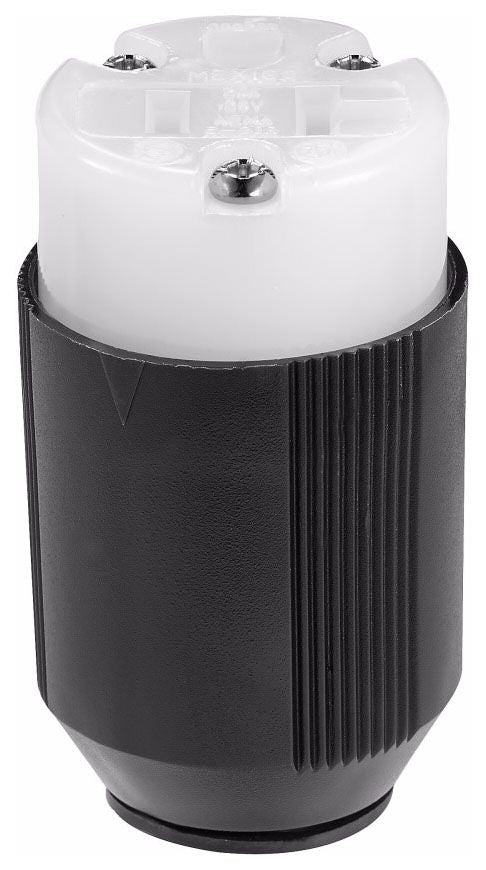

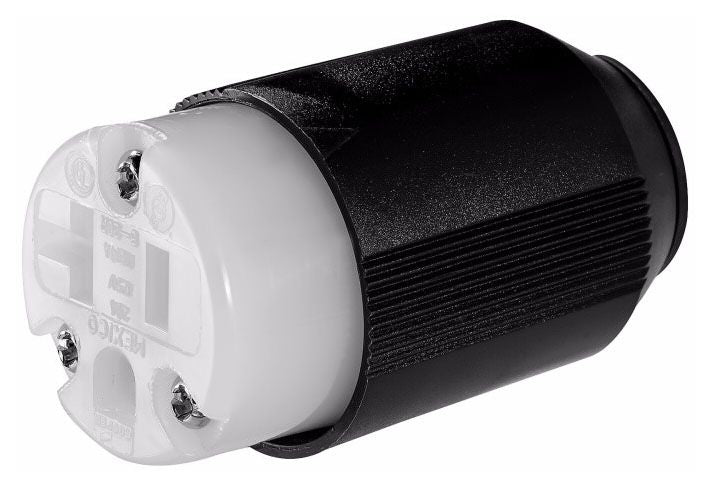

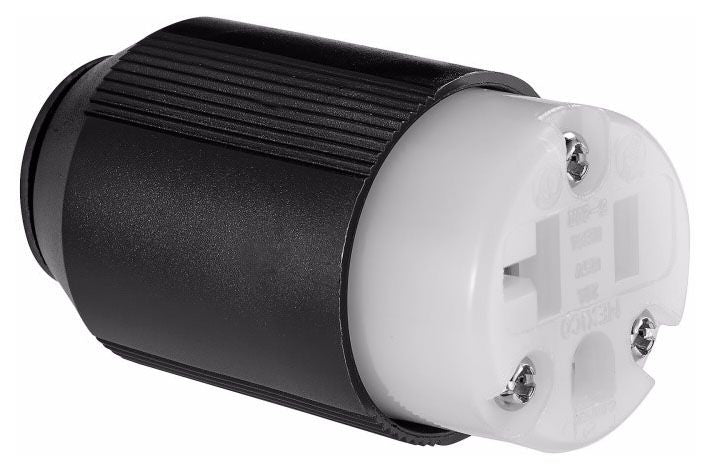

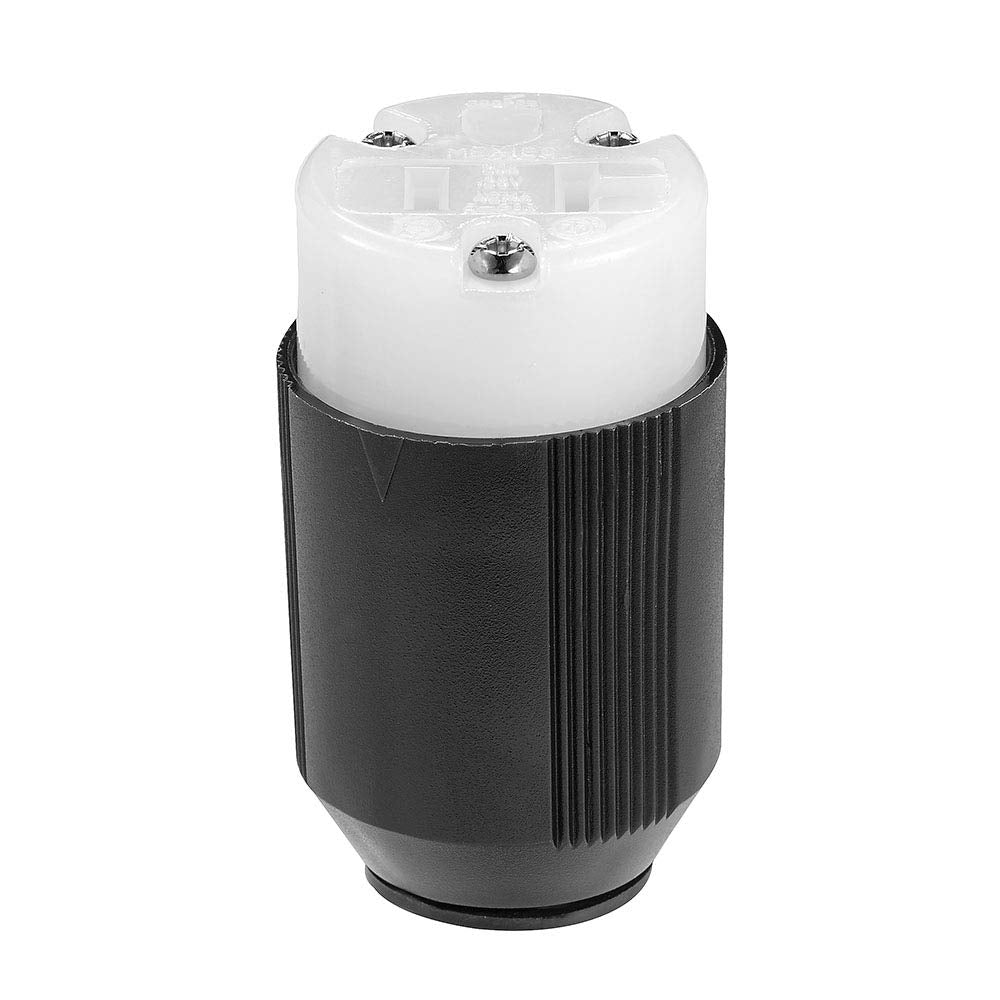

Eaton 5369N Connector 20A 125V 2P3W Straight Auto Grip

Product Description

The Eaton 5369N autogrip connector is an ideal connector receptacle for commercial or industrial applications. The auto grip clamp design secures cords during assembly, reducing installation time. Tapered, individual wire pockets guide stranded wire into contact area for easier installation. This straight blade connector is rated for 20A and 125V.

• Auto grip design
• Rugged nylon body resists impact
• Straight blade

Product Highlights

The Eaton 5369N connector features an auto grip design and a rugged nylon body, ideal for industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 5369N
• Country of Origin: MEX

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Poles: Two-pole
• Wires: 3
• Grounding: Grounding
• Wiring: Back wire
• Material: Nylon
• Connector Type: Straight blade connector
• AWG: #16-12
• Grade: Industrial
• NEMA Rating: NEMA 5-20
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Cord Diameter: 0.25 to 0.656 in
• Standards/Approvals: cULus Listed|NAFTA Compliant
• Number of Poles: 2
• Number of Wires: 3
• Connection Type: Screw
• Device Type: Straight Blade Connector
• Installation Area: Indoor
