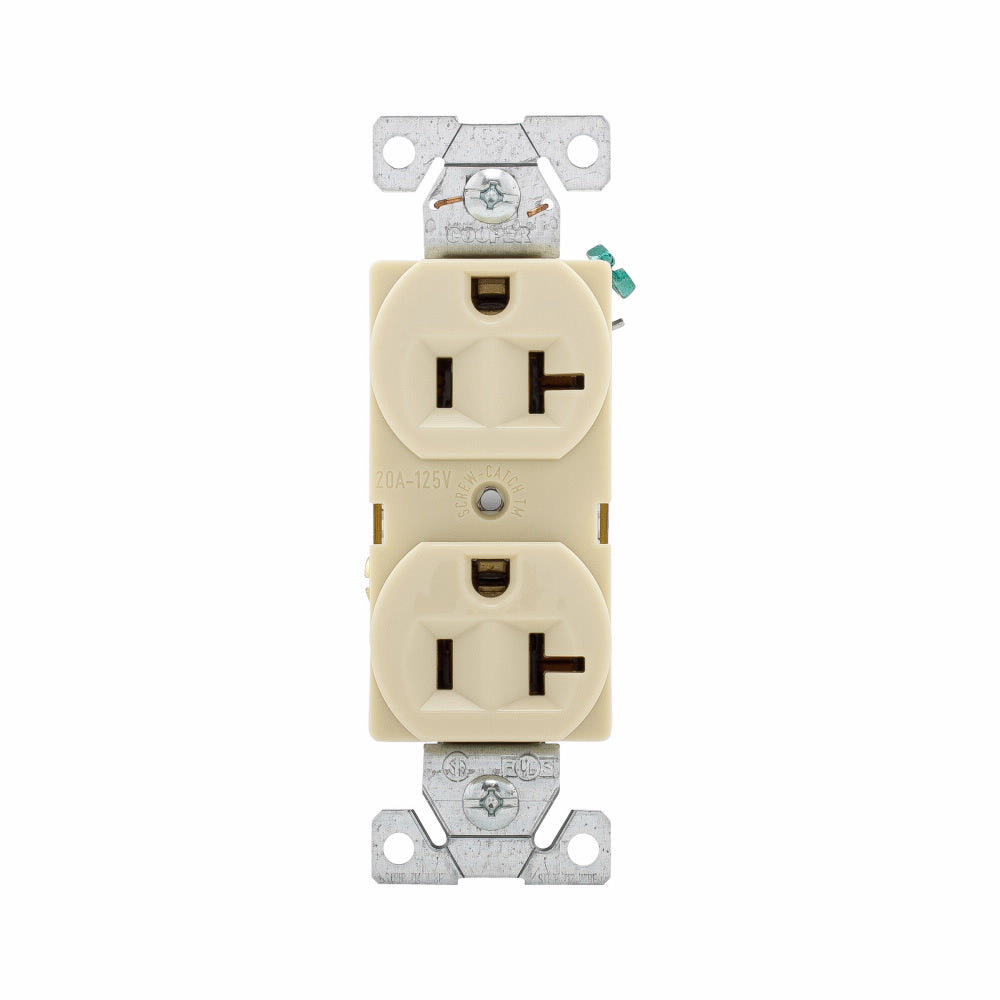

Eaton 5362V Duplex Straight Blade Receptacle 125 VAC 20 A 2 Poles 3 Wires NEMA 5-20R

Product Description

The Eaton 5362V is a duplex straight blade receptacle designed for safe and reliable electrical connections. Operating at 125 VAC with a current rating of 20 A, this receptacle is perfect for non-residential applications. It features a two-pole and three-wire configuration, meeting the NEMA 5-20R standards, making it suitable for various electrical devices and installations.

• Amperage Rating: 20 A
• NEMA Rating: 5-20R
• Temperature Rating: -20 to 70 degrees Celsius

Product Highlights

This receptacle is engineered with a high impact-resistant thermoplastic mounting strap, ensuring durability and reliability in installation tasks. It includes built-in wire strippers for convenience, and the automatic grounding system provides an added level of safety by eliminating the need for a bonding jumper.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Duplex

Technical Specifications

• Application: Non-Residential Applications
• Color: Ivory
• Dimensions: 4.19 inches high x 1.32 inches wide x 0.88 inches deep
• Grade: Commercial/Construction
• Material: Nylon
• Standards/Approvals: UL 498, cULus Listed, Federal Specification W-C-596G
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
