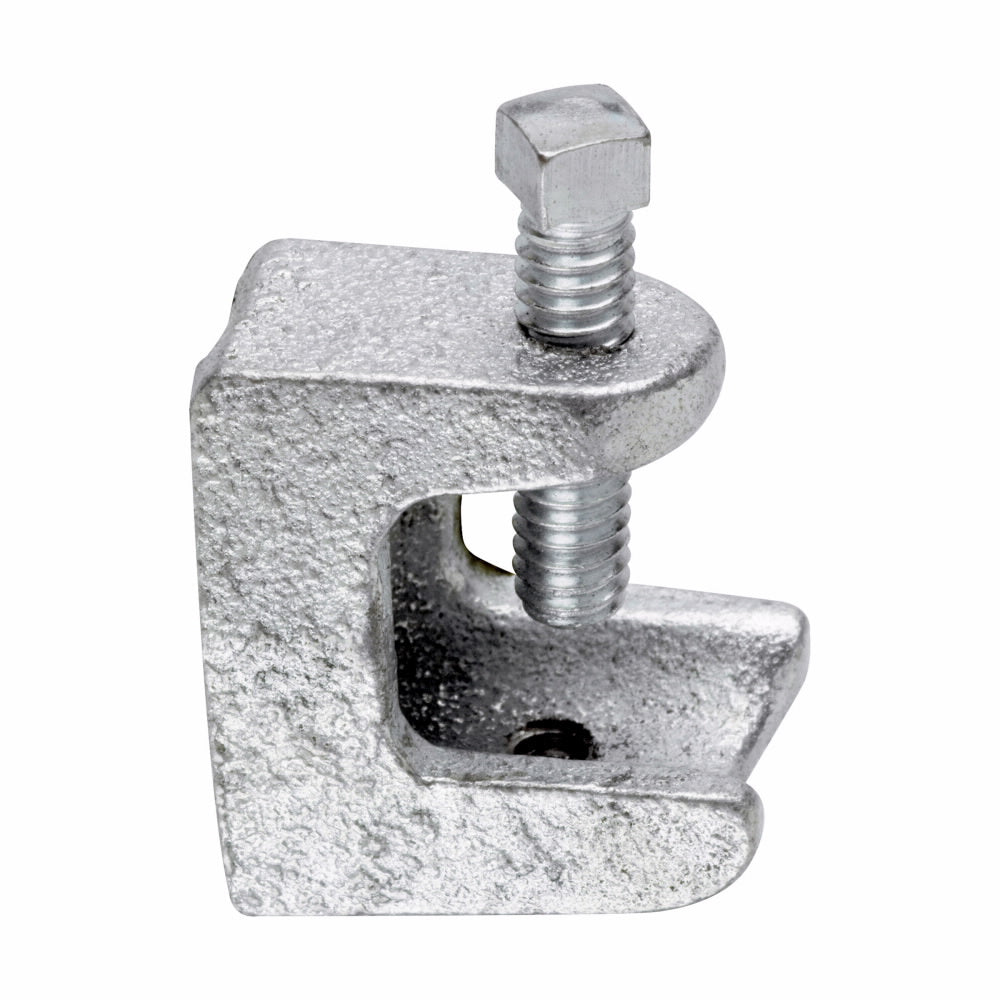

Eaton 532 Beam Clamp/Insulator Support 5/16-18 Tap

Product Description

The Eaton 532 beam clamp is designed to provide reliable support in rigid and intermediate metal conduit systems. This clamp includes a one and a half inch base size and a three-quarter inch jaw opening, suitable for various applications within commercial and institutional settings.

• Compatible with rigid and IMC conduit systems.
• Constructed of malleable iron for durability.
• Features 5/16-18 tapped holes for easy installation.

Product Highlights

This clamp is particularly effective in supporting insulators and conduits, ensuring proper installation in a variety of settings. Ideal for use in commercial or institutional buildings.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Base Size: 1-1/2 inches
• Jaw Opening Size: 3/4 inch
• Material: Malleable Iron
• Finish: Zinc Plated
• Weight: 0.3 lbs
• Standards: UL; CUL
• Load Capacity: 290 lbs
• Dimensions: 1.47 x 1.48 x 1.57 inches
