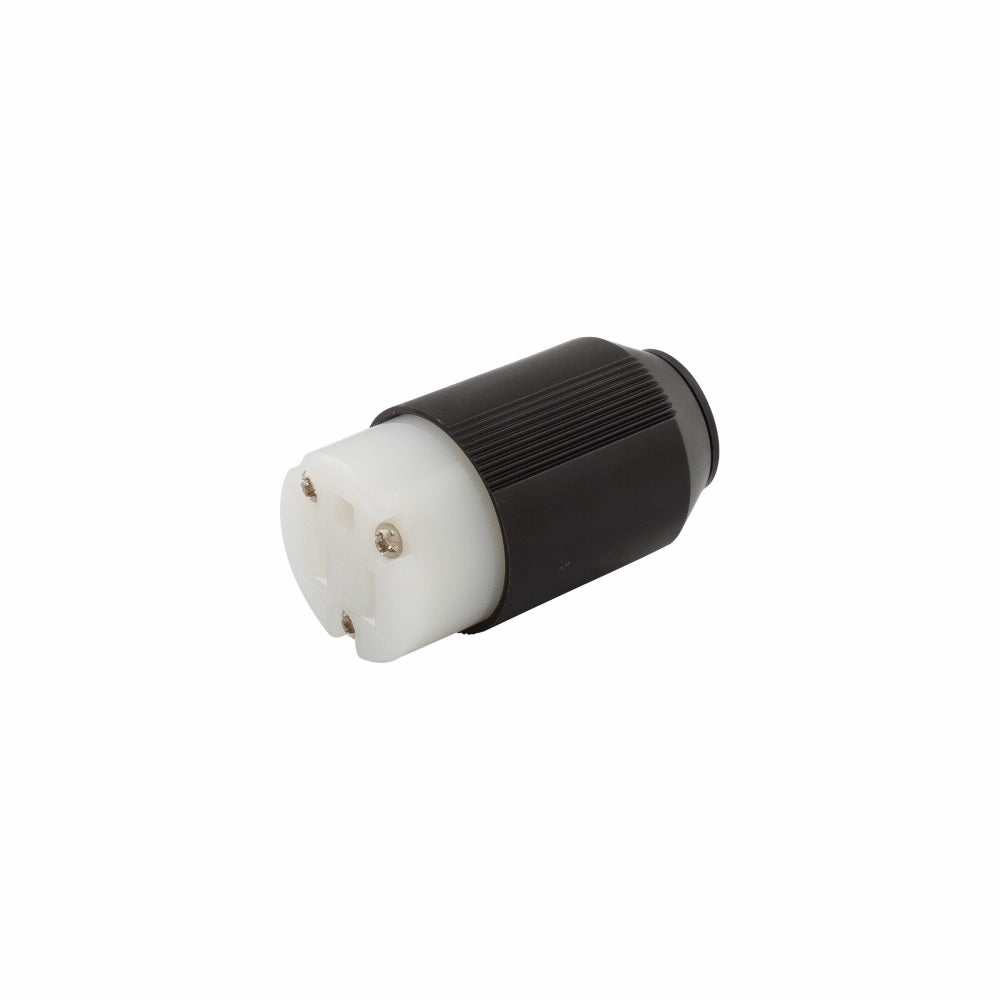

EATON 5269N CWD IND.SPEC.CONN.2P3W 15A 125V 5-15R AUTOGRIP

Product Description

EATON 5269N is a Straight Blade Connector designed for industrial applications. It operates at 125 volts and has an amperage rating of fifteen. The unit features two poles and three wires, conforming to the NEMA 5-15 standard. The AutoGrip design allows for ease of use while securing the cord, which enhances safety and reliability in various environments.

• AutoGrip clamp design reduces installation time
• Rugged nylon body resists impact and chemicals
• Neoprene gasket seals cord for terminal protection

Product Highlights

This connector is built to withstand harsh conditions while ensuring optimal electrical connectivity.

Product Information

Standard Information

• Manufacturer: Eaton
• Voltage Rating: 125 VAC

Technical Specifications

• Amperage Rating: 15 A
• NEMA Rating: NEMA 5-15
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.33 to 0.66 inches
• Temperature Rating: -40 to 75 degrees C
• Material: Nylon
• Dimensions: 1.51 inches Diameter
