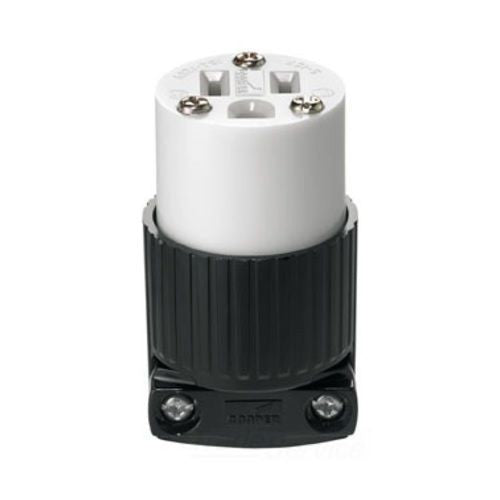

Eaton 5269 Arrow Hart Ultra Grip Straight Blade Connector 125 VAC, 15 A, 2 Poles, 3 Wires

Product Description

The EATON 5269 Arrow Hart Ultra Grip Straight Blade Connector is an industrial specification grade connector designed for quick and easy installation. This 2-pole, 3-wire connector is rated for 125 VAC and 15 A. It features an AutoGrip clamp design to secure the cord during assembly, reducing installation time.

• AutoGrip clamp design secures cord during assembly, reducing installation time
• Rugged nylon body resists impact and exposure to chemicals
• Neoprene gasket seals around cord for added terminal protection from external elements

Product Highlights

This straight blade connector offers reliable performance in tough industrial environments with its rugged design and ease of installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 5269

Technical Specifications

• Grade: Commercial
• Amperage Rating: 15 A
• Temperature Rating: -40 to 75 deg C
• Number Of Poles: 2
• NEMA Rating: NEMA 5-15
• Number of Wires: 3
• Cord Diameter: 0.33 - 0.66 in
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Material: Polycarbonate
• UNSPSC: 39121402
• Vendor SKU: 5269
• UPC: 032664392405
• Standard & Approvals: cULus Listed, FULS Listed, RoHS Complaint
• Manufacturer: EATON
• Brand: EATON
• Allowable wire size: #18-12 AWG
• Application: Industrial
• Connection type: Screw
• Cord range: 0.33-0.66" in diameter
• Design type: Straight blade
• Device grade: Extra heavy-duty industrial specification grade
• Device type: Connector
• Receptacle type: Two-pole, three-wire, grounding
• Style type: Straight body
• Type: Polarized
• Product Length/Depth: 1.91 in
• Product Height: 4.13 in
• Product Width: 1.78 in
• Certifications: UL NOM Federal Specification Classification 6221 02
• Wiring method: Back wire
• Contact material: Brass
• Face/body material: Nylon
• Packaging type: Core pack
• Operating Temperature: -40 to 70 deg C
• Current Rating: 15 A
• NEMA Configuration: NEMA 5-15
